AE112

Toyota COROLLA · 1997 · 3,598 parts · 220 categories

← Back to categories

3,598 items

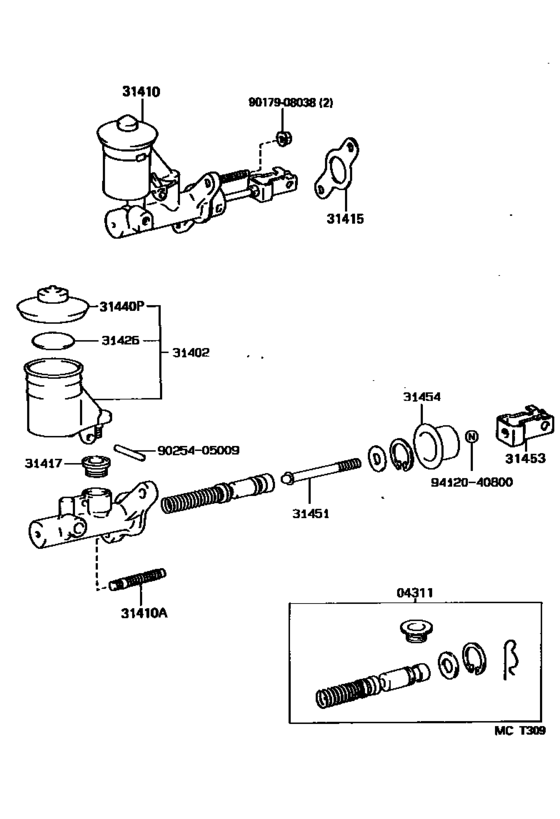

Clutch Master Cylinder ([05.1995 - ] (9505- )AE11#,EE11#..MTM ; (9704- )CE110.. LHD ; (0005- )ZZE11#..5F) 14

#	OEM	Part name
4311	04311-12110	Cylinder Kit, Clutch Master
31402	31402-12050	Reservoir Sub-Assy, Clutch Master Cylinder
31410	31410-12381	Cylinder Assy, Clutch Master
31410	90116-08146	Bolt(For Clutch Master Cylinder Setting)
31415	31415-10010	Gasket, Clutch Master Cylinder
31417	31417-35010	Grommet
31426	31426-22020	Float, Clutch Master Cylinder Reservoir
31440	47230-20040	Cap, Clutch Master Cylinder Reservoir Filler
31451	31451-35080	Rod, Clutch Master Cylinder Push
31453	31404-17010	Clevis, Clutch Master Cylinder Push Rod
31454	31454-14010	Boot, Clutch Master Cylinder
9017908038	90179-08038	Nut
9025405009	90254-05009	New Genuine Part
9412040800	94120-40800	Nut(For Clutch Pedal Stopper)

OEM	Part name	Category
04311-12110	Cylinder Kit, Clutch Master	Clutch Master Cylinder ([05.1995 - ] (9505- )AE11#,EE11#..MTM ; (9704- )CE110.. LHD ; (0005- )ZZE11#..5F)
31402-12050	Reservoir Sub-Assy, Clutch Master Cylinder	Clutch Master Cylinder ([05.1995 - ] (9505- )AE11#,EE11#..MTM ; (9704- )CE110.. LHD ; (0005- )ZZE11#..5F)
31404-17010	Clevis, Clutch Master Cylinder Push Rod	Clutch Master Cylinder ([05.1995 - ] (9505- )AE11#,EE11#..MTM ; (9704- )CE110.. LHD ; (0005- )ZZE11#..5F)
31410-12381	Cylinder Assy, Clutch Master	Clutch Master Cylinder ([05.1995 - ] (9505- )AE11#,EE11#..MTM ; (9704- )CE110.. LHD ; (0005- )ZZE11#..5F)
31415-10010	Gasket, Clutch Master Cylinder	Clutch Master Cylinder ([05.1995 - ] (9505- )AE11#,EE11#..MTM ; (9704- )CE110.. LHD ; (0005- )ZZE11#..5F)
31417-35010	Grommet	Clutch Master Cylinder ([05.1995 - ] (9505- )AE11#,EE11#..MTM ; (9704- )CE110.. LHD ; (0005- )ZZE11#..5F)
31426-22020	Float, Clutch Master Cylinder Reservoir	Clutch Master Cylinder ([05.1995 - ] (9505- )AE11#,EE11#..MTM ; (9704- )CE110.. LHD ; (0005- )ZZE11#..5F)
31451-35080	Rod, Clutch Master Cylinder Push	Clutch Master Cylinder ([05.1995 - ] (9505- )AE11#,EE11#..MTM ; (9704- )CE110.. LHD ; (0005- )ZZE11#..5F)
31454-14010	Boot, Clutch Master Cylinder	Clutch Master Cylinder ([05.1995 - ] (9505- )AE11#,EE11#..MTM ; (9704- )CE110.. LHD ; (0005- )ZZE11#..5F)
47230-20040	Cap, Clutch Master Cylinder Reservoir Filler	Clutch Master Cylinder ([05.1995 - ] (9505- )AE11#,EE11#..MTM ; (9704- )CE110.. LHD ; (0005- )ZZE11#..5F)
90116-08146	Bolt(For Clutch Master Cylinder Setting)	Clutch Master Cylinder ([05.1995 - ] (9505- )AE11#,EE11#..MTM ; (9704- )CE110.. LHD ; (0005- )ZZE11#..5F)
90179-08038	Nut	Clutch Master Cylinder ([05.1995 - ] (9505- )AE11#,EE11#..MTM ; (9704- )CE110.. LHD ; (0005- )ZZE11#..5F)
90254-05009	New Genuine Part	Clutch Master Cylinder ([05.1995 - ] (9505- )AE11#,EE11#..MTM ; (9704- )CE110.. LHD ; (0005- )ZZE11#..5F)
94120-40800	Nut(For Clutch Pedal Stopper)	Clutch Master Cylinder ([05.1995 - ] (9505- )AE11#,EE11#..MTM ; (9704- )CE110.. LHD ; (0005- )ZZE11#..5F)
