Search › Model › AE111

AE111

Toyota COROLLA · 1995 · 4,799 parts · 277 categories

4,799 items

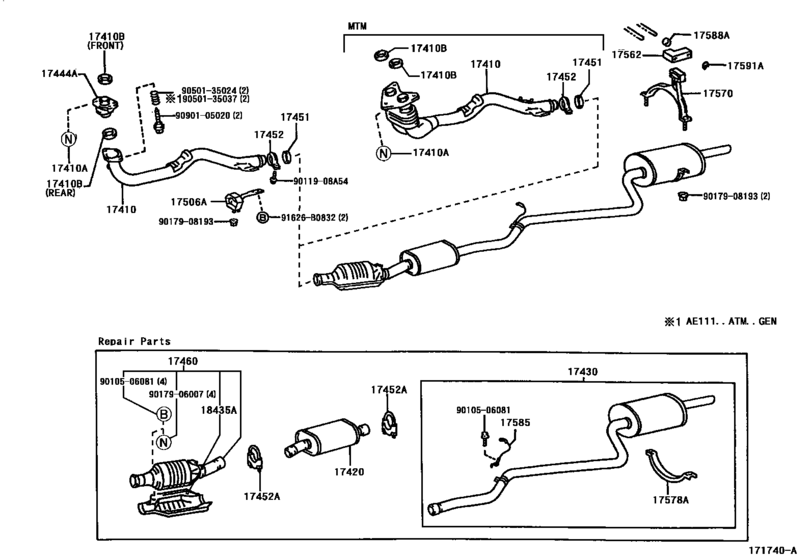

Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN) 47

#	OEM	Part name
17410	17410-1A330	Pipe Assy, Exhaust, Front
17410	17410-1A480	Pipe Assy, Exhaust, Front
17410	17410-1A481	Pipe Assy, Exhaust, Front
17410	17410-1A490	Pipe Assy, Exhaust, Front
17410	17410-1A550	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	17451-16030	Gasket, Exhaust Pipe
17410	17451-16040	Gasket, Exhaust Pipe
17410	90917-06064	Gasket, Exhaust Pipe
17410	90917-06065	Gasket, Exhaust Pipe
17420	17420-11340	Pipe Assy, Exhaust, Center
17420	17420-16720	Pipe Assy, Exhaust, Center
17420	17420-16730	Pipe Assy, Exhaust, Center
17430	17430-11821	Pipe Assy, Exhaust, Tail
17430	17430-1A601	Pipe Assy, Exhaust, Tail
17430	17430-1A602	Pipe Assy, Exhaust, Tail
17430	17430-1D010	Pipe Assy, Exhaust, Tail
17430	17430-1D011	Pipe Assy, Exhaust, Tail
17444	17444-16050	Spacer, Exhaust Front Pipe
17451	90917-06082	Gasket, Exhaust Pipe, Center
17451	90917-06084	Gasket, Exhaust Pipe
17452	90461-15013	Clamp, Exhaust Pipe
17452	90461-15016	Clamp, Exhaust Pipe
17452	17452-16120	Clamp, Exhaust Pipe
17452	17452-16160	Clamp, Exhaust Pipe
17460	17460-16170	Converter Assy, Catalytic W/pipe
17460	17460-16180	Converter Assy, Catalytic W/pipe
17506	17506-11100	Bracket Sub-Assy, Exhaust Pipe No.1 Support
17562	17562-16240	Support, Exhaust Pipe, No.2
17570	17570-16020	Bracket Assy, Exhaust Pipe Support
17578	17578-11030	Clamp, Muffler
17585	17585-16060	Hanger, Exhaust Pipe
17588	17588-16020	Spacer, Exhaust Pipe Hanger
17591	17591-16020	Stopper, Exhaust Pipe Support
18435	18435-16190	Protector, Monolithic Converter
18435	18435-20020	Protector, Catalytic Converter
91626	91626-B0832	New Genuine Part
91626	91651-B0830	New Genuine Part
9011908	90119-08A54	BOLT WWASHER
9010506081	90105-06081	BOLT FLANGE
9010506081	91511-B0614	BOLT, FLANGE
9017906007	90179-06007	Nut
9017908193	90179-08193	NUT
9050135024	90501-35024	SPRING COMPRESSION
9050135037	90501-35037	Spring, Exhaust Pipe
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)

OEM	Part name	Category
17410-1A330	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17410-1A480	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17410-1A481	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17410-1A490	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17410-1A550	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17420-11340	Pipe Assy, Exhaust, Center	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17420-16720	Pipe Assy, Exhaust, Center	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17420-16730	Pipe Assy, Exhaust, Center	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17430-11821	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17430-1A601	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17430-1A602	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17430-1D010	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17430-1D011	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17444-16050	Spacer, Exhaust Front Pipe	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17451-16030	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17451-16040	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17452-16120	Clamp, Exhaust Pipe	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17452-16160	Clamp, Exhaust Pipe	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17460-16170	Converter Assy, Catalytic W/pipe	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17460-16180	Converter Assy, Catalytic W/pipe	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17506-11100	Bracket Sub-Assy, Exhaust Pipe No.1 Support	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17562-16240	Support, Exhaust Pipe, No.2	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17570-16020	Bracket Assy, Exhaust Pipe Support	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17578-11030	Clamp, Muffler	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17585-16060	Hanger, Exhaust Pipe	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17588-16020	Spacer, Exhaust Pipe Hanger	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
17591-16020	Stopper, Exhaust Pipe Support	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
18435-16190	Protector, Monolithic Converter	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
18435-20020	Protector, Catalytic Converter	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
90105-06081	BOLT FLANGE	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
90119-08A54	BOLT WWASHER	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
90179-06007	Nut	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
90179-08193	NUT	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
90461-15013	Clamp, Exhaust Pipe	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
90461-15016	Clamp, Exhaust Pipe	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
90501-35024	SPRING COMPRESSION	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
90917-06064	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
90917-06065	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
90917-06082	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
90917-06084	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
91511-B0614	BOLT, FLANGE	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
91626-B0832	New Genuine Part	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
91651-B0830	New Genuine Part	Exhaust Pipe ([08.1998 - ] W(CONVERTER):TYPE B (9808- )4AFE..RHD..GEN)
