Search › Model › AE109

AE109

Toyota COROLLA · 1996 · 4,990 parts · 250 categories

4,990 items

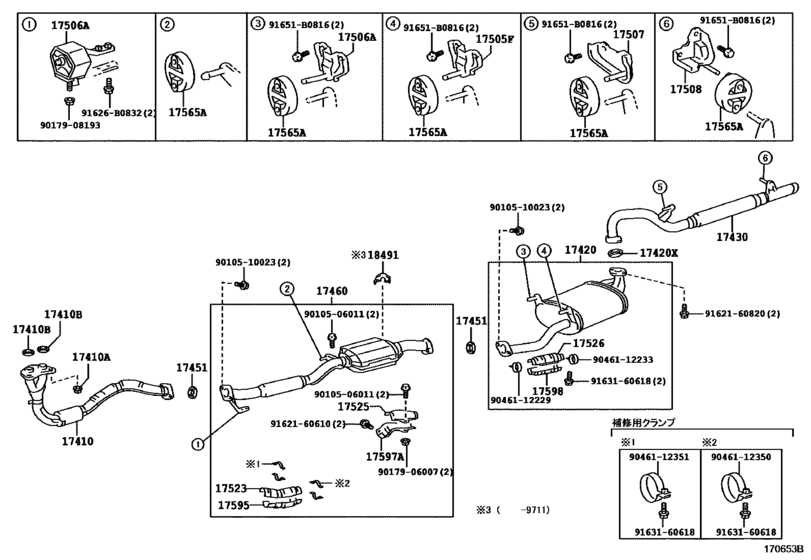

Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109) 46

#	OEM	Part name
17410	17410-1A240	Pipe Assy, Exhaust, Front
17410	17410-1A520	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06064	Gasket, Exhaust Pipe
17420	17420-16700	Pipe Assy, Exhaust, Center
17420	90917-06039	Gasket, Exhaust Pipe
17430	17430-1A730	Pipe Assy, Exhaust, Tail
17460	17460-16140	Converter Assy, Catalytic W/pipe
17460	17460-16160	Converter Assy, Catalytic W/pipe
17460	17460-16210	Converter Assy, Catalytic W/pipe
17505	17505-64060	Support Sub-Assy, Exhaust Pipe
17506	17506-16100	Bracket Sub-Assy, Exhaust Pipe No.1 Support
17506	17506-16130	Bracket Sub-Assy, Exhaust Pipe No.1 Support
17506	17506-64020	Bracket Sub-Assy, Exhaust Pipe No.1 Support
17507	17507-11050	Bracket Sub-Assy, Exhaust Pipe No.2 Support
17508	17508-64040	Support Sub-Assy, Exhaust Pipe, No.3
17523	17523-16210	Protector, Exhaust Pipe, Upper No.3
17523	17523-16220	Protector, Exhaust Pipe, Upper No.3
17525	17525-16020	Protector, Exhaust Pipe, Upper No.5
17526	17526-16050	Protector, Exhaust Pipe, Upper No.6
17565	17565-11160	Support, Exhaust Pipe, No.1
17565	17565-15140	Bolt Or Ring, Exhaust Tail Pipe (For Front)
17595	17595-16350	Protector, Exhaust Pipe, Lower No.3
17595	17595-16380	Protector, Exhaust Pipe, Lower No.3
17597	17597-16060	Protector, Exhaust Pipe, Lower No.5
17598	17598-16040	Protector, Exaust Pipe, Lower No.6
18491	18491-16020	Flange, Thermosensor Inlet
91626	91626-B0832	New Genuine Part
91626	91651-B0830	New Genuine Part
91651	91651-B0816	New Genuine Part
9010506011	90105-06011	BOLT
9010510023	90105-10023	Bolt
9010510023	91512-81035	BOLT
9017906007	90179-06007	Nut
9017908193	90179-08193	NUT
9046112229	90461-12229	Clamp
9046112233	90461-12233	Clamp
9046112350	90461-12350	Clamp, Exhaust Pipe
9046112351	90461-12351	New Genuine Part
9162160610	91621-60610	New Genuine Part
9162160610	91651-B0612	Bolt
9162160820	91621-60820	New Genuine Part
9162160820	91651-B0822	BOLT WWASHER
9163160618	91631-60618	BOLT WWASHER
9163160618	91631-B0618	BOLT WWASHER

OEM	Part name	Category
17410-1A240	Pipe Assy, Exhaust, Front	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17410-1A520	Pipe Assy, Exhaust, Front	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17420-16700	Pipe Assy, Exhaust, Center	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17430-1A730	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17460-16140	Converter Assy, Catalytic W/pipe	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17460-16160	Converter Assy, Catalytic W/pipe	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17460-16210	Converter Assy, Catalytic W/pipe	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17505-64060	Support Sub-Assy, Exhaust Pipe	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17506-16100	Bracket Sub-Assy, Exhaust Pipe No.1 Support	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17506-16130	Bracket Sub-Assy, Exhaust Pipe No.1 Support	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17506-64020	Bracket Sub-Assy, Exhaust Pipe No.1 Support	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17507-11050	Bracket Sub-Assy, Exhaust Pipe No.2 Support	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17508-64040	Support Sub-Assy, Exhaust Pipe, No.3	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17523-16210	Protector, Exhaust Pipe, Upper No.3	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17523-16220	Protector, Exhaust Pipe, Upper No.3	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17525-16020	Protector, Exhaust Pipe, Upper No.5	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17526-16050	Protector, Exhaust Pipe, Upper No.6	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17565-11160	Support, Exhaust Pipe, No.1	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17565-15140	Bolt Or Ring, Exhaust Tail Pipe (For Front)	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17595-16350	Protector, Exhaust Pipe, Lower No.3	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17595-16380	Protector, Exhaust Pipe, Lower No.3	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17597-16060	Protector, Exhaust Pipe, Lower No.5	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
17598-16040	Protector, Exaust Pipe, Lower No.6	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
18491-16020	Flange, Thermosensor Inlet	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
90105-06011	BOLT	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
90105-10023	Bolt	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
90179-06007	Nut	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
90179-08193	NUT	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
90461-12229	Clamp	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
90461-12233	Clamp	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
90461-12350	Clamp, Exhaust Pipe	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
90461-12351	New Genuine Part	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
90917-06039	Gasket, Exhaust Pipe	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
90917-06064	Gasket, Exhaust Pipe	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
91512-81035	BOLT	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
91621-60610	New Genuine Part	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
91621-60820	New Genuine Part	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
91626-B0832	New Genuine Part	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
91631-60618	BOLT WWASHER	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
91631-B0618	BOLT WWASHER	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
91651-B0612	Bolt	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
91651-B0816	New Genuine Part	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
91651-B0822	BOLT WWASHER	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
91651-B0830	New Genuine Part	Exhaust Pipe ([04.1997 - ] (9704- )4AFE..AE109)
