AE109

Toyota COROLLA · 1996 · 4,990 parts · 250 categories

4,990 items

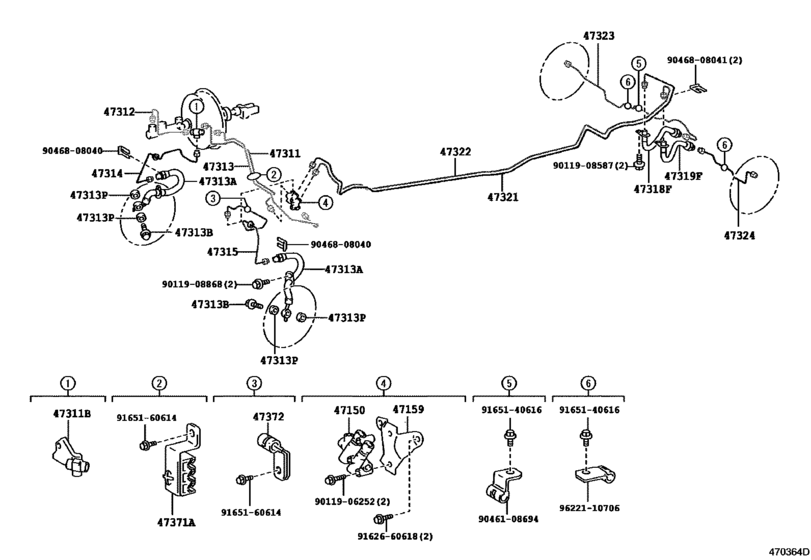

Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109) 46

#	OEM	Part name
47150	47150-12180	Valve Assy, Proportioning
47150	47150-12250	Valve Assy, Proportioning
47159	47159-12070	Bracket, Proportioning Valve
47311	47311-12560	Tube, Front Brake, No.1
47311	47311-12620	Tube, Front Brake, No.1
47311	47391-12010	Way, No.1(For Front Brake Tube)
47311	90412-10116	Way(For Front Brake Tube)
47312	47312-12330	Tube, Front Brake, No.2
47313	47313-12370	Tube, Front Brake, No.3
47313	47313-12430	Tube, Front Brake, No.3
47313	90947-02802	Hose, Flexible, No.1(For Front)
47313	90947-02803	Hose, Flexible, No.1(For Front)
47313	90947-02914	Hose, Flexible, No.1(For Front)
47313	90947-02917	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-50020	Gasket(For Front Flexible Hose)
47313	90430-10074	Gasket(For Oil Pressure Regulator)
47314	47314-12290	Tube, Front Brake, No.4
47315	47315-12450	Tube, Front Brake, No.5
47315	47315-12460	Tube, Front Brake, No.5
47318	90947-02909	Hose, Flexible(For Rear Rh)
47321	47321-13080	Tube, Rear Brake, No.1
47322	47322-13120	Tube, Rear Brake, No.2
47323	47323-13080	Tube, Rear Brake, No.3
47323	47323-13082	Tube, Rear Brake, No.3
47324	47324-13080	Tube, Rear Brake, No.4
47324	47324-13082	Tube, Rear Brake, No.4
47371	47371-12090	Clamp, Brake Tube, No.1
47371	47371-12100	Clamp, Brake Tube, No.1
47372	47372-12060	Clamp, Brake Tube, No.2
47372	90461-06119	Clamp, Brake Tube, No.2
9011906252	90119-06252	New Genuine Part
9011908587	90119-08587	New Genuine Part
9011908587	90129-08007	New Genuine Part
9011908868	90119-08868	BOLT WWASHER
9046108694	90461-08694	Clamp, Brake Tube, No.1
9046808040	90468-08040	CLIP
9046808041	90468-08041	New Genuine Part
9162660618	91626-60618	New Genuine Part
9162660618	91621-J0614	BOLT W-WASHER
9165140616	91651-40616	BOLT
9165140616	91621-60614	Bolt(For Transaxle & Engine Setting)
9165140616	90080-11395	New Genuine Part
9165160614	91651-60614	Bolt
9622110706	96221-10706	Clamp, Brake Tube, No.8

OEM	Part name	Category
47150-12180	Valve Assy, Proportioning	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47150-12250	Valve Assy, Proportioning	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47159-12070	Bracket, Proportioning Valve	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47311-12560	Tube, Front Brake, No.1	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47311-12620	Tube, Front Brake, No.1	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47312-12330	Tube, Front Brake, No.2	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47313-12370	Tube, Front Brake, No.3	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47313-12430	Tube, Front Brake, No.3	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47314-12290	Tube, Front Brake, No.4	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47315-12450	Tube, Front Brake, No.5	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47315-12460	Tube, Front Brake, No.5	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47321-13080	Tube, Rear Brake, No.1	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47322-13120	Tube, Rear Brake, No.2	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47323-13080	Tube, Rear Brake, No.3	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47323-13082	Tube, Rear Brake, No.3	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47324-13080	Tube, Rear Brake, No.4	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47324-13082	Tube, Rear Brake, No.4	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47371-12090	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47371-12100	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47372-12060	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
47391-12010	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
90080-11395	New Genuine Part	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
90119-06252	New Genuine Part	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
90119-08587	New Genuine Part	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
90129-08007	New Genuine Part	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
90412-10116	Way(For Front Brake Tube)	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
90461-06119	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
90461-08694	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
90468-08040	CLIP	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
90468-08041	New Genuine Part	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
90947-02802	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
90947-02803	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
90947-02909	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
90947-02914	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
90947-02917	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
91621-60614	Bolt(For Transaxle & Engine Setting)	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
91621-J0614	BOLT W-WASHER	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
91626-60618	New Genuine Part	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
91651-40616	BOLT	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
91651-60614	Bolt	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
96221-10706	Clamp, Brake Tube, No.8	Brake Tube & Clamp ([04.1997 - ] (9704- )AE109,CE105,109)
