AE102

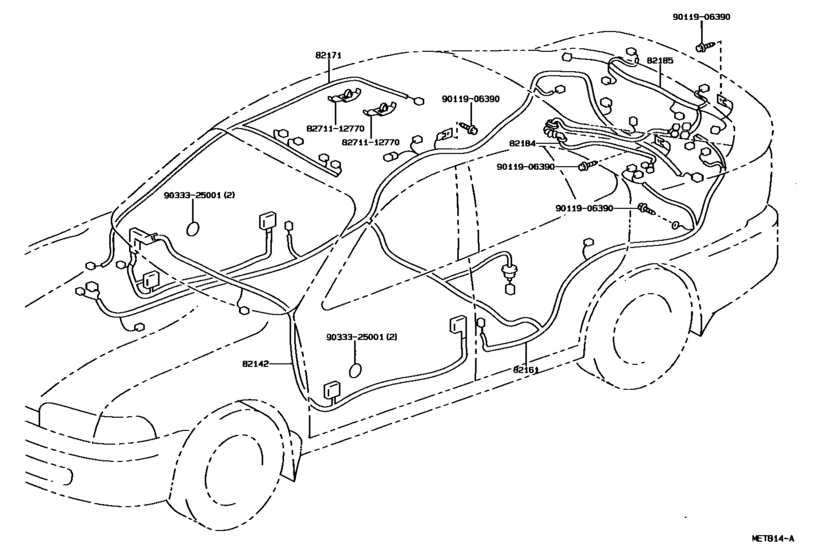

Wiring & Clamp ([05.1992 - ] FLOOR & ROOF (9205- )LB..RHD) 7
| # | OEM | Part name |
|---|---|---|
| 82142 | 82142-12270 | Wire, Instrument Panel, No.2 |
| 82171 | 82171-12460 | Wire, Roof, No.1 |
| 82184 | 82184-12430 | Wire, Back Door, No.1 |
| 82185 | 82185-12510 | Wire, Back Door, No.2 |
| 8271112770 | 82711-12770 | Wire, Fuse To Fuse(for Combustion Heater) |
| 9011906390 | 90119-06390 | BOLT WWASHER |
| 9033325001 | 90333-25001 | Plug, Hole(For Hood) |
| OEM | Part name | Category |
|---|---|---|
| 82142-12270 | Wire, Instrument Panel, No.2 | Wiring & Clamp ([05.1992 - ] FLOOR & ROOF (9205- )LB..RHD) |
| 82171-12460 | Wire, Roof, No.1 | Wiring & Clamp ([05.1992 - ] FLOOR & ROOF (9205- )LB..RHD) |
| 82184-12430 | Wire, Back Door, No.1 | Wiring & Clamp ([05.1992 - ] FLOOR & ROOF (9205- )LB..RHD) |
| 82185-12510 | Wire, Back Door, No.2 | Wiring & Clamp ([05.1992 - ] FLOOR & ROOF (9205- )LB..RHD) |
| 82711-12770 | Wire, Fuse To Fuse(for Combustion Heater) | Wiring & Clamp ([05.1992 - ] FLOOR & ROOF (9205- )LB..RHD) |
| 90119-06390 | BOLT WWASHER | Wiring & Clamp ([05.1992 - ] FLOOR & ROOF (9205- )LB..RHD) |
| 90333-25001 | Plug, Hole(For Hood) | Wiring & Clamp ([05.1992 - ] FLOOR & ROOF (9205- )LB..RHD) |
