AE102

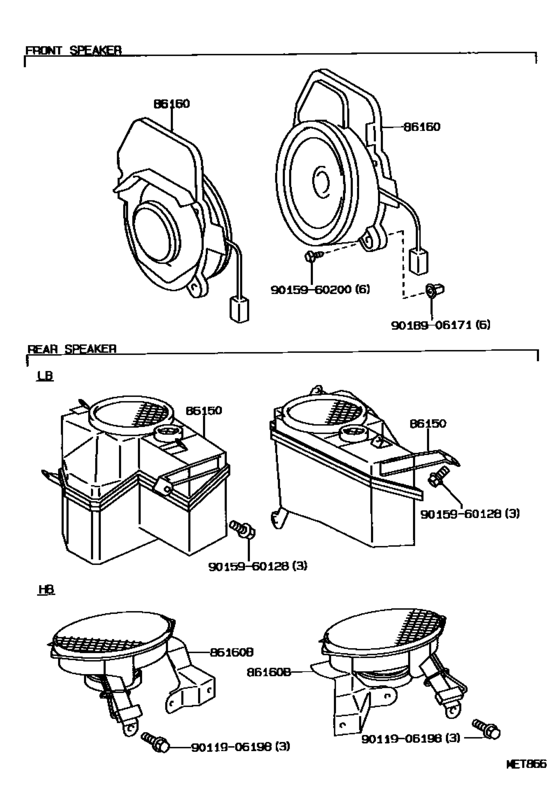

Speaker ([05.1992 - ] (9205- )) 8
| # | OEM | Part name |
|---|---|---|
| 86150 | 86150-12180 | Speaker Assy, W/box, No.1 |
| 86150 | 86150-12190 | Speaker Assy, W/box, No.1 |
| 86160 | 86160-12410 | Speaker Assy, Front No.1 |
| 86160 | 86160-12420 | Speaker Assy, Front No.1 |
| 9011906198 | 90119-06198 | New Genuine Part |
| 9015960128 | 90159-60128 | New Genuine Part |
| 9015960200 | 90159-60200 | SCREW |
| 9018906171 | 90189-06171 | GROMMET SCREW |
| OEM | Part name | Category |
|---|---|---|
| 86150-12180 | Speaker Assy, W/box, No.1 | Speaker ([05.1992 - ] (9205- )) |
| 86150-12190 | Speaker Assy, W/box, No.1 | Speaker ([05.1992 - ] (9205- )) |
| 86160-12410 | Speaker Assy, Front No.1 | Speaker ([05.1992 - ] (9205- )) |
| 86160-12420 | Speaker Assy, Front No.1 | Speaker ([05.1992 - ] (9205- )) |
| 90119-06198 | New Genuine Part | Speaker ([05.1992 - ] (9205- )) |
| 90159-60128 | New Genuine Part | Speaker ([05.1992 - ] (9205- )) |
| 90159-60200 | SCREW | Speaker ([05.1992 - ] (9205- )) |
| 90189-06171 | GROMMET SCREW | Speaker ([05.1992 - ] (9205- )) |
