Search › Model › AE102
AE102

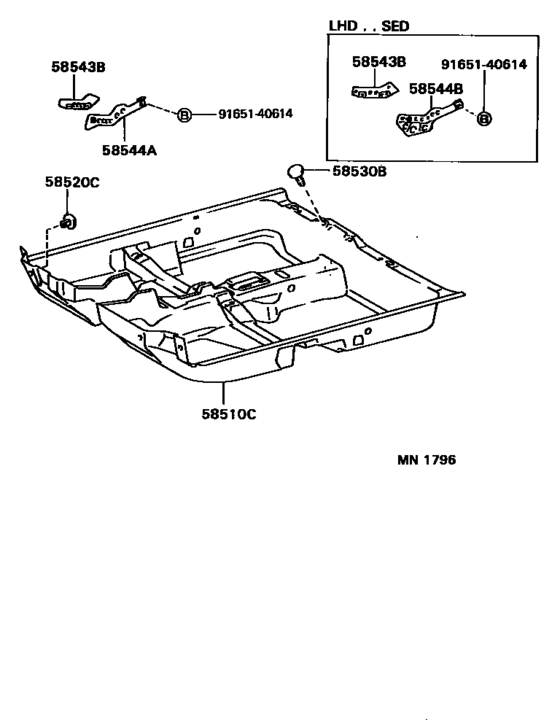

Mat & Carpet ([08.1991 - ] (9108- )SED) 6
| # | OEM | Part name |
|---|---|---|
| 58510 | 58510-1E332-B1 | Carpet Assy, Front Floor, Front |
| 58510 | 58510-1E332-J0 | Carpet Assy, Front Floor, Front |
| 58520 | 90467-09068-22 | Clip(For Front Floor Mat) |
| 58530 | 90467-06016-C0 | Clip, Deck Board |
| 58544 | 58544-12031 | Bracket, Floor Carpet, Lh |
| 9165140614 | 91651-40614 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 58510-1E332-B1 | Carpet Assy, Front Floor, Front | Mat & Carpet ([08.1991 - ] (9108- )SED) |
| 58510-1E332-J0 | Carpet Assy, Front Floor, Front | Mat & Carpet ([08.1991 - ] (9108- )SED) |
| 58544-12031 | Bracket, Floor Carpet, Lh | Mat & Carpet ([08.1991 - ] (9108- )SED) |
| 90467-06016-C0 | Clip, Deck Board | Mat & Carpet ([08.1991 - ] (9108- )SED) |
| 90467-09068-22 | Clip(For Front Floor Mat) | Mat & Carpet ([08.1991 - ] (9108- )SED) |
| 91651-40614 | Bolt | Mat & Carpet ([08.1991 - ] (9108- )SED) |
