Search › Model › AE102

AE102

Toyota COROLLA · 1992 · 5,092 parts · 358 categories

5,092 items

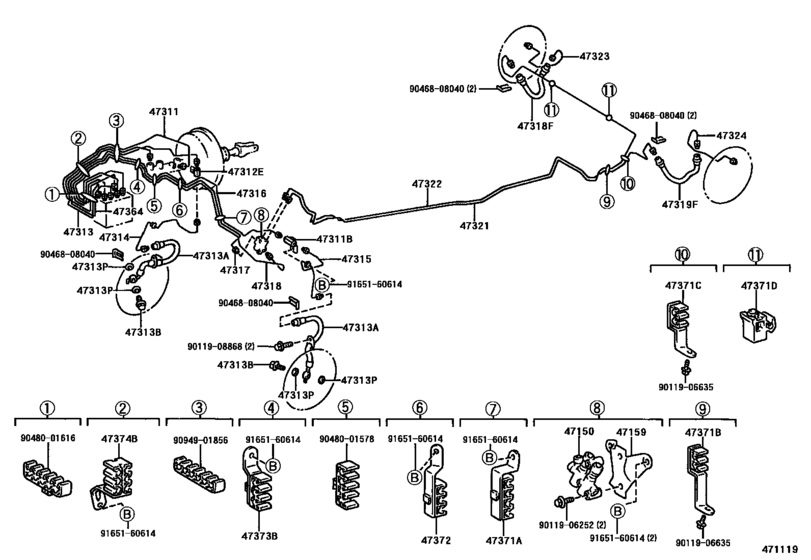

Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102) 47

#	OEM	Part name
47150	47150-12160	Valve Assy, Proportioning
47150	47150-16060	Valve Assy, Proportioning
47159	47159-12070	Bracket, Proportioning Valve
47311	47311-12570	Tube, Front Brake, No.1
47311	47311-12580	Tube, Front Brake, No.1
47311	90412-10116	Way(For Front Brake Tube)
47312	90904-12007	Way, No.2(For Front Brake Tube)
47313	47313-12380	Tube, Front Brake, No.3
47313	47313-12390	Tube, Front Brake, No.3
47313	90947-02798	Hose, Flexible, No.1(For Front)
47313	90947-02911	Hose, Flexible, No.1(For Front)
47313	90947-02799	Hose, Flexible, No.1(For Front)
47313	90947-02912	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90430-10074	Gasket(For Oil Pressure Regulator)
47314	47314-12290	Tube, Front Brake, No.4
47315	47315-12450	Tube, Front Brake, No.5
47316	47316-12250	Tube, Front Brake, No.6
47316	47316-12270	Tube, Front Brake, No.6
47317	47317-12100	Tube, Front Brake, No.7
47317	47317-12140	Tube, Front Brake, No.7
47318	47318-12270	Tube, Front Brake, No.8
47318	47318-12280	Tube, Front Brake, No.8
47318	90947-02783	Hose, Flexible(For Rear Brake Tube)
47318	90947-02921	Hose, Flexible(For Rear Brake Tube)
47321	47321-12130	Tube, Rear Brake, No.1
47322	47322-12280	Tube, Rear Brake, No.2
47323	47323-12250	Tube, Rear Brake, No.3
47324	47324-12210	Tube, Rear Brake, No.4
47364	47364-12040	Tube, Front Brake, No.13
47364	47364-12041	Tube, Front Brake, No.13
47364	47364-12110	Tube, Front Brake, No.13
47371	47371-12090	Clamp, Brake Tube, No.1
47371	47375-12040	Clamp, Brake Tube, No.6
47371	47375-12060	Clamp, Brake Tube, No.7
47371	47371-12150	Clamp(For Clutch Master Cylinder Tube)
47372	47372-12060	Clamp, Brake Tube, No.2
47373	47373-12010	Clamp, Brake Tube, No.1
47374	47374-12030	Clamp, Brake Tube, No.4
9011906252	90119-06252	New Genuine Part
9011906635	90119-06635	New Genuine Part
9011908868	90119-08868	BOLT WWASHER
9046808040	90468-08040	CLIP
9048001578	90480-01578	New Genuine Part
9048001616	90480-01616	New Genuine Part
9094901856	90949-01856	Clamp, Brake Tube, No.3
9165160614	91651-60614	Bolt

OEM	Part name	Category
47150-12160	Valve Assy, Proportioning	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47150-16060	Valve Assy, Proportioning	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47159-12070	Bracket, Proportioning Valve	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47311-12570	Tube, Front Brake, No.1	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47311-12580	Tube, Front Brake, No.1	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47313-12380	Tube, Front Brake, No.3	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47313-12390	Tube, Front Brake, No.3	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47314-12290	Tube, Front Brake, No.4	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47315-12450	Tube, Front Brake, No.5	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47316-12250	Tube, Front Brake, No.6	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47316-12270	Tube, Front Brake, No.6	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47317-12100	Tube, Front Brake, No.7	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47317-12140	Tube, Front Brake, No.7	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47318-12270	Tube, Front Brake, No.8	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47318-12280	Tube, Front Brake, No.8	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47321-12130	Tube, Rear Brake, No.1	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47322-12280	Tube, Rear Brake, No.2	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47323-12250	Tube, Rear Brake, No.3	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47324-12210	Tube, Rear Brake, No.4	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47364-12040	Tube, Front Brake, No.13	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47364-12041	Tube, Front Brake, No.13	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47364-12110	Tube, Front Brake, No.13	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47371-12090	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47371-12150	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47372-12060	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47373-12010	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47374-12030	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47375-12040	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
47375-12060	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
90119-06252	New Genuine Part	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
90119-06635	New Genuine Part	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
90412-10116	Way(For Front Brake Tube)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
90468-08040	CLIP	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
90480-01578	New Genuine Part	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
90480-01616	New Genuine Part	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
90904-12007	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
90947-02783	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
90947-02798	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
90947-02799	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
90947-02911	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
90947-02912	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
90947-02921	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
90949-01856	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
91651-60614	Bolt	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )AE102)
