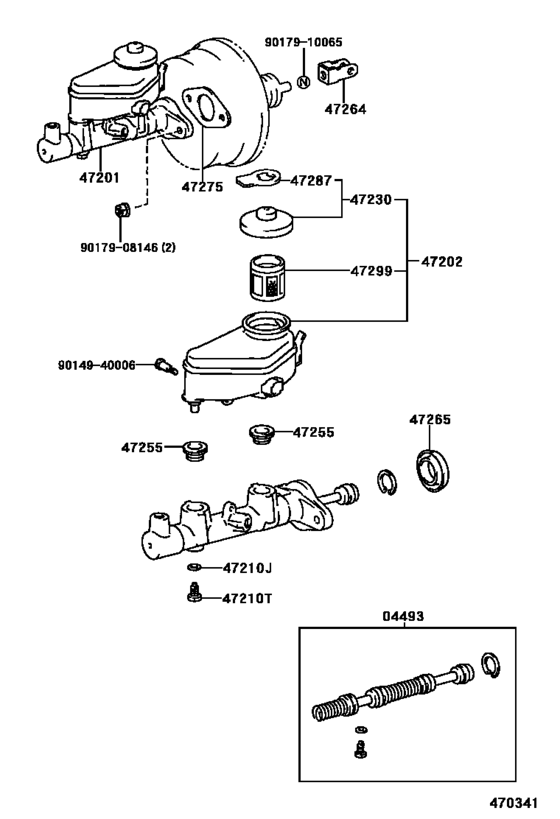

| 04493-16080 |
Cylinder Kit, Brake Master |
Brake Master Cylinder ([05.1993 - ] (9305- )RHD) |
| 04493-16090 |
Cylinder Kit, Brake Master |
Brake Master Cylinder ([05.1993 - ] (9305- )RHD) |
| 47201-12750 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([05.1993 - ] (9305- )RHD) |
| 47201-1A050 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([05.1993 - ] (9305- )RHD) |
| 47201-1A410 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([05.1993 - ] (9305- )RHD) |
| 47220-12180 |
Reservoir Sub-Assy, Brake Master Cylinder |
Brake Master Cylinder ([05.1993 - ] (9305- )RHD) |
| 47220-32060 |
Reservoir Sub-Assy, Brake Master Cylinder |
Brake Master Cylinder ([05.1993 - ] (9305- )RHD) |
| 47230-12040 |
Cap Assy, Brake Master Cylinder Reservoir Filler |
Brake Master Cylinder ([05.1993 - ] (9305- )RHD) |
| 47255-16010 |
Grommet, Master Cylinder Reservoir |
Brake Master Cylinder ([05.1993 - ] (9305- )RHD) |
| 47264-33010 |
Clevis, Master Cylinder Push Rod |
Brake Master Cylinder ([05.1993 - ] (9305- )RHD) |
| 47275-12020 |
Gasket, Brake Master Cylinder |
Brake Master Cylinder ([05.1993 - ] (9305- )RHD) |
| 47299-24010 |
Strainer, Brake Master Cylinder Reservoir |
Brake Master Cylinder ([05.1993 - ] (9305- )RHD) |
| 90109-06077 |
Bolt(For Brake Master Cylinder) |
Brake Master Cylinder ([05.1993 - ] (9305- )RHD) |
| 90149-40006 |
Bolt |
Brake Master Cylinder ([05.1993 - ] (9305- )RHD) |
| 90179-08146 |
Nut |
Brake Master Cylinder ([05.1993 - ] (9305- )RHD) |
| 90179-08204 |
Nut |
Brake Master Cylinder ([05.1993 - ] (9305- )RHD) |
| 90179-10065 |
Nut, Master Cylinder Push Rod Clevis Lock |
Brake Master Cylinder ([05.1993 - ] (9305- )RHD) |
| 90430-06104 |
Gasket(For Brake Actuator) |
Brake Master Cylinder ([05.1993 - ] (9305- )RHD) |
