ADT271

Toyota AVENSIS · 2008 · 5,428 parts · 266 categories

5,428 items

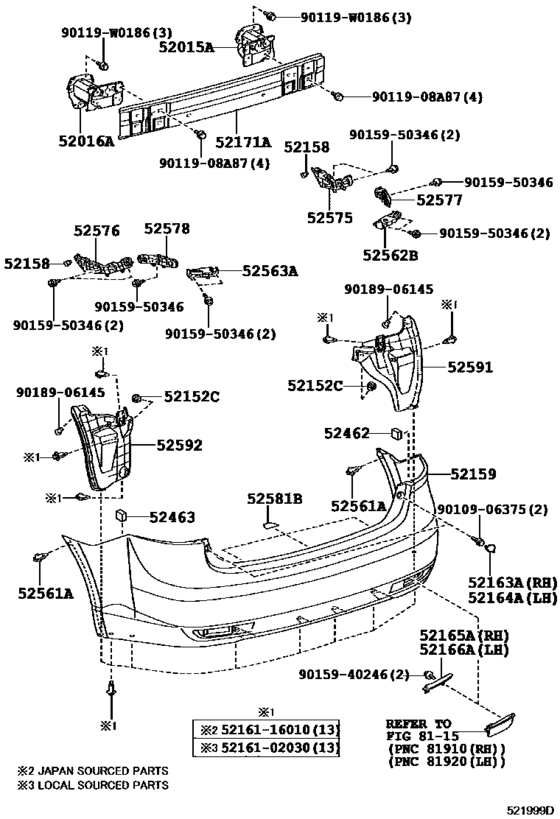

Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED) 42

#	OEM	Part name
52015	52015-05030	Arm Sub-Assy, Rear Bumper, Rh
52016	52016-05030	Arm Sub-Assy, Rear Bumper, Lh
52152	90467-06121	Clip, Rear Bumper Side
52152	90467-06206-C0	Clip, Rear Bumper Side
52158	52197-05020	Bracket, Rear Bumper
52159	52159-05905	Cover, Rear Bumper
52159	52159-05906	Cover, Rear Bumper
52159	52159-05909	Cover, Rear Bumper
52159	52159-05910	Cover, Rear Bumper
52163	52163-05902	Plate, Rear Bumper, Rh
52164	52164-05901	Plate, Rear Bumper, Lh
52165	52165-05010	Cover, Rear Bumper, Upr Rh
52165	52165-05020	Cover, Rear Bumper, Upr Rh
52166	52166-05010	Cover, Rear Bumper, Upr Lh
52171	52171-02080	Reinforcement, Rear Bumper, No.1
52462	52462-05020	Pad, Rear Bumper, Rh
52462	52462-05030	Pad, Rear Bumper, Rh
52561	90467-05090-B1	Clip, Rear Bumper Side
52561	90467-05170	Clip, Rear Bumper Side
52562	52562-05030	Retainer, Rear Bumper, Upper Rh
52562	52562-05050	Retainer, Rear Bumper, Upper Rh
52563	52563-05030	Retainer, Rear Bumper, Upper Lh
52563	52563-05050	Retainer, Rear Bumper, Upper Lh
52575	52575-05040	Retainer, Rear Bumper Side, Rh
52575	52575-05041	Retainer, Rear Bumper Side, Rh
52576	52576-05040	Retainer, Rear Bumper Side, Lh
52576	52576-05041	Retainer, Rear Bumper Side, Lh
52577	52577-05010	Retainer, Rear Bumper Side, No.2 Rh
52577	52577-05030	Retainer, Rear Bumper Side, No.2 Rh
52578	52578-05010	Retainer, Rear Bumper Side, No.2 Lh
52578	52578-05030	Retainer, Rear Bumper Side, No.2 Lh
52581	52581-02020	Protector, Rear Bumper
52591	52591-05030	Seal, Rear Bumper Side, Rh
52592	52592-05020	Seal, Rear Bumper Side, Lh
90119	90119-W0186	New Genuine Part
9011908	90119-08A87	BOLT W-WASHER
5216102030	52161-02030	Piece, Rear Bumper
5216102030	52161-16010	Clip
9010906375	90109-06375	BOLT
9015940246	90159-40246	SCREW WWASHER
9015950346	90159-50346	SCREW
9018906145	90189-06145	GROMMET SCREW

OEM	Part name	Category
52015-05030	Arm Sub-Assy, Rear Bumper, Rh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52016-05030	Arm Sub-Assy, Rear Bumper, Lh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52159-05905	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52159-05906	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52159-05909	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52159-05910	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52161-02030	Piece, Rear Bumper	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52161-16010	Clip	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52163-05902	Plate, Rear Bumper, Rh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52164-05901	Plate, Rear Bumper, Lh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52165-05010	Cover, Rear Bumper, Upr Rh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52165-05020	Cover, Rear Bumper, Upr Rh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52166-05010	Cover, Rear Bumper, Upr Lh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52171-02080	Reinforcement, Rear Bumper, No.1	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52197-05020	Bracket, Rear Bumper	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52462-05020	Pad, Rear Bumper, Rh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52462-05030	Pad, Rear Bumper, Rh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52562-05030	Retainer, Rear Bumper, Upper Rh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52562-05050	Retainer, Rear Bumper, Upper Rh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52563-05030	Retainer, Rear Bumper, Upper Lh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52563-05050	Retainer, Rear Bumper, Upper Lh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52575-05040	Retainer, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52575-05041	Retainer, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52576-05040	Retainer, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52576-05041	Retainer, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52577-05010	Retainer, Rear Bumper Side, No.2 Rh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52577-05030	Retainer, Rear Bumper Side, No.2 Rh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52578-05010	Retainer, Rear Bumper Side, No.2 Lh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52578-05030	Retainer, Rear Bumper Side, No.2 Lh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52581-02020	Protector, Rear Bumper	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52591-05030	Seal, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
52592-05020	Seal, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
90109-06375	BOLT	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
90119-08A87	BOLT W-WASHER	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
90119-W0186	New Genuine Part	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
90159-40246	SCREW WWASHER	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
90159-50346	SCREW	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
90189-06145	GROMMET SCREW	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
90467-05090-B1	Clip, Rear Bumper Side	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
90467-05170	Clip, Rear Bumper Side	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
90467-06121	Clip, Rear Bumper Side	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
90467-06206-C0	Clip, Rear Bumper Side	Rear Bumper & Bumper Stay ([11.2008 - 11.2011] (0811-1111)SED)
