ADT271

Toyota AVENSIS · 2008 · 5,428 parts · 266 categories

5,428 items

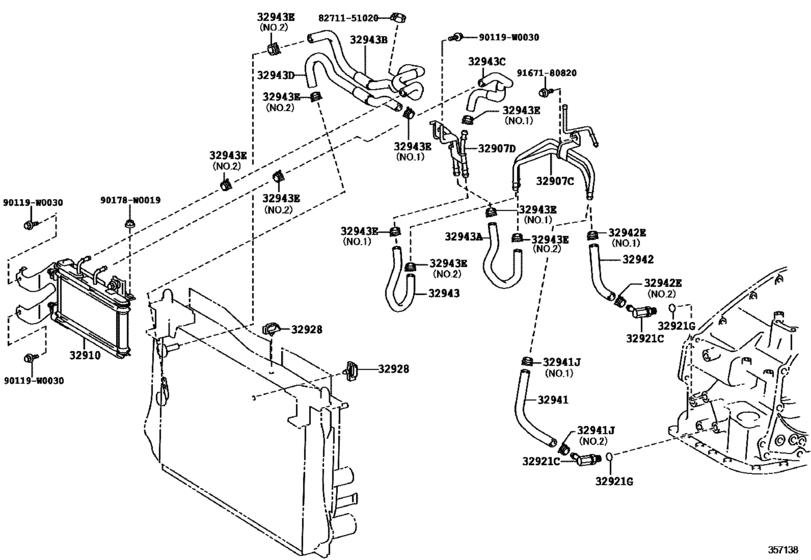

Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC) 20

#	OEM	Part name
32907	32907-20090	Tube Sub-Assy, Oil Cooler W/o Hose, No.1
32907	32907-20100	Tube Sub-Assy, Oil Cooler W/o Hose, No.2
32910	32910-20040	Cooler Assy, Oil
32921	90407-14032	Elbow, Transaxle Case
32921	90301-11006	O Ring, Transaxle Case Elbow
32921	90301-11031	Ring, O(For Oil Cooler Tube Union)
32928	32928-34030	Clamp, Flexible Hose, No.1
32941	32941-20340	Hose, Oil Cooler Inlet, No.1
32941	90466-16004	Clip(For Ventilation Hose No.2)
32941	90467-16022	Clip(For Water Inlet Hose)
32942	32942-20170	Hose, Oil Cooler Outlet, No.1
32943	32943-20200	Hose, Transmission Oil Cooler, No.1
32943	32943-20210	Hose, Transmission Oil Cooler, No.2
32943	32943-20240	Hose, Transmission Oil Cooler
32943	32943-20220	Hose, Transmission Oil Cooler, No.3
32943	32943-20230	Hose, Transmission Oil Cooler, No.4
90119	90119-W0030	New Genuine Part
90178	90178-W0019	Nut, Cap(For Cylinder Head Cover)
8271151020	82711-51020	Clamp, Automatic Transmission Oil Cooler Tube
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
32907-20090	Tube Sub-Assy, Oil Cooler W/o Hose, No.1	Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC)
32907-20100	Tube Sub-Assy, Oil Cooler W/o Hose, No.2	Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC)
32910-20040	Cooler Assy, Oil	Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC)
32928-34030	Clamp, Flexible Hose, No.1	Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC)
32941-20340	Hose, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC)
32942-20170	Hose, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC)
32943-20200	Hose, Transmission Oil Cooler, No.1	Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC)
32943-20210	Hose, Transmission Oil Cooler, No.2	Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC)
32943-20220	Hose, Transmission Oil Cooler, No.3	Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC)
32943-20230	Hose, Transmission Oil Cooler, No.4	Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC)
32943-20240	Hose, Transmission Oil Cooler	Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC)
82711-51020	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC)
90119-W0030	New Genuine Part	Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC)
90178-W0019	Nut, Cap(For Cylinder Head Cover)	Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC)
90301-11006	O Ring, Transaxle Case Elbow	Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC)
90301-11031	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC)
90407-14032	Elbow, Transaxle Case	Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC)
90466-16004	Clip(For Ventilation Hose No.2)	Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC)
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC)
91671-80820	Bolt (For Transmission Control Cable Bracket)	Oil Cooler & Tube (Atm) ([02.2009 - ] U660E (0902- )6FC)
