Search › Model › ADT271

ADT271

Toyota AVENSIS · 2008 · 5,428 parts · 266 categories

5,428 items

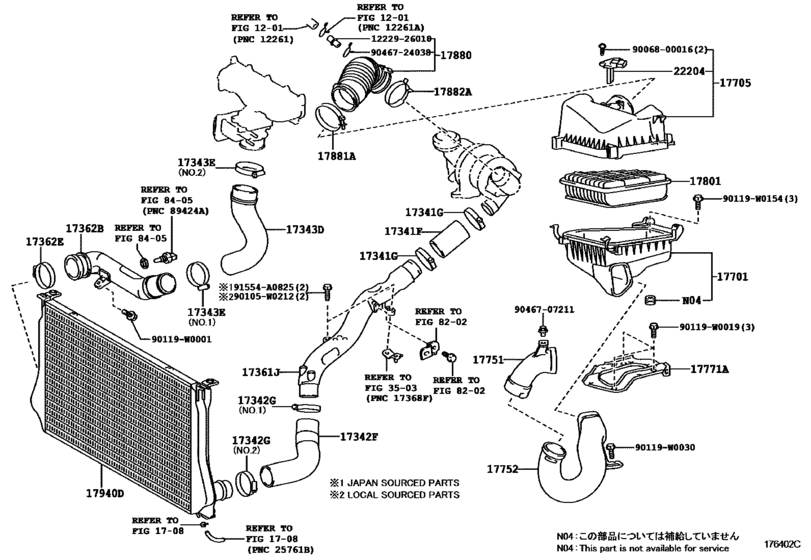

Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC) 35

#	OEM	Part name
17341	17341-26101	Hose, Air, No.1
17341	90460-65012	Clamp, Hose
17342	17342-26140	Hose, Air, No.2(For Intercooler)
17342	90460-66001	Clamp Or Clip(For Air Hose, No.2)
17342	90460-67008	Clamp Or Clip(For Air Hose, No.1)
17342	90460-70003	Clamp Or Clip(For Air Hose, No.1)
17343	17343-26070	Hose, Air, No.3
17343	17343-26100	Hose, Air, No.3
17343	90460-73011	Clamp Or Clip(For Air Hose, No.1)
17343	90460-77002	Clamp Or Clip(For Air Hose, No.1)
17361	17361-26060	Tube, Air, No.1
17362	17362-0R030	Tube, Air, No.2
17362	90460-73012	Clamp Or Clip(For Air Hose, No.2) - HOSE(FOR AIR HOSE, NO.4)
17701	17701-0R020	Case Sub-Assy, Air Cleaner
17705	17705-0R040	Cap Sub-Assy, Air Cleaner
17751	17751-0R040	Inlet, Air Cleaner, No.1
17752	17752-0R010	Inlet, Air Cleaner, No.2
17771	17771-0R020	Bracket, Air Cleaner
17801	17801-0R030	Element Sub-Assy, Air Cleaner Filter
17880	17880-0R030	Hose Assy, Air Cleaner
17881	96111-10850	Clamp, Hose(For Air Connector)
17882	90466-62002	Clamp(For Air Cleaner Hose, No.1)
17940	17940-0R030	Intercooler Assy
22204	22204-26010	Meter Sub-Assy, Intake Air Flow
90105	90105-W0212	New Genuine Part
90119	90119-W0001	New Genuine Part
90119	90119-W0019	BOLT WWASHER
90119	90119-A0182	New Genuine Part
90119	90119-W0030	New Genuine Part
90119	90119-W0154	New Genuine Part
91554	91554-A0825	New Genuine Part
1222926010	12229-26010	Pipe, Ventilation
9006800016	90068-00016	New Genuine Part
9046707211	90467-07211	Clip(For Reserve Tank Outlet Hose No.2)
9046724038	90467-24038	Clip(For Ventilation Tube)

OEM	Part name	Category
12229-26010	Pipe, Ventilation	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
17341-26101	Hose, Air, No.1	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
17342-26140	Hose, Air, No.2(For Intercooler)	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
17343-26070	Hose, Air, No.3	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
17343-26100	Hose, Air, No.3	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
17361-26060	Tube, Air, No.1	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
17362-0R030	Tube, Air, No.2	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
17701-0R020	Case Sub-Assy, Air Cleaner	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
17705-0R040	Cap Sub-Assy, Air Cleaner	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
17751-0R040	Inlet, Air Cleaner, No.1	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
17752-0R010	Inlet, Air Cleaner, No.2	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
17771-0R020	Bracket, Air Cleaner	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
17801-0R030	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
17880-0R030	Hose Assy, Air Cleaner	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
17940-0R030	Intercooler Assy	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
22204-26010	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
90068-00016	New Genuine Part	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
90105-W0212	New Genuine Part	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
90119-A0182	New Genuine Part	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
90119-W0001	New Genuine Part	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
90119-W0019	BOLT WWASHER	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
90119-W0030	New Genuine Part	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
90119-W0154	New Genuine Part	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
90460-65012	Clamp, Hose	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
90460-66001	Clamp Or Clip(For Air Hose, No.2)	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
90460-67008	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
90460-70003	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
90460-73011	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
90460-73012	Clamp Or Clip(For Air Hose, No.2) - HOSE(FOR AIR HOSE, NO.4)	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
90460-77002	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
90466-62002	Clamp(For Air Cleaner Hose, No.1)	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
90467-07211	Clip(For Reserve Tank Outlet Hose No.2)	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
90467-24038	Clip(For Ventilation Tube)	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
91554-A0825	New Genuine Part	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)
96111-10850	Clamp, Hose(For Air Connector)	Air Cleaner ([02.2009 - ] (0902- )2ADFHV..6FC)

Source: Public OEM parts-catalog data
Variants: 2 / 24
Category: 266
Collected: 2026-08-02
