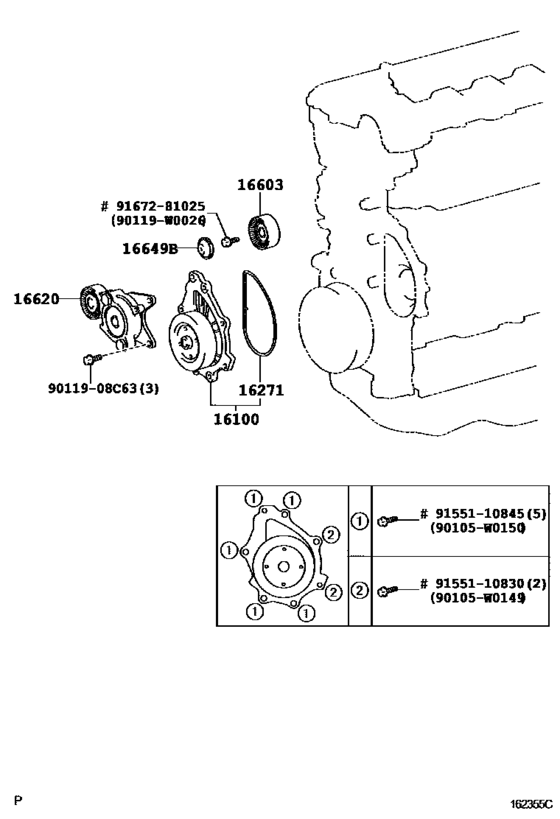

| 16100-09340 |
Pump Assy, Engine Water |
Water Pump ([04.2005 - 04.2008] (0504-0804)1ADFTV,2AD#) |
| 16100-09341 |
Pump Assy, Engine Water |
Water Pump ([04.2005 - 04.2008] (0504-0804)1ADFTV,2AD#) |
| 16271-26010 |
Gasket, Water Pump |
Water Pump ([04.2005 - 04.2008] (0504-0804)1ADFTV,2AD#) |
| 16603-0R010 |
Pulley Sub-Assy, Idler, No.1 |
Water Pump ([04.2005 - 04.2008] (0504-0804)1ADFTV,2AD#) |
| 16620-0R010 |
Tensioner Assy, V-Ribbed Belt |
Water Pump ([04.2005 - 04.2008] (0504-0804)1ADFTV,2AD#) |
| 16649-0R010 |
Plate, Idler Pulley Cover |
Water Pump ([04.2005 - 04.2008] (0504-0804)1ADFTV,2AD#) |
| 90105-W0149 |
Bolt(For Camshaft Housing Set) |
Water Pump ([04.2005 - 04.2008] (0504-0804)1ADFTV,2AD#) |
| 90105-W0150 |
New Genuine Part |
Water Pump ([04.2005 - 04.2008] (0504-0804)1ADFTV,2AD#) |
| 90119-08C63 |
New Genuine Part |
Water Pump ([04.2005 - 04.2008] (0504-0804)1ADFTV,2AD#) |
| 90119-W0026 |
New Genuine Part |
Water Pump ([04.2005 - 04.2008] (0504-0804)1ADFTV,2AD#) |
| 91551-10830 |
Bolt(For Transaxle Housing & Case Set) |
Water Pump ([04.2005 - 04.2008] (0504-0804)1ADFTV,2AD#) |
| 91551-10845 |
Bolt (For Transaxle Housing & Transaxle Case Setting) |
Water Pump ([04.2005 - 04.2008] (0504-0804)1ADFTV,2AD#) |
| 91551-L0830 |
Bolt(For Camshaft Housing Set) |
Water Pump ([04.2005 - 04.2008] (0504-0804)1ADFTV,2AD#) |
| 91551-L0845 |
BOLT FLANGE |
Water Pump ([04.2005 - 04.2008] (0504-0804)1ADFTV,2AD#) |
| 91672-81025 |
Bolt, Center Support Bearing Bracket |
Water Pump ([04.2005 - 04.2008] (0504-0804)1ADFTV,2AD#) |
