Search › Model › ADT250
ADT250

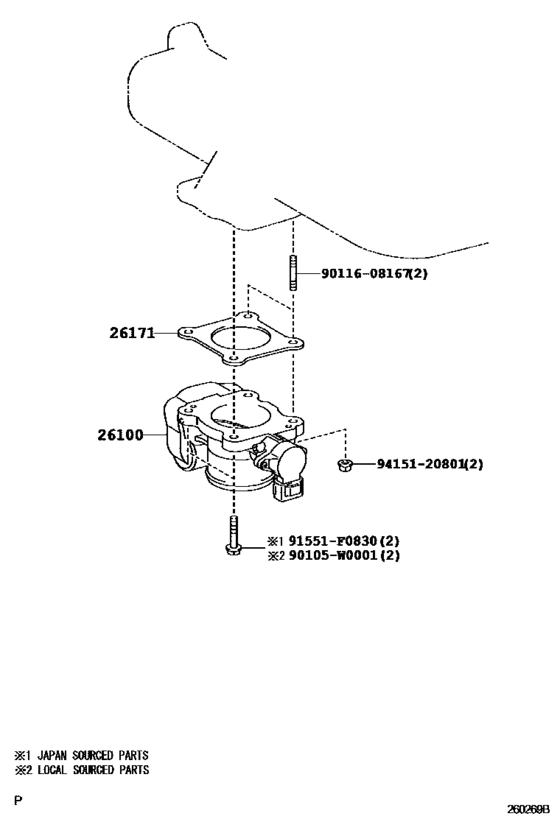

Venturi ([04.2005 - 02.2008] (0504-0802)1ADFTV,2AD#) 9
| # | OEM | Part name |
|---|---|---|
| 26100 | 26100-0R010 | Body Assy, Diesel Throttle |
| 26100 | 26100-26010 | Body Assy, Diesel Throttle |
| 26100 | 26100-0R011 | Venturi Assy |
| 26100 | 26100-26020 | Venturi Assy |
| 26171 | 26171-26010 | Gasket, Venturi |
| 90105 | 90105-W0001 | New Genuine Part |
| 91551 | 91551-F0830 | BOLT FLANGE |
| 9011608167 | 90116-08167 | Bolt, Stud(For Intake Manifold To Cylinder Head) |
| 9415120801 | 94151-20801 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 26100-0R010 | Body Assy, Diesel Throttle | Venturi ([04.2005 - 02.2008] (0504-0802)1ADFTV,2AD#) |
| 26100-0R011 | Venturi Assy | Venturi ([04.2005 - 02.2008] (0504-0802)1ADFTV,2AD#) |
| 26100-26010 | Body Assy, Diesel Throttle | Venturi ([04.2005 - 02.2008] (0504-0802)1ADFTV,2AD#) |
| 26100-26020 | Venturi Assy | Venturi ([04.2005 - 02.2008] (0504-0802)1ADFTV,2AD#) |
| 26171-26010 | Gasket, Venturi | Venturi ([04.2005 - 02.2008] (0504-0802)1ADFTV,2AD#) |
| 90105-W0001 | New Genuine Part | Venturi ([04.2005 - 02.2008] (0504-0802)1ADFTV,2AD#) |
| 90116-08167 | Bolt, Stud(For Intake Manifold To Cylinder Head) | Venturi ([04.2005 - 02.2008] (0504-0802)1ADFTV,2AD#) |
| 91551-F0830 | BOLT FLANGE | Venturi ([04.2005 - 02.2008] (0504-0802)1ADFTV,2AD#) |
| 94151-20801 | New Genuine Part | Venturi ([04.2005 - 02.2008] (0504-0802)1ADFTV,2AD#) |
