Search › Model › ADT250

ADT250

Toyota AVENSIS · 2006 · 3,636 parts · 186 categories

3,636 items

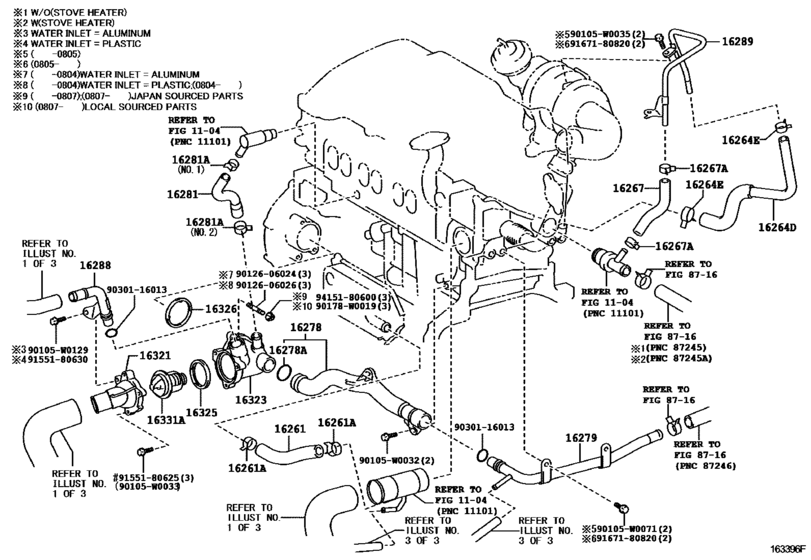

Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV) 42

#	OEM	Part name
16261	16261-0R020	Hose, Water By-Pass - WATER BY-PASS, NO.1
16261	16261-0R081	Hose, Water By-Pass - WATER BY-PASS, NO.1
16261	90467-21006	Clip(For Ventilation Hose No.2)
16264	16264-26020	Hose, Water By-Pass, No.2
16264	16264-26080	Hose, Water By-Pass, No.2
16264	90467-15022	Clip Or Clamp(For Ventilation Hose)
16267	16267-26020	Hose, Water By-Pass, No.3
16267	16267-26021	Hose, Water By-Pass, No.3
16278	16278-0R010	Pipe, Water By-Pass, No.2
16278	16258-0R010	Gasket(For Water By-Pass Pipe)
16279	16279-0R010	Pipe, Water By-Pass, No.3
16279	16279-0R040	Pipe, Water By-Pass, No.3
16281	16281-0R010	Hose, Water By-Pass, No.4
16281	16281-0R030	Hose, Water By-Pass, No.4
16281	90467-21010	Clip(For Ventilation Hose No.2)
16281	96134-41900	Clip Or Clamp(For Ventilation Hose)
16281	96134-52100	Clip(For Ventilation Hose)
16288	16288-0R011	Pipe, Water By-Pass, No.4
16289	16289-26010	Pipe, Water By-Pass, No.5
16289	16289-26011	Pipe, Water By-Pass, No.5
16321	16321-0R011	Inlet, Water
16321	16321-26010	Inlet, Water
16323	16323-0R011	Housing, Water Inlet
16323	16323-26010	Housing, Water Inlet
16325	16325-26011	Gasket, Water Inlet Housing, No.1
16325	16325-62010	Gasket, Water Inlet Housing, No.1
16326	16326-26011	Gasket, Water Inlet Housing, No.2
16326	16326-26020	Gasket, Water Inlet Housing, No.2
16331	90916-03125	Thermostat
90105	90105-W0032	New Genuine Part
90105	90105-W0033	New Genuine Part
90105	90105-W0035	Bolt(For Manual Transmission Oil Separator)
90105	90105-W0071	New Genuine Part
90105	90105-W0129	New Genuine Part
90178	90178-W0019	Nut, Cap(For Cylinder Head Cover)
9012606024	90126-06024	STUD HEX LOBULAR
9012606026	90126-06026	Bolt, Stud(Manifold To Throttle Body)
9030116013	90301-16013	New Genuine Part
9155180625	91551-80625	Bolt(For Camshaft Housing Set)
9155180630	91551-80630	Bolt(For Cylinder Head Cover)
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
16258-0R010	Gasket(For Water By-Pass Pipe)	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16261-0R020	Hose, Water By-Pass - WATER BY-PASS, NO.1	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16261-0R081	Hose, Water By-Pass - WATER BY-PASS, NO.1	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16264-26020	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16264-26080	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16267-26020	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16267-26021	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16278-0R010	Pipe, Water By-Pass, No.2	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16279-0R010	Pipe, Water By-Pass, No.3	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16279-0R040	Pipe, Water By-Pass, No.3	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16281-0R010	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16281-0R030	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16288-0R011	Pipe, Water By-Pass, No.4	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16289-26010	Pipe, Water By-Pass, No.5	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16289-26011	Pipe, Water By-Pass, No.5	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16321-0R011	Inlet, Water	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16321-26010	Inlet, Water	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16323-0R011	Housing, Water Inlet	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16323-26010	Housing, Water Inlet	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16325-26011	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16325-62010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16326-26011	Gasket, Water Inlet Housing, No.2	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
16326-26020	Gasket, Water Inlet Housing, No.2	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
90105-W0032	New Genuine Part	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
90105-W0033	New Genuine Part	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
90105-W0035	Bolt(For Manual Transmission Oil Separator)	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
90105-W0071	New Genuine Part	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
90105-W0129	New Genuine Part	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
90126-06024	STUD HEX LOBULAR	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
90126-06026	Bolt, Stud(Manifold To Throttle Body)	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
90178-W0019	Nut, Cap(For Cylinder Head Cover)	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
90301-16013	New Genuine Part	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
90467-21006	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
90467-21010	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
90916-03125	Thermostat	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
91551-80625	Bolt(For Camshaft Housing Set)	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
91551-80630	Bolt(For Cylinder Head Cover)	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
91671-80820	Bolt (For Transmission Control Cable Bracket)	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
96134-41900	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
96134-52100	Clip(For Ventilation Hose)	Radiator & Water Outlet ([02.2008 - ] (0802- )1ADFTV,2ADFTV)
