Search › Model › ADT250

ADT250

Toyota AVENSIS · 2006 · 3,636 parts · 186 categories

3,636 items

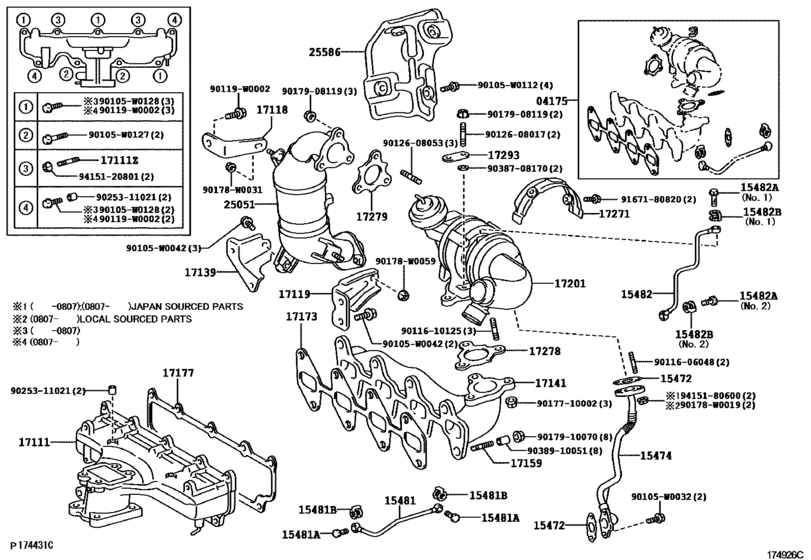

Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV) 56

#	OEM	Part name
4175	04175-0R080	Gasket Kit, Turbocharger
15472	15472-0R010	Gasket, Turbo Oil Outlet, No.1
15474	15474-26010	Pipe, Turbo Oil Outlet
15481	15481-0R010	Pipe, Turbo Oil, No.1
15481	15481-26010	Pipe, Turbo Oil, No.1
15481	90401-12039	Bolt, Union(For Oil Cooler) - UNION, NO.1
15481	90430-12037	Gasket(For Union Bolt No.1)
15482	15482-0R010	Pipe, Turbo Oil, No.2
15482	15482-26020	Pipe, Turbo Oil, No.2
15482	90401-10068	Bolt, Union, No.2
15482	90904-30011	Gasket(For Turbo Oil Inlet Pipe)
17111	17101-0R010	Manifold, Intake
17111	17101-0R011	Manifold, Intake
17111	90116-08167	Bolt, Stud(For Intake Manifold To Cylinder Head)
17118	17118-0R010	Stay, Manifold
17119	17119-0R010	Stay, Manifold, No.2
17119	17119-0R030	Stay, Manifold, No.2
17139	17139-0R010	Stay, Manifold, No.2
17141	17141-0R010	Manifold, Exhaust
17159	90126-10024	Bolt, Stud(For Manifold To Cylinder Head)
17173	17173-0R010	Gasket, Exhaust Manifold To Head
17177	17171-0R010	Gasket, Intake Manifold To Head, No.1
17201	17201-0R040	Turbocharger Sub-Assy
17201	17201-0R043	Turbocharger Sub-assy
17201	17201-0R041	Turbocharger Sub-Assy
17271	17271-0R020	Insulator, Turbo, No.1
17278	17278-0R010	Gasket, Turbo To Exhaust Manifold
17279	17279-0R010	Gasket, Turbine Outlet Elbow
17293	17293-26010	Stay, Turbocharger
25051	25051-0R010	Converter Sub-Assy, Exhaust Manifold
25586	25586-0R010	Insulator, Manifold Converter, No.1
25586	25586-0R020	Insulator, Manifold Converter, No.1
25586	25586-0R011	Insulator, Manifold Converter, No.1
90105	90105-W0032	New Genuine Part
90105	90105-W0042	New Genuine Part
90105	90105-W0112	BOLT FLANGE
90105	90105-W0127	New Genuine Part
90105	90105-W0128	New Genuine Part
90119	90119-W0002	BOLT WWASHER
90178	90178-W0019	Nut, Cap(For Cylinder Head Cover)
90178	90178-W0031	Nut (For Transmission Control Cable)
90178	90178-W0059	New Genuine Part
9011606048	90116-06048	Bolt, Stud(For Oil Pan)
9011610125	90116-10125	Bolt, Stud(For Turbine Housing)
9012608017	90126-08017	Bolt, Stud(For Turbine Housing)
9012608053	90126-08053	Bolt, Stud(For Exhaust Manifold, Lh)
9017710002	90177-10002	Nut
9017908119	90179-08119	NUT
9017910070	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
9017910070	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
9025311021	90253-11021	Pin, Ring
9038708170	90387-08170	New Genuine Part
9038910051	90389-10051	New Genuine Part
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)
9415120801	94151-20801	New Genuine Part
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
04175-0R080	Gasket Kit, Turbocharger	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
15472-0R010	Gasket, Turbo Oil Outlet, No.1	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
15474-26010	Pipe, Turbo Oil Outlet	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
15481-0R010	Pipe, Turbo Oil, No.1	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
15481-26010	Pipe, Turbo Oil, No.1	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
15482-0R010	Pipe, Turbo Oil, No.2	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
15482-26020	Pipe, Turbo Oil, No.2	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
17101-0R010	Manifold, Intake	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
17101-0R011	Manifold, Intake	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
17118-0R010	Stay, Manifold	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
17119-0R010	Stay, Manifold, No.2	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
17119-0R030	Stay, Manifold, No.2	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
17139-0R010	Stay, Manifold, No.2	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
17141-0R010	Manifold, Exhaust	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
17171-0R010	Gasket, Intake Manifold To Head, No.1	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
17173-0R010	Gasket, Exhaust Manifold To Head	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
17201-0R040	Turbocharger Sub-Assy	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
17201-0R041	Turbocharger Sub-Assy	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
17201-0R043	Turbocharger Sub-assy	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
17271-0R020	Insulator, Turbo, No.1	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
17278-0R010	Gasket, Turbo To Exhaust Manifold	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
17279-0R010	Gasket, Turbine Outlet Elbow	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
17293-26010	Stay, Turbocharger	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
25051-0R010	Converter Sub-Assy, Exhaust Manifold	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
25586-0R010	Insulator, Manifold Converter, No.1	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
25586-0R011	Insulator, Manifold Converter, No.1	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
25586-0R020	Insulator, Manifold Converter, No.1	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90105-W0032	New Genuine Part	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90105-W0042	New Genuine Part	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90105-W0112	BOLT FLANGE	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90105-W0127	New Genuine Part	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90105-W0128	New Genuine Part	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90116-06048	Bolt, Stud(For Oil Pan)	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90116-08167	Bolt, Stud(For Intake Manifold To Cylinder Head)	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90116-10125	Bolt, Stud(For Turbine Housing)	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90119-W0002	BOLT WWASHER	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90126-08017	Bolt, Stud(For Turbine Housing)	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90126-08053	Bolt, Stud(For Exhaust Manifold, Lh)	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90126-10024	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90177-10002	Nut	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90178-W0019	Nut, Cap(For Cylinder Head Cover)	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90178-W0031	Nut (For Transmission Control Cable)	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90178-W0059	New Genuine Part	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90179-08119	NUT	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90253-11021	Pin, Ring	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90387-08170	New Genuine Part	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90389-10051	New Genuine Part	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90401-10068	Bolt, Union, No.2	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90401-12039	Bolt, Union(For Oil Cooler) - UNION, NO.1	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90430-12037	Gasket(For Union Bolt No.1)	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
90904-30011	Gasket(For Turbo Oil Inlet Pipe)	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
91671-80820	Bolt (For Transmission Control Cable Bracket)	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
94151-20801	New Genuine Part	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Manifold ([04.2006 - ] (0604- )1ADFTV,2ADFTV)
