ADT250

Toyota AVENSIS · 2006 · 3,636 parts · 186 categories
ADT250 ×

← Back to categories

3,636 items

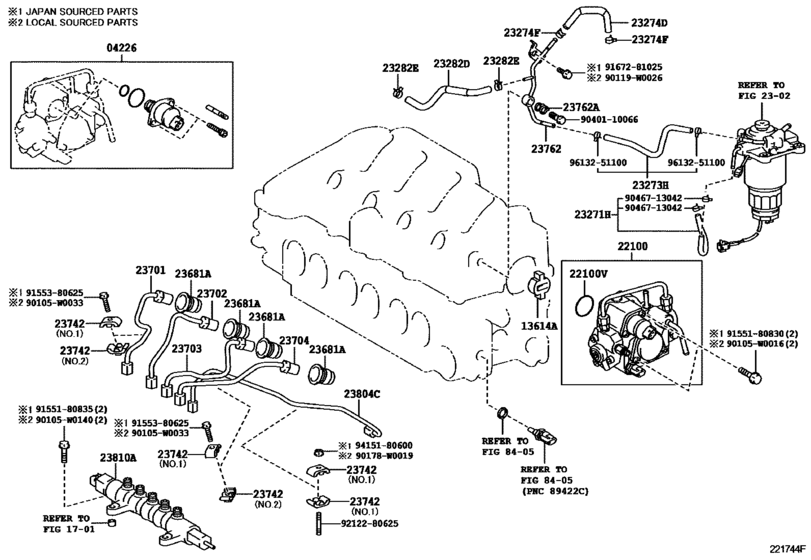

Injection Pump Assembly ([04.2005 - ] (0504- )1ADFTV,2ADFTV) 45
#OEMPart name
4226 04226-0L030 Valve Kit, Suction Control
4226 04226-26020 Valve Kit, Suction Control
4226 04226-26030 Valve Kit, Suction Control
13614 13614-26010 Coupling, Supply Pump Drive, No.1
22100 22100-0R010 Pump Assy, Injection Or Supply
22100 22100-0R070 Pump Assy, Injection Or Supply
22100 22100-0R011 Pump Assy, Injection Or Supply
22100 22193-0R020 Ring, O(For Injection Pump)
23271 23271-26040 Hose, Fuel, No.1
23273 23273-26020 Hose, Fuel, No.2
23274 23274-26020 Hose, Fuel, No.3
23274 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
23282 23282-26030 Hose, Fuel, No.4
23282 90467-11076 Clamp Or Clip(For Air Hose, No.5)
23681 23681-17010 Seal, Nozzle Holder
23701 23701-0R010 Pipe Sub-Assy, Injection, No.1
23701 23701-26030 Pipe Sub-Assy, Injection, No.1
23702 23702-0R010 Pipe Sub-Assy, Injection, No.2
23702 23702-26030 Pipe Sub-Assy, Injection, No.2
23703 23703-0R010 Pipe Sub-Assy, Injection, No.3
23703 23703-26030 Pipe Sub-Assy, Injection, No.3
23704 23704-0R010 Pipe Sub-Assy, Injection, No.4
23704 23704-26040 Pipe Sub-Assy, Injection, No.4
23742 23742-27010 Clamp, Injection Pipe, No.2
23742 23742-58020 Clamp, Injection Pipe, No.2
23762 23762-0R011 Pipe, Nozzle Leakage, No.2
23762 90430-10025 Gasket(For Turbo Oil Inlet Pipe) - NOZZLE LEAKAGE PIPE NO.2
23804 23804-0R010 Pipe Sub-Assy, Fuel Inlet
23804 23804-0R020 Pipe Sub-Assy, Fuel Inlet
23810 23810-0R010 Rail Assy, Common
23810 23810-0R011 Rail Assy, Common
90105 90105-W0016 New Genuine Part
90105 90105-W0033 New Genuine Part
90105 90105-W0140 New Genuine Part
90119 90119-W0026 New Genuine Part
90178 90178-W0019 Nut, Cap(For Cylinder Head Cover)
9040110066 90401-10066 New Genuine Part
9046713042 90467-13042 Clip, No.2(For Idle-Up Hose)
9155180830 91551-80830 Bolt, Compressor, No.2
9155180835 91551-80835 Bolt (For Front Oil Pump Setting)
9155380625 91553-80625 New Genuine Part
9167281025 91672-81025 Bolt, Center Support Bearing Bracket
9212280625 92122-80625 New Genuine Part
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
9613251100 96132-51100 Clip (For Hose)
