Search › Model › ADT250

ADT250

Toyota AVENSIS · 2006 · 3,636 parts · 186 categories
ADT250 ×

← Back to categories

3,636 items

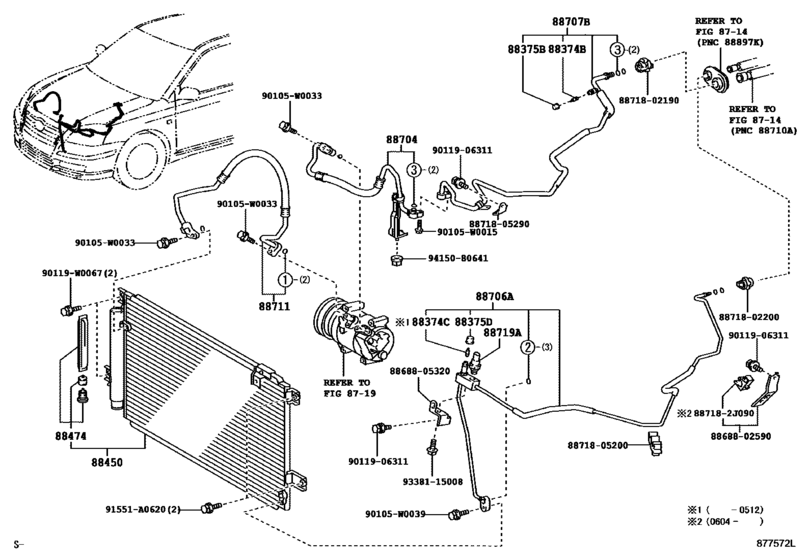

Heating & Air Conditioning - Cooler Piping ([07.2005 - ] (0507- )ADT25#..RHD) 30
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88450 88450-05160 Condenser Assy, W/receiver
88474 88474-17010 Dryer, Cooler
88704 88704-05351 Hose Sub-Assy, Suction
88704 88704-05352 Hose Sub-Assy, Suction
88706 88716-05550 Tube Sub-Assy, Liquid, A
88707 88707-05051 Tube Sub-Assy, Suction, B
88711 88703-05331 Hose, Cooler Refrigerant Discharge, No.1
88711 88703-05332 Hose, Cooler Refrigerant Discharge, No.1
88719 88719-33020 Sensor, Airconditioner Pressure
88719 88719-40020 Sensor, Airconditioner Pressure
90105 90105-W0015 Bolt(For Head To Camshaft Bearing Cap)
90105 90105-W0033 New Genuine Part
90105 90105-W0039 New Genuine Part
90119 90119-W0067 New Genuine Part
91551 91551-A0620 New Genuine Part
887182 88718-2J090 Pipe, Cooler Refrigerant Suction, No.2
8868802590 88688-02590 Bracket, Cooler Diaphragm
8868805320 88688-05320 Bracket, Cooler Diaphragm
8871802190 88718-02190 Pipe, Cooler Refrigerant Suction, No.2
8871802200 88718-02200 Clamp(For Cooler Refrigerant Pipe), No.1
8871802200 88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1
8871805200 88718-05200 Pipe, Cooler Refrigerant Suction, No.2
8871805290 88718-05290 Pipe, Cooler Refrigerant Suction, No.2
9011906311 90119-06311 BOLT
9338115008 93381-15008 SCREWWWASHER
9415080641 94150-80641 New Genuine Part
9415080641 94151-80641 NUT FLANGE
