Search › Model › ADT250

ADT250

Toyota AVENSIS · 2006 · 3,636 parts · 186 categories

3,636 items

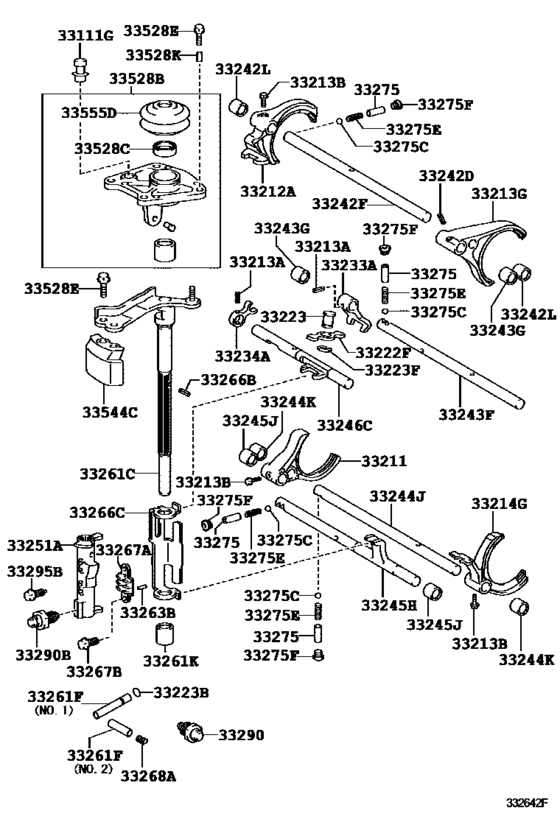

Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#) 45

#	OEM	Part name
33111	90930-03085	Plug, Breather
33211	33211-20030	Fork, Reverse Shift
33212	33210-20010	Fork, Gear Shift, No.1
33213	90254-05001	Pin, Slotted Spring(For Shift Lever Shaft Set)
33213	90105-06077	Bolt(For Shift Fork Set)
33213	33220-20010	Fork, Gear Shift, No.2
33214	33230-20020	Fork, Gear Shift, No.3
33222	33222-20010	Arm, Shift
33223	33223-20020	Pivot, Shift Arm
33223	96721-19008	Ring,o(For Power Take-Off Case)
33223	96160-01200	Ring, E(For Clutch Release Cable)
33233	33233-20010	Head, Gear Shift, No.2
33234	33234-20010	Head, Gear Shift, No.3
33242	90254-05016	Pin, Slotted Spring(For Shift Lever Shaft Set)
33242	33242-20110	Shaft , 1St & 2Nd Shift Fork
33242	90369-14001	Bearing (For Shift Fork Shaft)
33243	33243-20080	Shaft , 3Rd & 4Th Shift Fork
33244	33244-20080	Shaft, 5Th & 6Th Shift Fork
33245	33245-20010	Shaft , Reverse Shift Fork
33246	33246-20010	Shaft, Gear Shift Fork, No.5
33251	33251-20110	Lever, Shift, Inner No.1
33261	33261-20110	Shaft, Shift & Select Lever
33261	33267-20020	Pin, Straight (For Shift & Select Lever Shaft)
33261	33267-20030	Pin, Straight (For Shift & Select Lever Shaft)
33261	90369-15002	Bearing, Needle Roller (For Shift & Select Lever Shaft)
33263	90250-06024	Pin, Straight (For Shift Inter Lock Support Shaft)
33266	33266-20050	Plate, Shift Inter Lock
33266	33266-64010	Plate, Shift Inter Lock
33267	33267-20010	Plate, Shift Gate
33267	90105-06310	Bolt (For Shift Gate Plate)
33268	90501-10248	Spring, Torsion (For Shift Inter Lock Plate Set Bolt)
33275	33275-12041	Seat, Shift Detent Ball Spring, No.1
33275	90360-10003	Ball(For Transmission Oil Pump Cover)
33275	90501-12173	Spring, Compression (For Shift Detent Ball)
33275	90341-12004	Plug, Oil Pan(For Oil Cooler)
33290	33290-20020	Ball Assy, Lock, No.1
33290	33290-33020	Ball Assy, Lock, No.1
33295	33295-20010	Pin, Shift Gate
33528	33506-20330	Cover, Control Shaft
33528	90310-18002	Seal, Oil (For Control Shaft Cover)
33528	90119-08C67	Bolt (For Control Shaft Cover)
33528	91611-60830	Bolt(For Clutch Release Cylinder Setting)
33528	90253-11021	Pin, Ring
33544	33544-64010	Damper, Shift Lever
33555	33555-20080	Boot, Shift Lever

OEM	Part name	Category
33210-20010	Fork, Gear Shift, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33211-20030	Fork, Reverse Shift	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33220-20010	Fork, Gear Shift, No.2	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33222-20010	Arm, Shift	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33223-20020	Pivot, Shift Arm	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33230-20020	Fork, Gear Shift, No.3	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33233-20010	Head, Gear Shift, No.2	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33234-20010	Head, Gear Shift, No.3	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33242-20110	Shaft , 1St & 2Nd Shift Fork	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33243-20080	Shaft , 3Rd & 4Th Shift Fork	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33244-20080	Shaft, 5Th & 6Th Shift Fork	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33245-20010	Shaft , Reverse Shift Fork	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33246-20010	Shaft, Gear Shift Fork, No.5	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33251-20110	Lever, Shift, Inner No.1	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33261-20110	Shaft, Shift & Select Lever	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33266-20050	Plate, Shift Inter Lock	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33266-64010	Plate, Shift Inter Lock	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33267-20010	Plate, Shift Gate	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33267-20020	Pin, Straight (For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33267-20030	Pin, Straight (For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33275-12041	Seat, Shift Detent Ball Spring, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33290-20020	Ball Assy, Lock, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33290-33020	Ball Assy, Lock, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33295-20010	Pin, Shift Gate	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33506-20330	Cover, Control Shaft	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33544-64010	Damper, Shift Lever	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
33555-20080	Boot, Shift Lever	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
90105-06077	Bolt(For Shift Fork Set)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
90105-06310	Bolt (For Shift Gate Plate)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
90119-08C67	Bolt (For Control Shaft Cover)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
90250-06024	Pin, Straight (For Shift Inter Lock Support Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
90253-11021	Pin, Ring	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
90254-05001	Pin, Slotted Spring(For Shift Lever Shaft Set)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
90254-05016	Pin, Slotted Spring(For Shift Lever Shaft Set)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
90310-18002	Seal, Oil (For Control Shaft Cover)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
90341-12004	Plug, Oil Pan(For Oil Cooler)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
90360-10003	Ball(For Transmission Oil Pump Cover)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
90369-14001	Bearing (For Shift Fork Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
90369-15002	Bearing, Needle Roller (For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
90501-10248	Spring, Torsion (For Shift Inter Lock Plate Set Bolt)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
90501-12173	Spring, Compression (For Shift Detent Ball)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
90930-03085	Plug, Breather	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
91611-60830	Bolt(For Clutch Release Cylinder Setting)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
96160-01200	Ring, E(For Clutch Release Cable)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
96721-19008	Ring,o(For Power Take-Off Case)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2005 - ] EA60,EA61 (0504- )ADT25#)
