ADT250

Toyota AVENSIS · 2006 · 3,636 parts · 186 categories
ADT250 ×

← Back to categories

3,636 items

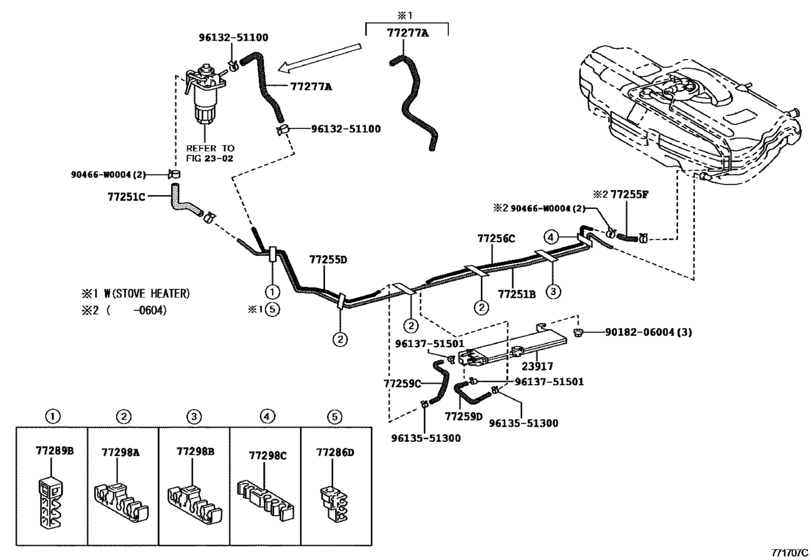

Fuel Tank & Tube ([04.2005 - ] FUEL TUBE (0504- )ADT25#..DCR) 17
#OEMPart name
77251 77251-05200 Tube, Fuel Main
77251 95337-08019 Hose, Fuel, No.2 (For Fuel Return Tube) - FUEL, NO.1(FOR FUEL MAIN TUBE)
77255 77255-05151 Tube, Fuel Return
77277 23274-26030 Hose, Fuel, No.1(For Return Tube, No.1)
77289 77289-05010 Clamp, Fuel Tube, No.3
77289 77289-20080 Clamp, Fuel Tube, No.1
77298 77298-05010 Clamp, Fuel Tube, No.4
77298 77298-68010 Clamp, Fuel Tube, No.1
77298 77298-05020 Clamp, Fuel Tube, No.4
77298 77298-20110 Clamp, Fuel Tube, No.1
77298 77298-05030 Clamp, Fuel Tube, No.4
77298 77298-68030 Clamp, Fuel Tube, No.1
90466 90466-W0004 Clip(For Fuel Vapor Feed Hose)
9018206004 90182-06004 New Genuine Part
9613251100 96132-51100 Clip (For Hose)
9613551300 96135-51300 Clamp, Hose
9613751501 96137-51501 Clip(For Water By-Pass Hose Assy)
