Search › Model › ADT250

ADT250

Toyota AVENSIS · 2006 · 3,636 parts · 186 categories

3,636 items

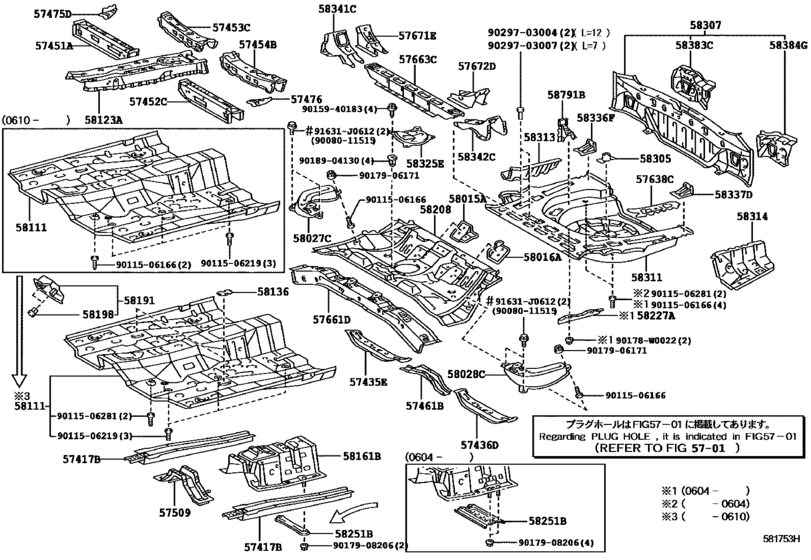

Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG) 57

#	OEM	Part name
57417	57505-05040	Reinforcement, Front Floor Under
57435	57435-02010	Member, Center Floor Side, Rh
57436	57436-02010	Member, Center Floor Side, Lh
57451	57451-02051	Member, Front Floor Cross, Rh
57452	57452-02020	Member, Front Floor Cross, Lh
57453	57453-05030	Member, Front Floor Cross Side, Rh
57454	57454-05010	Member, Front Floor Cross Side, Lh
57461	57461-02040	Member Sub-Assy, Center Floor Cross, No.1
57475	57475-05020	Plate, Front Floor Crossmember, Rh
57476	57476-05010	Plate, Front Floor Crossmember, Lh
57509	57509-05010	Reinforcement Sub-Assy, Front Floor, Center
57638	57638-05030	Reinforcement, Rear Floor Side Member, Center Lh
57661	57407-05010	Member, Rear Floor Cross, Front
57663	57663-05010	Member, Rear Floor Cross, Center
57671	57671-05030	Bracket, Rear Seat Back Hinge Mounting, Rh
57672	57672-05030	Blacket, Rear Seat Back Hinge Mounting, Lh
58015	58015-02051	Reinforce Sub-Assy, Belt Anchor, No.3 Rh
58016	58016-02081	Reinforce Sub-Assy, Belt Anchor, No.3 Lh
58027	58027-05050	Panel Sub-Assy, Center Floor Side, Rh
58028	58028-05010	Panel Sub-Assy, Center Floor Side, Lh
58111	58111-05052	Pan, Front Floor
58111	58111-05901	Pan, Front Floor
58123	58013-05020	Support, Shift & Select Lever
58136	58136-02020	Cover, Front Floor Hole
58136	58136-33010	Cover, Front Floor Hole
58161	57805-05040	Reinforcement, Belt Anchor To Floor Pan
58191	58191-05030	Footrest, Front Floor
58198	58198-05010	Clip, Footrest
58208	58211-02100	Pan, Center Floor
58227	58228-05010	Plate, Air Guide
58251	58251-20020	Brace, Floor Panel, Front
58305	58351-33010	Bracket Sub-Assy, Spare Wheel Clamp
58307	58307-05080	Panel Sub-Assy, Body Lower Back
58311	58311-05902	Pan, Rear Floor
58311	58311-05903	Pan, Rear Floor
58313	58313-05050	Panel, Rear Floor Side, Rh
58314	58314-05040	Panel, Rear Floor Side, Lh
58325	58325-13020	Cover, Rear Floor Service Hole
58336	58336-20050	Reinforcement, Rear Floor Pan, Rh
58337	58337-05030	Reinforcement, Rear Floor Pan, Lh
58341	58341-05020	Bracket, Rear Absorber Mounting, No.1 Rh
58342	58342-05020	Bracket, Rear Absorber Mounting, No.1 Lh
58383	58383-05020	Reinforcement, Body Lower Back Panel, Inner
58384	58384-05040	Gusset, Lower Back, Upper Rh
58791	58791-05010	Carrier, Jack
90178	90178-W0022	New Genuine Part
91631	91631-J0612	BRACKET
9008011515	90080-11515	New Genuine Part
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)
9011506219	90115-06219	Bolt, Weld(For Front Floor Pan, Lh)
9011506281	90115-06281	New Genuine Part
9015940183	90159-40183	SCREWWWASHER
9017906171	90179-06171	Nut, Cap(For Cylinder Head Cover)
9017908206	90179-08206	Nut(For Front Suspension Support)
9018904130	90189-04130	GROMMET SCREW
9029703004	90297-03004	New Genuine Part
9029703007	90297-03007	Retainer, Rear Heater Mounting

OEM	Part name	Category
57407-05010	Member, Rear Floor Cross, Front	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
57435-02010	Member, Center Floor Side, Rh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
57436-02010	Member, Center Floor Side, Lh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
57451-02051	Member, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
57452-02020	Member, Front Floor Cross, Lh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
57453-05030	Member, Front Floor Cross Side, Rh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
57454-05010	Member, Front Floor Cross Side, Lh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
57461-02040	Member Sub-Assy, Center Floor Cross, No.1	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
57475-05020	Plate, Front Floor Crossmember, Rh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
57476-05010	Plate, Front Floor Crossmember, Lh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
57505-05040	Reinforcement, Front Floor Under	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
57509-05010	Reinforcement Sub-Assy, Front Floor, Center	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
57638-05030	Reinforcement, Rear Floor Side Member, Center Lh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
57663-05010	Member, Rear Floor Cross, Center	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
57671-05030	Bracket, Rear Seat Back Hinge Mounting, Rh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
57672-05030	Blacket, Rear Seat Back Hinge Mounting, Lh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
57805-05040	Reinforcement, Belt Anchor To Floor Pan	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58013-05020	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58015-02051	Reinforce Sub-Assy, Belt Anchor, No.3 Rh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58016-02081	Reinforce Sub-Assy, Belt Anchor, No.3 Lh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58027-05050	Panel Sub-Assy, Center Floor Side, Rh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58028-05010	Panel Sub-Assy, Center Floor Side, Lh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58111-05052	Pan, Front Floor	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58111-05901	Pan, Front Floor	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58136-02020	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58136-33010	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58191-05030	Footrest, Front Floor	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58198-05010	Clip, Footrest	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58211-02100	Pan, Center Floor	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58228-05010	Plate, Air Guide	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58251-20020	Brace, Floor Panel, Front	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58307-05080	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58311-05902	Pan, Rear Floor	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58311-05903	Pan, Rear Floor	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58313-05050	Panel, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58314-05040	Panel, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58325-13020	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58336-20050	Reinforcement, Rear Floor Pan, Rh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58337-05030	Reinforcement, Rear Floor Pan, Lh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58341-05020	Bracket, Rear Absorber Mounting, No.1 Rh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58342-05020	Bracket, Rear Absorber Mounting, No.1 Lh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58351-33010	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58383-05020	Reinforcement, Body Lower Back Panel, Inner	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58384-05040	Gusset, Lower Back, Upper Rh	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
58791-05010	Carrier, Jack	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
90080-11515	New Genuine Part	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
90115-06166	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
90115-06219	Bolt, Weld(For Front Floor Pan, Lh)	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
90115-06281	New Genuine Part	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
90159-40183	SCREWWWASHER	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
90178-W0022	New Genuine Part	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
90179-06171	Nut, Cap(For Cylinder Head Cover)	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
90179-08206	Nut(For Front Suspension Support)	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
90189-04130	GROMMET SCREW	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
90297-03004	New Genuine Part	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
90297-03007	Retainer, Rear Heater Mounting	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
91631-J0612	BRACKET	Floor Pan & Lower Back Panel ([01.2003 - ] (0301- )WG)
