ADT250

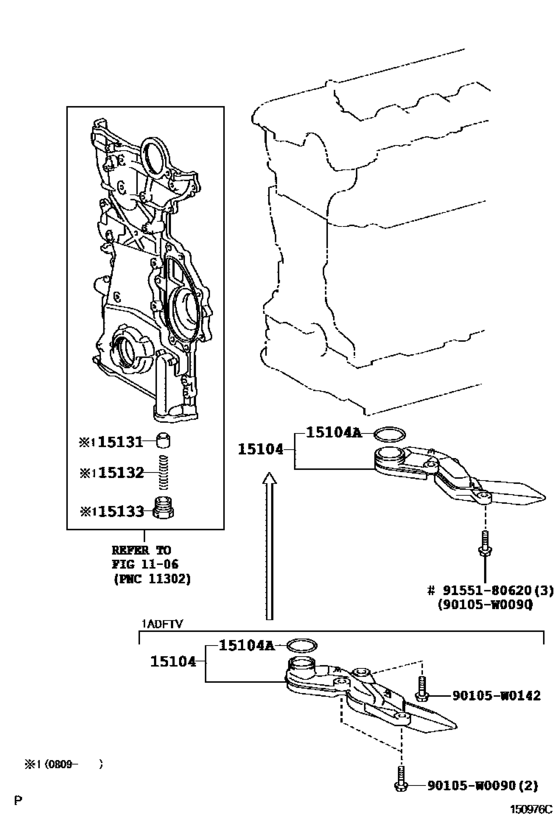

Engine Oil Pump ([04.2005 - ] (0504- )1ADFTV,2AD#) 8
| # | OEM | Part name |
|---|---|---|
| 15104 | 15104-26030 | Strainer Sub-Assy, Oil |
| 15104 | 90301-27013 | Ring, O(For Oil Strainer) |
| 15131 | 15131-0A040 | Valve, Oil Pump Relief |
| 15132 | 15132-26030 | Spring, Oil Pump Relief Valve |
| 15133 | 15133-33040 | Plug, Oil Pump Relief Valve |
| 90105 | 90105-W0090 | New Genuine Part |
| 90105 | 90105-W0142 | Bolt(For Transaxle Case & Engine Setting) |
| 9155180620 | 91551-80620 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 15104-26030 | Strainer Sub-Assy, Oil | Engine Oil Pump ([04.2005 - ] (0504- )1ADFTV,2AD#) |
| 15131-0A040 | Valve, Oil Pump Relief | Engine Oil Pump ([04.2005 - ] (0504- )1ADFTV,2AD#) |
| 15132-26030 | Spring, Oil Pump Relief Valve | Engine Oil Pump ([04.2005 - ] (0504- )1ADFTV,2AD#) |
| 15133-33040 | Plug, Oil Pump Relief Valve | Engine Oil Pump ([04.2005 - ] (0504- )1ADFTV,2AD#) |
| 90105-W0090 | New Genuine Part | Engine Oil Pump ([04.2005 - ] (0504- )1ADFTV,2AD#) |
| 90105-W0142 | Bolt(For Transaxle Case & Engine Setting) | Engine Oil Pump ([04.2005 - ] (0504- )1ADFTV,2AD#) |
| 90301-27013 | Ring, O(For Oil Strainer) | Engine Oil Pump ([04.2005 - ] (0504- )1ADFTV,2AD#) |
| 91551-80620 | Bolt | Engine Oil Pump ([04.2005 - ] (0504- )1ADFTV,2AD#) |
