Search › Model › ADT250

ADT250

Toyota AVENSIS · 2006 · 3,636 parts · 186 categories

3,636 items

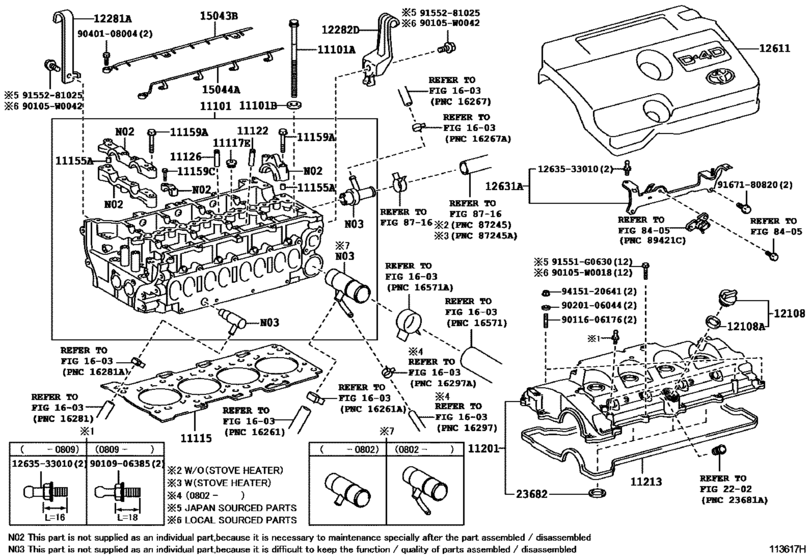

Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV) 55

#	OEM	Part name
11101	11101-09355	Head Sub-Assy, Cylinder
11101	11101-09385	Head Sub-Assy, Cylinder
11101	11101-29555	Head Sub-Assy, Cylinder
11101	11101-29585	Head Sub-Assy, Cylinder
11101	90910-02158	Bolt(For Cylinder Head Set)
11101	90910-9U002	Bolt(For Cylinder Head Set)
11101	90560-13023	Spacer(For Cylinder Head Set Bolt)
11115	11115-26051-A0	Gasket, Cylinder Head
11115	11115-26052-A0	Gasket, Cylinder Head
11115	11115-26051-B0	Gasket, Cylinder Head
11115	11115-26052-B0	Gasket, Cylinder Head
11115	11115-26051-C0	Gasket, Cylinder Head
11115	11115-26052-C0	Gasket, Cylinder Head
11115	11115-26051-D0	Gasket, Cylinder Head
11115	11115-26052-D0	Gasket, Cylinder Head
11115	11115-26051-E0	Gasket, Cylinder Head
11115	11115-26052-E0	Gasket, Cylinder Head
11117	90341-14015	Plug, W/head Straight Screw, No.1
11122	11122-0R010	Bush, Intake Valve Guide
11122	11123-0R010	Bush, Intake Valve Guide
11155	90253-11021	Pin, Ring
11159	90105-W0138	Bolt(For Head To Camshaft Bearing Cap)
11159	91551-80860	Bolt(For Head To Camshaft Bearing Cap)
11159	90105-W0139	Bolt(For Head To Camshaft Bearing Cap)
11159	91551-80632	Bolt(For Head To Camshaft Bearing Cap)
11201	11201-0R010	Cover Sub-Assy, Cylinder Head
11201	11201-0R012	Cover Sub-Assy, Cylinder Head
11201	11201-0R011	Cover Sub-Assy, Cylinder Head
11201	11201-26050	Cover Sub-Assy, Cylinder Head
11201	11201-26061	Cover Sub-Assy, Cylinder Head
11201	11201-26060	Cover Sub-Assy, Cylinder Head
11213	11213-0R010	Gasket, Cylinder Head Cover
11213	11213-26010	Gasket, Cylinder Head Cover
12108	12180-0N010	Cap Sub-Assy, Oil Filler
12108	12180-21010	Cap Sub-Assy, Oil Filler
12108	90080-43020	Gasket(For Oil Filler Cap)
12108	90430-37140	Gasket(For Oil Filler Cap)
12281	12281-26040	Hanger, Engine, No.1
12282	12282-26010	Hanger, Engine, No.2
12611	12611-0R010	Cover, Engine, No.1
12631	12631-26010	Bracket, Engine Cover
15043	15043-0R010	Pipe Sub-Assy, Camshaft Oil Delivery, Rh
15044	15044-0R010	Pipe Sub-Assy, Camshaft Oil Delivery, Lh
23682	23682-27030	Gasket, Nozzle Holder
90105	90105-W0018	New Genuine Part
90105	90105-W0042	New Genuine Part
91551	91551-G0630	New Genuine Part
1263533010	12635-33010	Bracket, V-Bank Cover, No.1 - ENGINE COVER
1263533010	90109-06385	Bolt , V-Bank Cover, No.1
9011606176	90116-06176	New Genuine Part
9020106044	90201-06044	Washer, Plate(For Repair Actuator Set)
9040108004	90401-08004	Bolt Union(For Oil Jet)
9155281025	91552-81025	BOLT TLANGE
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)
9415120641	94151-20641	New Genuine Part

OEM	Part name	Category
11101-09355	Head Sub-Assy, Cylinder	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11101-09385	Head Sub-Assy, Cylinder	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11101-29555	Head Sub-Assy, Cylinder	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11101-29585	Head Sub-Assy, Cylinder	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11115-26051-A0	Gasket, Cylinder Head	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11115-26051-B0	Gasket, Cylinder Head	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11115-26051-C0	Gasket, Cylinder Head	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11115-26051-D0	Gasket, Cylinder Head	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11115-26051-E0	Gasket, Cylinder Head	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11115-26052-A0	Gasket, Cylinder Head	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11115-26052-B0	Gasket, Cylinder Head	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11115-26052-C0	Gasket, Cylinder Head	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11115-26052-D0	Gasket, Cylinder Head	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11115-26052-E0	Gasket, Cylinder Head	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11122-0R010	Bush, Intake Valve Guide	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11123-0R010	Bush, Intake Valve Guide	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11201-0R010	Cover Sub-Assy, Cylinder Head	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11201-0R011	Cover Sub-Assy, Cylinder Head	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11201-0R012	Cover Sub-Assy, Cylinder Head	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11201-26050	Cover Sub-Assy, Cylinder Head	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11201-26060	Cover Sub-Assy, Cylinder Head	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11201-26061	Cover Sub-Assy, Cylinder Head	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11213-0R010	Gasket, Cylinder Head Cover	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
11213-26010	Gasket, Cylinder Head Cover	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
12180-0N010	Cap Sub-Assy, Oil Filler	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
12180-21010	Cap Sub-Assy, Oil Filler	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
12281-26040	Hanger, Engine, No.1	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
12282-26010	Hanger, Engine, No.2	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
12611-0R010	Cover, Engine, No.1	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
12631-26010	Bracket, Engine Cover	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
12635-33010	Bracket, V-Bank Cover, No.1 - ENGINE COVER	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
15043-0R010	Pipe Sub-Assy, Camshaft Oil Delivery, Rh	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
15044-0R010	Pipe Sub-Assy, Camshaft Oil Delivery, Lh	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
23682-27030	Gasket, Nozzle Holder	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
90080-43020	Gasket(For Oil Filler Cap)	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
90105-W0018	New Genuine Part	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
90105-W0042	New Genuine Part	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
90105-W0138	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
90105-W0139	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
90109-06385	Bolt , V-Bank Cover, No.1	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
90116-06176	New Genuine Part	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
90201-06044	Washer, Plate(For Repair Actuator Set)	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
90253-11021	Pin, Ring	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
90341-14015	Plug, W/head Straight Screw, No.1	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
90401-08004	Bolt Union(For Oil Jet)	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
90560-13023	Spacer(For Cylinder Head Set Bolt)	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
90910-02158	Bolt(For Cylinder Head Set)	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
90910-9U002	Bolt(For Cylinder Head Set)	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
91551-80632	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
91551-80860	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
91551-G0630	New Genuine Part	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
91552-81025	BOLT TLANGE	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
91671-80820	Bolt (For Transmission Control Cable Bracket)	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
94151-20641	New Genuine Part	Cylinder Head ([04.2005 - ] (0504- )1ADFTV,2ADFTV)
