ADT250

Toyota AVENSIS · 2006 · 3,636 parts · 186 categories

← Back to categories

3,636 items

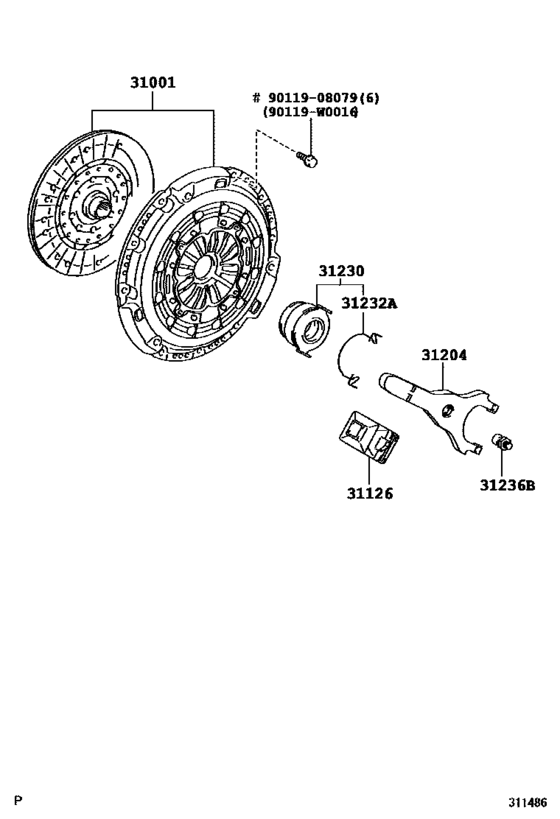

Clutch & Release Fork ([04.2005 - ] (0504- )ADT25#) 9

#	OEM	Part name
31001	31001-05060	Clutch Set, Cover & Disc
31001	31001-05180	Clutch Set, Cover & Disc
31126	31126-20080	Boot, Clutch Release Fork
31204	31204-20140	Fork Sub-Assy, Clutch Release
31230	31230-20200	Bearing Assy, Clutch Release
31232	31232-20031	Clip, Release Bearing Hub
31236	31236-20080	Support, Release Fork
90119	90119-W0016	Bolt (For Transmission Control Cable Bracket)
90119	90119-08079	Bolt(For Transmission Input Damper Cover & Flywheel)

OEM	Part name	Category
31001-05060	Clutch Set, Cover & Disc	Clutch & Release Fork ([04.2005 - ] (0504- )ADT25#)
31001-05180	Clutch Set, Cover & Disc	Clutch & Release Fork ([04.2005 - ] (0504- )ADT25#)
31126-20080	Boot, Clutch Release Fork	Clutch & Release Fork ([04.2005 - ] (0504- )ADT25#)
31204-20140	Fork Sub-Assy, Clutch Release	Clutch & Release Fork ([04.2005 - ] (0504- )ADT25#)
31230-20200	Bearing Assy, Clutch Release	Clutch & Release Fork ([04.2005 - ] (0504- )ADT25#)
31232-20031	Clip, Release Bearing Hub	Clutch & Release Fork ([04.2005 - ] (0504- )ADT25#)
31236-20080	Support, Release Fork	Clutch & Release Fork ([04.2005 - ] (0504- )ADT25#)
90119-08079	Bolt(For Transmission Input Damper Cover & Flywheel)	Clutch & Release Fork ([04.2005 - ] (0504- )ADT25#)
90119-W0016	Bolt (For Transmission Control Cable Bracket)	Clutch & Release Fork ([04.2005 - ] (0504- )ADT25#)

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 186
Collected: 2026-08-02
