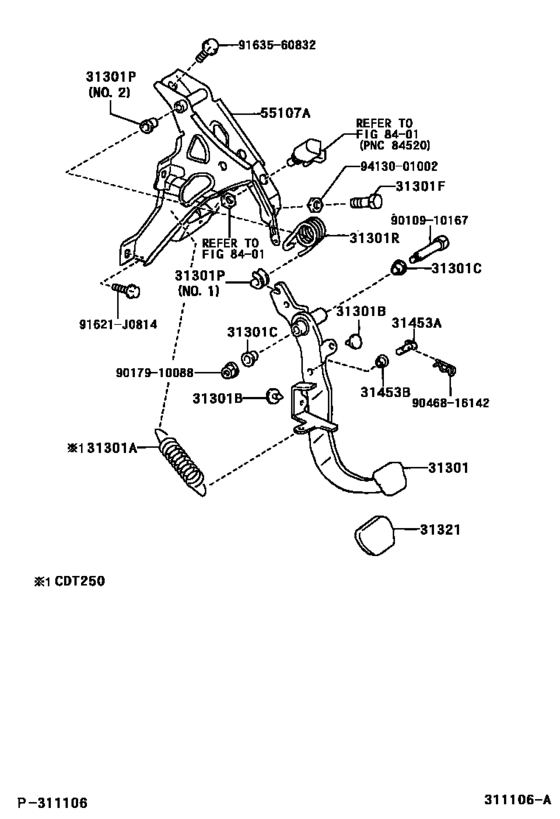

| 31301-05100 |
Pedal Sub-Assy, Clutch |
Clutch Pedal & Flexible Hose ([04.2005 - ] (0301- )AZT250,CDT250..RHD..5F ; (0504- )A DT25#..RHD) |
| 31321-52010 |
Pad, Brake Pedal |
Clutch Pedal & Flexible Hose ([04.2005 - ] (0301- )AZT250,CDT250..RHD..5F ; (0504- )A DT25#..RHD) |
| 55107-05070 |
Support Sub-Assy, Clutch Pedal |
Clutch Pedal & Flexible Hose ([04.2005 - ] (0301- )AZT250,CDT250..RHD..5F ; (0504- )A DT25#..RHD) |
| 90101-10369 |
Bolt(For Clutch Pedal Stopper) |
Clutch Pedal & Flexible Hose ([04.2005 - ] (0301- )AZT250,CDT250..RHD..5F ; (0504- )A DT25#..RHD) |
| 90109-10167 |
Shaft, Clutch Pedal |
Clutch Pedal & Flexible Hose ([04.2005 - ] (0301- )AZT250,CDT250..RHD..5F ; (0504- )A DT25#..RHD) |
| 90179-10088 |
Nut |
Clutch Pedal & Flexible Hose ([04.2005 - ] (0301- )AZT250,CDT250..RHD..5F ; (0504- )A DT25#..RHD) |
| 90249-08143 |
Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis) |
Clutch Pedal & Flexible Hose ([04.2005 - ] (0301- )AZT250,CDT250..RHD..5F ; (0504- )A DT25#..RHD) |
| 90386-05017 |
Bush(For Clutch Pedal Turnover) |
Clutch Pedal & Flexible Hose ([04.2005 - ] (0301- )AZT250,CDT250..RHD..5F ; (0504- )A DT25#..RHD) |
| 90386-08002 |
Bush(For Clutch Pedal Over Center Spring Pin) |
Clutch Pedal & Flexible Hose ([04.2005 - ] (0301- )AZT250,CDT250..RHD..5F ; (0504- )A DT25#..RHD) |
| 90386-13015 |
Bush(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([04.2005 - ] (0301- )AZT250,CDT250..RHD..5F ; (0504- )A DT25#..RHD) |
| 90389-05019 |
Bush(For Clutch Pedal Turnover) |
Clutch Pedal & Flexible Hose ([04.2005 - ] (0301- )AZT250,CDT250..RHD..5F ; (0504- )A DT25#..RHD) |
| 90468-16142 |
Clip(For Push Rod Clevis Pin) |
Clutch Pedal & Flexible Hose ([04.2005 - ] (0301- )AZT250,CDT250..RHD..5F ; (0504- )A DT25#..RHD) |
| 90541-06036 |
Cushion, No.1(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([04.2005 - ] (0301- )AZT250,CDT250..RHD..5F ; (0504- )A DT25#..RHD) |
| 90949-03138 |
Spring, Compression(For Turn Over Spring Seat) |
Clutch Pedal & Flexible Hose ([04.2005 - ] (0301- )AZT250,CDT250..RHD..5F ; (0504- )A DT25#..RHD) |
| 91621-J0814 |
Bolt (For Transmission Control Cable Bracket) |
Clutch Pedal & Flexible Hose ([04.2005 - ] (0301- )AZT250,CDT250..RHD..5F ; (0504- )A DT25#..RHD) |
| 91635-60832 |
New Genuine Part |
Clutch Pedal & Flexible Hose ([04.2005 - ] (0301- )AZT250,CDT250..RHD..5F ; (0504- )A DT25#..RHD) |
| 94130-01002 |
Nut, Booster Sleeve Cylinder |
Clutch Pedal & Flexible Hose ([04.2005 - ] (0301- )AZT250,CDT250..RHD..5F ; (0504- )A DT25#..RHD) |
