Search › Model › ADT250

ADT250

Toyota AVENSIS · 2006 · 3,636 parts · 186 categories
ADT250 ×

← Back to categories

3,636 items

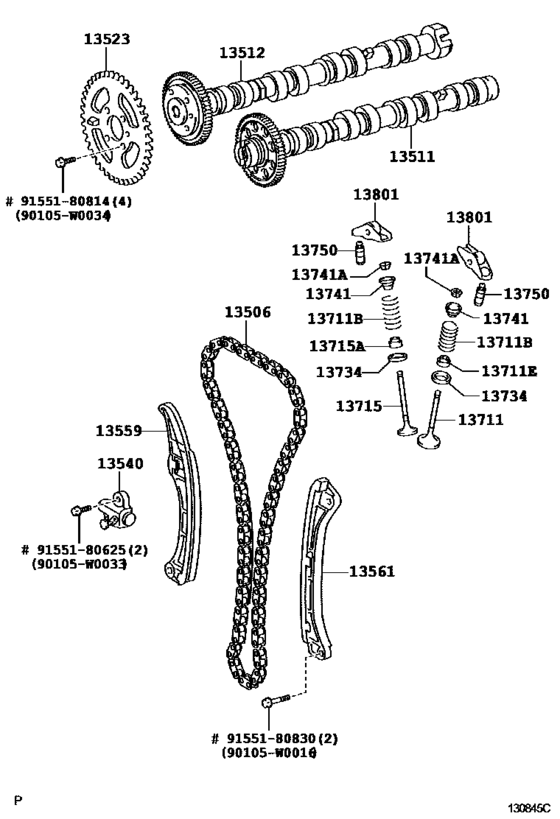

Camshaft & Valve ([04.2005 - 05.2008] (0504-0805)1ADFTV,2AD#) 30
#OEMPart name
13506 13506-0R010 Chain Sub-Assy
13511 13501-0R010 Camshaft
13512 13502-0R010 Camshaft, No.2
13512 13502-0R011 Camshaft, No.2
13523 13523-0R010 Gear Or Sprocket, Camshaft Timing
13523 13523-0R011 Gear Or Sprocket, Camshaft Timing
13540 13540-0R010 Tensioner Assy, Chain, No.1
13559 13559-0R010 Slipper, Chain Tensioner
13559 13559-0R020 Slipper, Chain Tensioner
13561 13561-0R010 Damper, Chain Vibration, No.1
13561 13561-0R020 Damper, Chain Vibration, No.1
13711 13711-0R010 Valve, Intake
13711 90501-28039 Spring, Compression(For Inner)
13711 90501-W0006 Spring, Compression(For Inner)
13711 90913-02124 Seal Or Ring, O(For Valve Stem Oil) - INTAKE VALVE STEM OIL
13711 90913-W2001 Seal Or Ring, O(For Valve Stem Oil) - INTAKE VALVE STEM OIL
13715 13715-0R010 Valve, Exhaust
13734 13734-33020 Seat, Intake Valve Spring
13734 90562-13002 Seat, Valve Spring
13741 13741-0R010 Retainer, Valve Spring
13741 13741-33020 Retainer, Intake Valve Spring
13741 90913-03021 Seal Or Ring, O(For Valve Stem Oil)
13750 13750-0R010 Adjuster Assy, Valve Lash
13801 13801-0R010 Arm Sub-Assy, Valve Rocker, No.1
90105 90105-W0016 New Genuine Part
90105 90105-W0033 New Genuine Part
90105 90105-W0034 New Genuine Part
9155180625 91551-80625 Bolt(For Camshaft Housing Set)
9155180814 91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt)
9155180830 91551-80830 Bolt, Compressor, No.2
