Search › Model › ADT250

ADT250

Toyota AVENSIS · 2006 · 3,636 parts · 186 categories

3,636 items

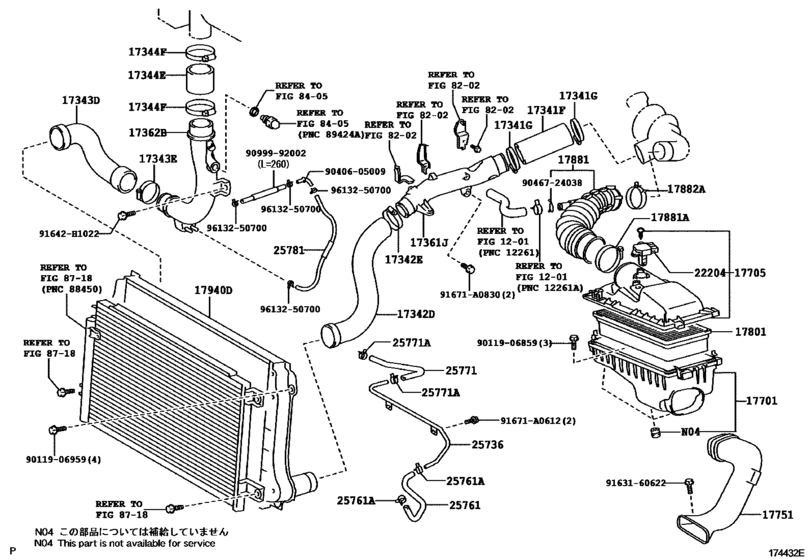

Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#) 43

#	OEM	Part name
17341	17341-26080	Hose, Air, No.1
17341	17341-26081	Hose, Air, No.1
17341	90460-65012	Clamp, Hose
17342	17342-26070	Hose, Air, No.2
17342	17342-26072	Hose, Air, No.2
17342	17342-26071	Hose, Air, No.2
17342	90460-67008	Clamp Or Clip(For Air Hose, No.1)
17343	17343-26021	Hose, Air, No.3
17343	17343-26023	Hose, Air, No.3
17343	17343-26022	Hose, Air, No.3
17343	90460-73011	Clamp Or Clip(For Air Hose, No.1)
17344	17344-0R010	Hose, Air, No.4
17344	90460-77002	Clamp Or Clip(For Air Hose, No.1)
17361	17361-26020	Tube, Air, No.1
17362	17362-0R010	Tube, Air, No.2
17362	17362-0R011	Tube, Air, No.2
17701	17701-0R010	Case Sub-Assy, Air Cleaner
17705	17705-0R010	Cap Sub-Assy, Air Cleaner
17705	17705-0R012	Cap Sub-Assy, Air Cleaner
17705	17705-0R011	Cap Sub-Assy, Air Cleaner
17751	17751-0R010	Inlet, Air Cleaner, No.1
17801	17801-0R010	Element Sub-Assy, Air Cleaner Filter
17881	17880-0R010	Hose, Air Cleaner, No.1
17881	96111-10880	Clamp(For Air Intake Rubber Seal)
17882	90466-62002	Clamp(For Air Cleaner Hose, No.1)
17940	17940-0R010	Intercooler Assy
22204	22204-0N010	Meter Sub-Assy, Intake Air Flow
22204	22204-0L010	Meter Sub-Assy, Intake Air Flow
22204	22204-30010	Meter Sub-Assy, Intake Air Flow
25736	25736-26010	Pipe, Vacuum Transmitting, No.1
25761	25761-26010	Hose, Vaccum Transmitting, No.1
25761	96132-50700	Clip(Vaccum Transmitting Hose No.1)
25771	25771-26010	Hose, Vaccum Transmitting, No.2
25781	25781-26010	Hose, Vacuum Transmitting, No.3
91642	91642-H1022	BOLT W-WASHER
91671	91671-A0612	BOLT FLANGE
91671	91671-A0830	New Genuine Part
9011906859	90119-06859	BOLT WWASHER
9011906959	90119-06959	New Genuine Part
9040605009	90406-05009	New Genuine Part
9046724038	90467-24038	Clip(For Ventilation Tube)
9099992002	90999-92002	Air Hose (300 mm)
9163160622	91631-60622	Screw

OEM	Part name	Category
17341-26080	Hose, Air, No.1	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
17341-26081	Hose, Air, No.1	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
17342-26070	Hose, Air, No.2	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
17342-26071	Hose, Air, No.2	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
17342-26072	Hose, Air, No.2	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
17343-26021	Hose, Air, No.3	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
17343-26022	Hose, Air, No.3	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
17343-26023	Hose, Air, No.3	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
17344-0R010	Hose, Air, No.4	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
17361-26020	Tube, Air, No.1	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
17362-0R010	Tube, Air, No.2	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
17362-0R011	Tube, Air, No.2	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
17701-0R010	Case Sub-Assy, Air Cleaner	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
17705-0R010	Cap Sub-Assy, Air Cleaner	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
17705-0R011	Cap Sub-Assy, Air Cleaner	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
17705-0R012	Cap Sub-Assy, Air Cleaner	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
17751-0R010	Inlet, Air Cleaner, No.1	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
17801-0R010	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
17880-0R010	Hose, Air Cleaner, No.1	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
17940-0R010	Intercooler Assy	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
22204-0L010	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
22204-0N010	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
22204-30010	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
25736-26010	Pipe, Vacuum Transmitting, No.1	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
25761-26010	Hose, Vaccum Transmitting, No.1	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
25771-26010	Hose, Vaccum Transmitting, No.2	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
25781-26010	Hose, Vacuum Transmitting, No.3	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
90119-06859	BOLT WWASHER	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
90119-06959	New Genuine Part	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
90406-05009	New Genuine Part	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
90460-65012	Clamp, Hose	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
90460-67008	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
90460-73011	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
90460-77002	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
90466-62002	Clamp(For Air Cleaner Hose, No.1)	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
90467-24038	Clip(For Ventilation Tube)	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
90999-92002	Air Hose (300 mm)	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
91631-60622	Screw	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
91642-H1022	BOLT W-WASHER	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
91671-A0612	BOLT FLANGE	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
91671-A0830	New Genuine Part	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
96111-10880	Clamp(For Air Intake Rubber Seal)	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
96132-50700	Clip(Vaccum Transmitting Hose No.1)	Air Cleaner ([04.2005 - ] (0504- )1ADFTV,2AD#)
