Search › Model › ADE186

ADE186

Toyota AURIS-COROLLA · 2012 · 3,724 parts · 214 categories

← Back to categories

3,724 items

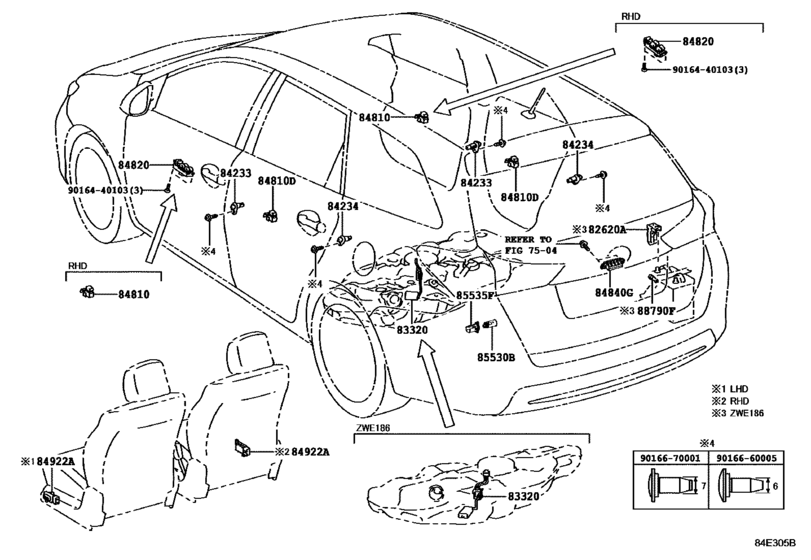

Switch & Relay & Computer ([06.2013 - ] DOOR,ROOF,FLOOR & BACK DOOR (1306- )WG) 16

#	OEM	Part name
83320	83320-02240	Gage Assy, Fuel Sender
83320	83320-12890	Gage Assy, Fuel Sender
84233	84231-0D030	Switch Assy, Courtesy Lamp (For Front Door)
84810	84810-02140	Switch Assy, Power Window Regulator
84810	84810-0D030	Switch Assy, Power Window Regulator
84820	84040-02120	Master Switch Assy, Power Window Regulator
84820	84820-02320	Master Switch Assy, Power Window Regulator
84820	84820-02340	Master Switch Assy, Power Window Regulator
84840	84840-02050	Switch Assy, Back Door Opener
84840	84840-02060	Switch Assy, Back Door Opener
84922	84920-05020-C0	Switch, Front Power Seat(For Lumbar)
85530	85530-0D020	Socket Assy, Power Outlet, No.1
85535	85535-12050-C0	Cover, Power Outlet Socket, No.2
9016440103	90164-40103	SCREW BINDING
9016660005	90166-60005	New Genuine Part
9016670001	90166-70001	Screw Hex Lobular

OEM	Part name	Category
83320-02240	Gage Assy, Fuel Sender	Switch & Relay & Computer ([06.2013 - ] DOOR,ROOF,FLOOR & BACK DOOR (1306- )WG)
83320-12890	Gage Assy, Fuel Sender	Switch & Relay & Computer ([06.2013 - ] DOOR,ROOF,FLOOR & BACK DOOR (1306- )WG)
84040-02120	Master Switch Assy, Power Window Regulator	Switch & Relay & Computer ([06.2013 - ] DOOR,ROOF,FLOOR & BACK DOOR (1306- )WG)
84231-0D030	Switch Assy, Courtesy Lamp (For Front Door)	Switch & Relay & Computer ([06.2013 - ] DOOR,ROOF,FLOOR & BACK DOOR (1306- )WG)
84810-02140	Switch Assy, Power Window Regulator	Switch & Relay & Computer ([06.2013 - ] DOOR,ROOF,FLOOR & BACK DOOR (1306- )WG)
84810-0D030	Switch Assy, Power Window Regulator	Switch & Relay & Computer ([06.2013 - ] DOOR,ROOF,FLOOR & BACK DOOR (1306- )WG)
84820-02320	Master Switch Assy, Power Window Regulator	Switch & Relay & Computer ([06.2013 - ] DOOR,ROOF,FLOOR & BACK DOOR (1306- )WG)
84820-02340	Master Switch Assy, Power Window Regulator	Switch & Relay & Computer ([06.2013 - ] DOOR,ROOF,FLOOR & BACK DOOR (1306- )WG)
84840-02050	Switch Assy, Back Door Opener	Switch & Relay & Computer ([06.2013 - ] DOOR,ROOF,FLOOR & BACK DOOR (1306- )WG)
84840-02060	Switch Assy, Back Door Opener	Switch & Relay & Computer ([06.2013 - ] DOOR,ROOF,FLOOR & BACK DOOR (1306- )WG)
84920-05020-C0	Switch, Front Power Seat(For Lumbar)	Switch & Relay & Computer ([06.2013 - ] DOOR,ROOF,FLOOR & BACK DOOR (1306- )WG)
85530-0D020	Socket Assy, Power Outlet, No.1	Switch & Relay & Computer ([06.2013 - ] DOOR,ROOF,FLOOR & BACK DOOR (1306- )WG)
85535-12050-C0	Cover, Power Outlet Socket, No.2	Switch & Relay & Computer ([06.2013 - ] DOOR,ROOF,FLOOR & BACK DOOR (1306- )WG)
90164-40103	SCREW BINDING	Switch & Relay & Computer ([06.2013 - ] DOOR,ROOF,FLOOR & BACK DOOR (1306- )WG)
90166-60005	New Genuine Part	Switch & Relay & Computer ([06.2013 - ] DOOR,ROOF,FLOOR & BACK DOOR (1306- )WG)
90166-70001	Screw Hex Lobular	Switch & Relay & Computer ([06.2013 - ] DOOR,ROOF,FLOOR & BACK DOOR (1306- )WG)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 214
Collected: 2026-08-02
