ADE186

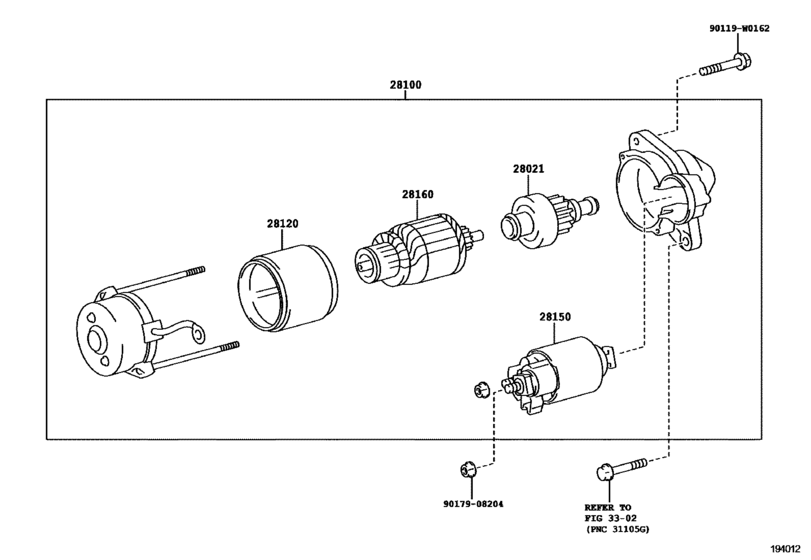

Starter ([10.2012 - 05.2015] 12V 1.9KW (1210-1505)1ADFTV) 9
| # | OEM | Part name |
|---|---|---|
| 28021 | 28021-26190 | Clutch Sub-Assy, Starter Center Bearing |
| 28100 | 28100-0R060 | Starter Assy |
| 28100 | 28100-0R061 | Starter Assy |
| 28120 | 28120-26190 | Yoke Assy, Starter |
| 28150 | 28150-26190 | Switch Assy, Magnet Starter |
| 28160 | 28160-26190 | Armature Assy, Starter |
| 90119 | 90119-W0162 | Bolt(For Transaxle & Engine Setting) |
| 9017908204 | 90179-08204 | Nut |
| 9017908204 | 90080-18070 | NUT, WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 28021-26190 | Clutch Sub-Assy, Starter Center Bearing | Starter ([10.2012 - 05.2015] 12V 1.9KW (1210-1505)1ADFTV) |
| 28100-0R060 | Starter Assy | Starter ([10.2012 - 05.2015] 12V 1.9KW (1210-1505)1ADFTV) |
| 28100-0R061 | Starter Assy | Starter ([10.2012 - 05.2015] 12V 1.9KW (1210-1505)1ADFTV) |
| 28120-26190 | Yoke Assy, Starter | Starter ([10.2012 - 05.2015] 12V 1.9KW (1210-1505)1ADFTV) |
| 28150-26190 | Switch Assy, Magnet Starter | Starter ([10.2012 - 05.2015] 12V 1.9KW (1210-1505)1ADFTV) |
| 28160-26190 | Armature Assy, Starter | Starter ([10.2012 - 05.2015] 12V 1.9KW (1210-1505)1ADFTV) |
| 90080-18070 | NUT, WWASHER | Starter ([10.2012 - 05.2015] 12V 1.9KW (1210-1505)1ADFTV) |
| 90119-W0162 | Bolt(For Transaxle & Engine Setting) | Starter ([10.2012 - 05.2015] 12V 1.9KW (1210-1505)1ADFTV) |
| 90179-08204 | Nut | Starter ([10.2012 - 05.2015] 12V 1.9KW (1210-1505)1ADFTV) |
