Search › Model › ADE186

ADE186

Toyota AURIS-COROLLA · 2012 · 3,724 parts · 214 categories

3,724 items

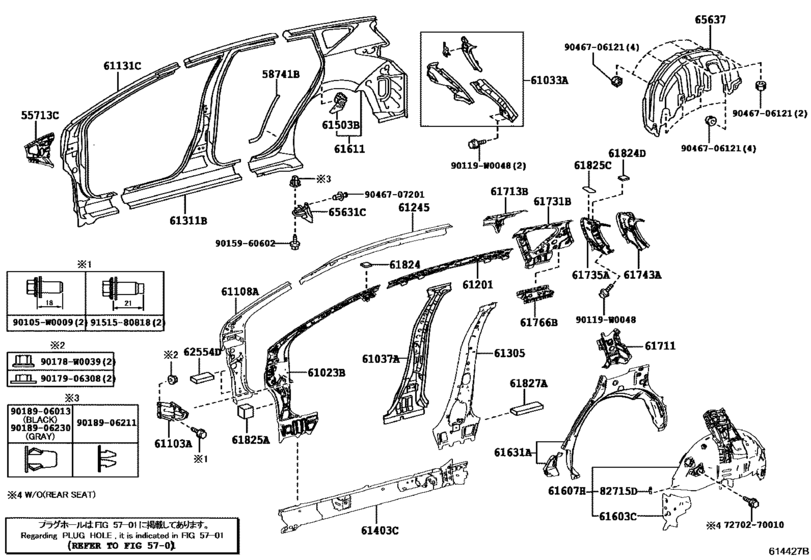

Side Member ([10.2012 - ] RH (1210- )HB) 48

#	OEM	Part name
55713	55713-02120	Panel, Cowl Top Side, Rh
58741	58741-02160	Protector, Quarter Panel, Rh
61023	61023-02270	Pillar Sub-Assy, Front Body, Inner Rh
61033	61033-02050	Reinforce Sub-Assy, Back Door Opening Side
61037	61037-02200	Reinforcement Sub-Assy, Center Body Pillar, Rh
61103	61103-02090	Reinforcement Sub-Assy, Cowl Side, Rh
61108	61108-02180	Reinforce Sub-Assy, Front Body Pillar, Lower Rh
61131	61131-02280	Pillar, Front Body, Outer Rh
61201	61201-02170	Rail Sub-Assy, Roof Side, Rh
61245	61245-02170	Reinforcement, Roof Side Rail, Outer Rh
61305	61305-02100	Reinforce Sub-Assy, Center Body Pillar, Lower Rh
61311	61311-02250	Pillar, Center Body, Outer Rh
61311	61311-02251	Pillar, Center Body, Outer Rh
61403	61403-02150	Reinforce Sub-Assy, Rocker, Outer Rh
61503	61503-02150	Reinforcement Sub-Assy, Quarter Lock Pillar, Rh
61603	61603-02020	Panel Sub-Assy, Quarter Wheel House, Rh
61607	61607-02620	Panel Sub-Assy, Quarter Wheel House, Inner Rh
61611	61601-02370	Panel, Quarter, Rh
61611	61601-02371	Panel, Quarter, Rh
61631	61605-02020	Panel, Quarter Wheel House, Outer Rh
61711	61711-02090	Panel, Roof Side, Outer Rh
61713	61713-02040	Reinforce, Roof Side, Outer Rh
61731	61731-02240	Panel, Roof Side, Inner Rh
61735	61735-02140	Panel, Roof Side, Inner Rear Rh
61743	61743-02040	Reinforcement, Back Door Opening Side, Rh
61766	61766-02060	Reinforcement, Belt Anchor To Roof Side, Inner Rh
61824	61824-02280	Plate, Noise Control, No.1
61824	61824-52030	Plate, Noise Control, No.1
61824	61824-02220	Plate, Noise Control, No.1
61825	61825-02020	Plate, Noise Control, No.2
61825	61825-02030	Pad, Noise Shutter, No.2
61827	61827-02030	Plate, Noise Control, No.4
62554	62554-02190	Pad, Pillar, No.4 - COWL SIDE SILENCER, NO.2
65631	65631-02200	Plate, Rear Wheel House, Front Rh
65637	65637-02080	Liner, Rear Wheel House, Rh
82715	82715-20350	Bracket, Wiring Harness Clamp
90105	90105-W0009	New Genuine Part
90119	90119-W0048	New Genuine Part
90178	90178-W0039	New Genuine Part
7270270010	72702-70010	Bracket Sub-assy, Rear Seat Back Striker
9015960602	90159-60602	SCREW
9017906308	90179-06308	NUT
9018906013	90189-06013	CLIP
9018906211	90189-06211	GROMMET SCREW
9018906230	90189-06230	GROMMET SCREW
9046706121	90467-06121	Clip, Rear Bumper Side
9046707201	90467-07201	Clamp(For Cool Air Intake)
9151580818	91515-80818	New Genuine Part

OEM	Part name	Category
55713-02120	Panel, Cowl Top Side, Rh	Side Member ([10.2012 - ] RH (1210- )HB)
58741-02160	Protector, Quarter Panel, Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61023-02270	Pillar Sub-Assy, Front Body, Inner Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61033-02050	Reinforce Sub-Assy, Back Door Opening Side	Side Member ([10.2012 - ] RH (1210- )HB)
61037-02200	Reinforcement Sub-Assy, Center Body Pillar, Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61103-02090	Reinforcement Sub-Assy, Cowl Side, Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61108-02180	Reinforce Sub-Assy, Front Body Pillar, Lower Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61131-02280	Pillar, Front Body, Outer Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61201-02170	Rail Sub-Assy, Roof Side, Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61245-02170	Reinforcement, Roof Side Rail, Outer Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61305-02100	Reinforce Sub-Assy, Center Body Pillar, Lower Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61311-02250	Pillar, Center Body, Outer Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61311-02251	Pillar, Center Body, Outer Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61403-02150	Reinforce Sub-Assy, Rocker, Outer Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61503-02150	Reinforcement Sub-Assy, Quarter Lock Pillar, Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61601-02370	Panel, Quarter, Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61601-02371	Panel, Quarter, Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61603-02020	Panel Sub-Assy, Quarter Wheel House, Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61605-02020	Panel, Quarter Wheel House, Outer Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61607-02620	Panel Sub-Assy, Quarter Wheel House, Inner Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61711-02090	Panel, Roof Side, Outer Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61713-02040	Reinforce, Roof Side, Outer Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61731-02240	Panel, Roof Side, Inner Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61735-02140	Panel, Roof Side, Inner Rear Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61743-02040	Reinforcement, Back Door Opening Side, Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61766-02060	Reinforcement, Belt Anchor To Roof Side, Inner Rh	Side Member ([10.2012 - ] RH (1210- )HB)
61824-02220	Plate, Noise Control, No.1	Side Member ([10.2012 - ] RH (1210- )HB)
61824-02280	Plate, Noise Control, No.1	Side Member ([10.2012 - ] RH (1210- )HB)
61824-52030	Plate, Noise Control, No.1	Side Member ([10.2012 - ] RH (1210- )HB)
61825-02020	Plate, Noise Control, No.2	Side Member ([10.2012 - ] RH (1210- )HB)
61825-02030	Pad, Noise Shutter, No.2	Side Member ([10.2012 - ] RH (1210- )HB)
61827-02030	Plate, Noise Control, No.4	Side Member ([10.2012 - ] RH (1210- )HB)
62554-02190	Pad, Pillar, No.4 - COWL SIDE SILENCER, NO.2	Side Member ([10.2012 - ] RH (1210- )HB)
65631-02200	Plate, Rear Wheel House, Front Rh	Side Member ([10.2012 - ] RH (1210- )HB)
65637-02080	Liner, Rear Wheel House, Rh	Side Member ([10.2012 - ] RH (1210- )HB)
72702-70010	Bracket Sub-assy, Rear Seat Back Striker	Side Member ([10.2012 - ] RH (1210- )HB)
82715-20350	Bracket, Wiring Harness Clamp	Side Member ([10.2012 - ] RH (1210- )HB)
90105-W0009	New Genuine Part	Side Member ([10.2012 - ] RH (1210- )HB)
90119-W0048	New Genuine Part	Side Member ([10.2012 - ] RH (1210- )HB)
90159-60602	SCREW	Side Member ([10.2012 - ] RH (1210- )HB)
90178-W0039	New Genuine Part	Side Member ([10.2012 - ] RH (1210- )HB)
90179-06308	NUT	Side Member ([10.2012 - ] RH (1210- )HB)
90189-06013	CLIP	Side Member ([10.2012 - ] RH (1210- )HB)
90189-06211	GROMMET SCREW	Side Member ([10.2012 - ] RH (1210- )HB)
90189-06230	GROMMET SCREW	Side Member ([10.2012 - ] RH (1210- )HB)
90467-06121	Clip, Rear Bumper Side	Side Member ([10.2012 - ] RH (1210- )HB)
90467-07201	Clamp(For Cool Air Intake)	Side Member ([10.2012 - ] RH (1210- )HB)
91515-80818	New Genuine Part	Side Member ([10.2012 - ] RH (1210- )HB)
