Search › Model › ADE186

ADE186

Toyota AURIS-COROLLA · 2012 · 3,724 parts · 214 categories

3,724 items

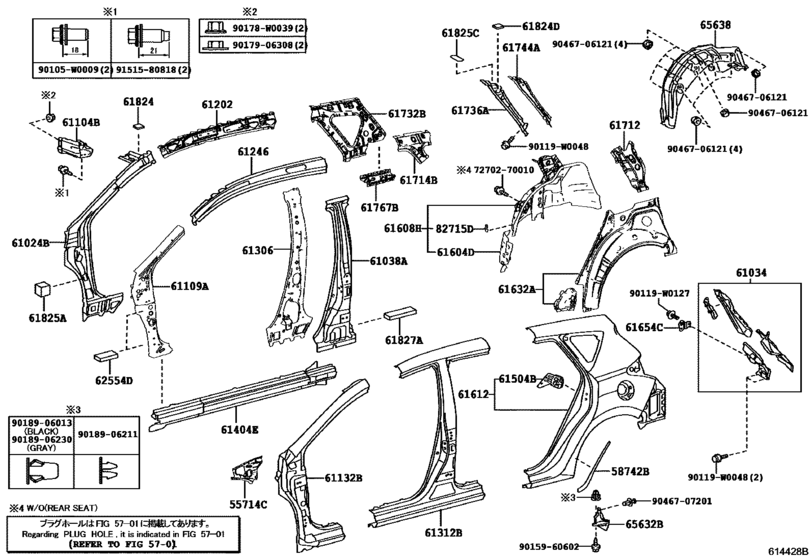

Side Member ([10.2012 - ] LH (1210- )HB) 50

#	OEM	Part name
55714	55714-02120	Panel, Cowl Top Side, Lh
58742	58742-02150	Protector, Quarter Panel, Lh
61024	61024-02250	Pillar Sub-Assy, Front Body, Inner Lh
61034	61034-02040	Reinforce Sub-Assy, Back Door Opening Side, Lh
61038	61038-02200	Reinforcement Sub-Assy, Center Body Pillar, Lh
61104	61104-02090	Reinforcement Sub-Assy, Cowl Side, Lh
61109	61109-02180	Reinforce Sub-Assy, Front Body Pillar, Lower Lh
61132	61132-02310	Pillar, Front Body, Outer Lh
61202	61202-02170	Rail Sub-Assy, Roof Side, Lh
61246	61246-02170	Reinforcement, Roof Side Rail, Outer Lh
61306	61306-02100	Reinforce Sub-Assy, Center Body Pillar, Lower Lh
61312	61312-02250	Pillar, Center Body, Outer Lh
61312	61312-02251	Pillar, Center Body, Outer Lh
61404	61404-02150	Reinforce Sub-Assy, Rocker, Outer Lh
61504	61504-02140	Reinforcement Sub-Assy, Quarter Lock Pillar, Lh
61604	61604-02020	Panel Sub-Assy, Quarter Wheel House, Lh
61608	61608-02510	Panel Sub-Assy, Quarter Wheel House, Inner Lh
61612	61602-02400	Panel, Quarter, Lh
61612	61602-02401	Panel, Quarter, Lh
61632	61606-02090	Panel, Quarter Wheel House, Outer Lh
61654	61654-02030	Bracket, Deck Side Trim, Lh
61712	61712-02090	Panel, Roof Side, Outer Lh
61714	61714-02040	Reinforce, Roof Side, Outer Lh
61732	61732-02240	Panel, Roof Side, Inner Lh
61736	61736-02140	Panel, Roof Side, Inner Rear Lh
61744	61744-02040	Reinforcement, Back Door Opening Side, Lh
61767	61767-02040	Reinforcement, Belt Anchor To Roof Side, Inner Lh
61824	61824-02280	Plate, Noise Control, No.1
61824	61824-52030	Plate, Noise Control, No.1
61824	61824-02220	Plate, Noise Control, No.1
61825	61825-02020	Plate, Noise Control, No.2
61825	61825-02030	Pad, Noise Shutter, No.2
61827	61827-02030	Plate, Noise Control, No.4
62554	62554-02190	Pad, Pillar, No.4 - COWL SIDE SILENCER, NO.2
65632	65632-02200	Plate, Rear Whell House, Front Lh
65638	65638-02080	Liner, Rear Wheel House, Lh
82715	82715-20350	Bracket, Wiring Harness Clamp
90105	90105-W0009	New Genuine Part
90119	90119-W0048	New Genuine Part
90119	90119-W0127	New Genuine Part
90178	90178-W0039	New Genuine Part
7270270010	72702-70010	Bracket Sub-assy, Rear Seat Back Striker
9015960602	90159-60602	SCREW
9017906308	90179-06308	NUT
9018906013	90189-06013	CLIP
9018906211	90189-06211	GROMMET SCREW
9018906230	90189-06230	GROMMET SCREW
9046706121	90467-06121	Clip, Rear Bumper Side
9046707201	90467-07201	Clamp(For Cool Air Intake)
9151580818	91515-80818	New Genuine Part

OEM	Part name	Category
55714-02120	Panel, Cowl Top Side, Lh	Side Member ([10.2012 - ] LH (1210- )HB)
58742-02150	Protector, Quarter Panel, Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61024-02250	Pillar Sub-Assy, Front Body, Inner Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61034-02040	Reinforce Sub-Assy, Back Door Opening Side, Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61038-02200	Reinforcement Sub-Assy, Center Body Pillar, Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61104-02090	Reinforcement Sub-Assy, Cowl Side, Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61109-02180	Reinforce Sub-Assy, Front Body Pillar, Lower Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61132-02310	Pillar, Front Body, Outer Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61202-02170	Rail Sub-Assy, Roof Side, Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61246-02170	Reinforcement, Roof Side Rail, Outer Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61306-02100	Reinforce Sub-Assy, Center Body Pillar, Lower Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61312-02250	Pillar, Center Body, Outer Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61312-02251	Pillar, Center Body, Outer Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61404-02150	Reinforce Sub-Assy, Rocker, Outer Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61504-02140	Reinforcement Sub-Assy, Quarter Lock Pillar, Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61602-02400	Panel, Quarter, Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61602-02401	Panel, Quarter, Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61604-02020	Panel Sub-Assy, Quarter Wheel House, Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61606-02090	Panel, Quarter Wheel House, Outer Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61608-02510	Panel Sub-Assy, Quarter Wheel House, Inner Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61654-02030	Bracket, Deck Side Trim, Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61712-02090	Panel, Roof Side, Outer Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61714-02040	Reinforce, Roof Side, Outer Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61732-02240	Panel, Roof Side, Inner Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61736-02140	Panel, Roof Side, Inner Rear Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61744-02040	Reinforcement, Back Door Opening Side, Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61767-02040	Reinforcement, Belt Anchor To Roof Side, Inner Lh	Side Member ([10.2012 - ] LH (1210- )HB)
61824-02220	Plate, Noise Control, No.1	Side Member ([10.2012 - ] LH (1210- )HB)
61824-02280	Plate, Noise Control, No.1	Side Member ([10.2012 - ] LH (1210- )HB)
61824-52030	Plate, Noise Control, No.1	Side Member ([10.2012 - ] LH (1210- )HB)
61825-02020	Plate, Noise Control, No.2	Side Member ([10.2012 - ] LH (1210- )HB)
61825-02030	Pad, Noise Shutter, No.2	Side Member ([10.2012 - ] LH (1210- )HB)
61827-02030	Plate, Noise Control, No.4	Side Member ([10.2012 - ] LH (1210- )HB)
62554-02190	Pad, Pillar, No.4 - COWL SIDE SILENCER, NO.2	Side Member ([10.2012 - ] LH (1210- )HB)
65632-02200	Plate, Rear Whell House, Front Lh	Side Member ([10.2012 - ] LH (1210- )HB)
65638-02080	Liner, Rear Wheel House, Lh	Side Member ([10.2012 - ] LH (1210- )HB)
72702-70010	Bracket Sub-assy, Rear Seat Back Striker	Side Member ([10.2012 - ] LH (1210- )HB)
82715-20350	Bracket, Wiring Harness Clamp	Side Member ([10.2012 - ] LH (1210- )HB)
90105-W0009	New Genuine Part	Side Member ([10.2012 - ] LH (1210- )HB)
90119-W0048	New Genuine Part	Side Member ([10.2012 - ] LH (1210- )HB)
90119-W0127	New Genuine Part	Side Member ([10.2012 - ] LH (1210- )HB)
90159-60602	SCREW	Side Member ([10.2012 - ] LH (1210- )HB)
90178-W0039	New Genuine Part	Side Member ([10.2012 - ] LH (1210- )HB)
90179-06308	NUT	Side Member ([10.2012 - ] LH (1210- )HB)
90189-06013	CLIP	Side Member ([10.2012 - ] LH (1210- )HB)
90189-06211	GROMMET SCREW	Side Member ([10.2012 - ] LH (1210- )HB)
90189-06230	GROMMET SCREW	Side Member ([10.2012 - ] LH (1210- )HB)
90467-06121	Clip, Rear Bumper Side	Side Member ([10.2012 - ] LH (1210- )HB)
90467-07201	Clamp(For Cool Air Intake)	Side Member ([10.2012 - ] LH (1210- )HB)
91515-80818	New Genuine Part	Side Member ([10.2012 - ] LH (1210- )HB)
