ADE186

Toyota AURIS-COROLLA · 2012 · 3,724 parts · 214 categories

← Back to categories

3,724 items

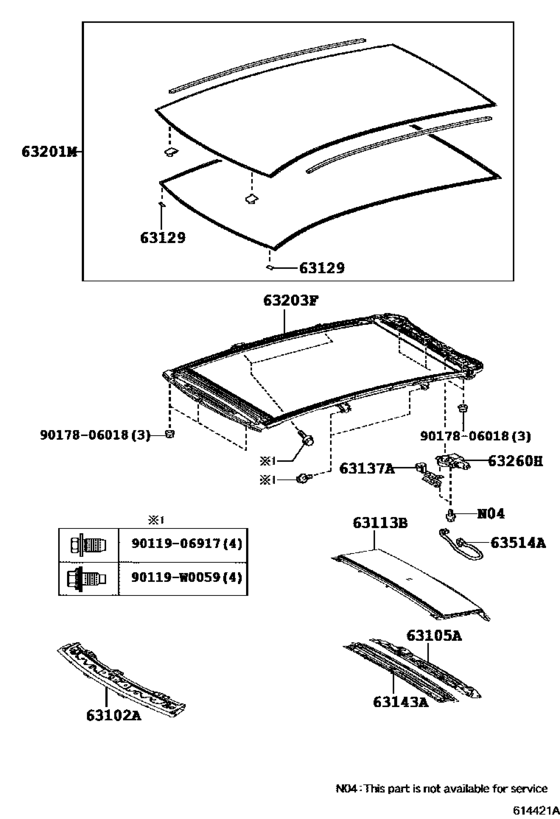

Roof Panel & Back Window Glass ([10.2012 - ] PANORAMA ROOF (1210- )HB) 18

#	OEM	Part name
63102	63102-02220	Panel Sub-Assy, Windshield Header
63102	63102-02230	Panel Sub-Assy, Windshield Header
63105	63105-02050	Frame Sub-Assy, Back Door Opening
63113	63113-02010	Panel, Roof, Rear
63113	63113-02050	Panel, Roof, Rear
63129	63233-02100	Protector, Windshield Header
63137	63137-02180	Bracket, Dome Lamp, No.1
63137	63137-02190	Bracket, Dome Lamp, No.1
63143	63143-02100	Reinforcement, Roof Panel
63143	63143-02110	Reinforcement, Roof Panel
63201	63201-02100	Glass Sub-Assy, Roof Window, No.1
63203	63203-02060-B4	Housing Sub-Assy, Sliding Roof
63203	63203-02061-B4	Housing Sub-Assy, Sliding Roof
63260	63260-12170	Gear Assy, Sliding Roof Drive
63514	63514-12010	Wire, Connector
90119	90119-W0059	New Genuine Part
9011906917	90119-06917	New Genuine Part
9017806018	90178-06018	NUT,FLANGE

OEM	Part name	Category
63102-02220	Panel Sub-Assy, Windshield Header	Roof Panel & Back Window Glass ([10.2012 - ] PANORAMA ROOF (1210- )HB)
63102-02230	Panel Sub-Assy, Windshield Header	Roof Panel & Back Window Glass ([10.2012 - ] PANORAMA ROOF (1210- )HB)
63105-02050	Frame Sub-Assy, Back Door Opening	Roof Panel & Back Window Glass ([10.2012 - ] PANORAMA ROOF (1210- )HB)
63113-02010	Panel, Roof, Rear	Roof Panel & Back Window Glass ([10.2012 - ] PANORAMA ROOF (1210- )HB)
63113-02050	Panel, Roof, Rear	Roof Panel & Back Window Glass ([10.2012 - ] PANORAMA ROOF (1210- )HB)
63137-02180	Bracket, Dome Lamp, No.1	Roof Panel & Back Window Glass ([10.2012 - ] PANORAMA ROOF (1210- )HB)
63137-02190	Bracket, Dome Lamp, No.1	Roof Panel & Back Window Glass ([10.2012 - ] PANORAMA ROOF (1210- )HB)
63143-02100	Reinforcement, Roof Panel	Roof Panel & Back Window Glass ([10.2012 - ] PANORAMA ROOF (1210- )HB)
63143-02110	Reinforcement, Roof Panel	Roof Panel & Back Window Glass ([10.2012 - ] PANORAMA ROOF (1210- )HB)
63201-02100	Glass Sub-Assy, Roof Window, No.1	Roof Panel & Back Window Glass ([10.2012 - ] PANORAMA ROOF (1210- )HB)
63203-02060-B4	Housing Sub-Assy, Sliding Roof	Roof Panel & Back Window Glass ([10.2012 - ] PANORAMA ROOF (1210- )HB)
63203-02061-B4	Housing Sub-Assy, Sliding Roof	Roof Panel & Back Window Glass ([10.2012 - ] PANORAMA ROOF (1210- )HB)
63233-02100	Protector, Windshield Header	Roof Panel & Back Window Glass ([10.2012 - ] PANORAMA ROOF (1210- )HB)
63260-12170	Gear Assy, Sliding Roof Drive	Roof Panel & Back Window Glass ([10.2012 - ] PANORAMA ROOF (1210- )HB)
63514-12010	Wire, Connector	Roof Panel & Back Window Glass ([10.2012 - ] PANORAMA ROOF (1210- )HB)
90119-06917	New Genuine Part	Roof Panel & Back Window Glass ([10.2012 - ] PANORAMA ROOF (1210- )HB)
90119-W0059	New Genuine Part	Roof Panel & Back Window Glass ([10.2012 - ] PANORAMA ROOF (1210- )HB)
90178-06018	NUT,FLANGE	Roof Panel & Back Window Glass ([10.2012 - ] PANORAMA ROOF (1210- )HB)
