Search › Model › ADE186

ADE186

Toyota AURIS-COROLLA · 2012 · 3,724 parts · 214 categories
ADE186 ×

← Back to categories

3,724 items

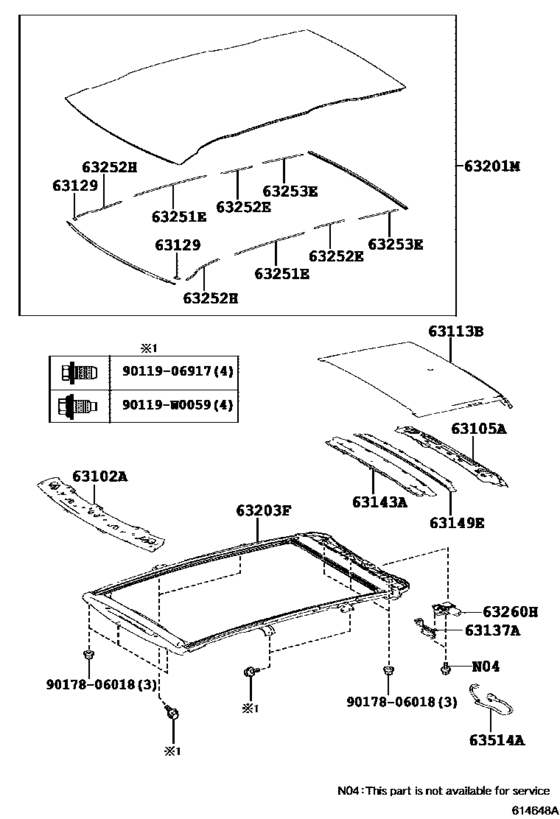

Roof Panel & Back Window Glass ([06.2013 - ] PANORAMA ROOF (1306- )WG) 23
#OEMPart name
63102 63102-02220 Panel Sub-Assy, Windshield Header
63102 63102-02230 Panel Sub-Assy, Windshield Header
63105 63105-02110 Frame Sub-Assy, Back Door Opening
63105 63105-02111 Frame Sub-Assy, Back Door Opening
63113 63113-02020 Panel, Roof, Rear
63113 63113-02021 Panel, Roof, Rear
63129 63233-02100 Protector, Windshield Header
63137 63137-02180 Bracket, Dome Lamp, No.1
63137 63137-02190 Bracket, Dome Lamp, No.1
63143 63143-02120 Reinforcement, Roof Panel
63143 63143-02160 Reinforcement, Roof Panel
63149 63149-02030 Bracket, Roof Panel Reinforcement, No.2
63201 63201-02110 Glass Sub-Assy, Roof Window, No.1
63203 63203-02081-B4 Housing Sub-Assy, Sliding Roof
63251 63252-02030 Dam, Roof Window, No.1
63252 63252-02020 Dam, Roof Window, No.2
63252 63252-02010 Dam, Sliding Roof Housing
63253 63252-02040 Dam, Roof Window, No.3
63260 63260-12170 Gear Assy, Sliding Roof Drive
63514 63514-12010 Wire, Connector
90119 90119-W0059 New Genuine Part
9011906917 90119-06917 New Genuine Part
9017806018 90178-06018 NUT,FLANGE
