Search › Model › ADE186
ADE186

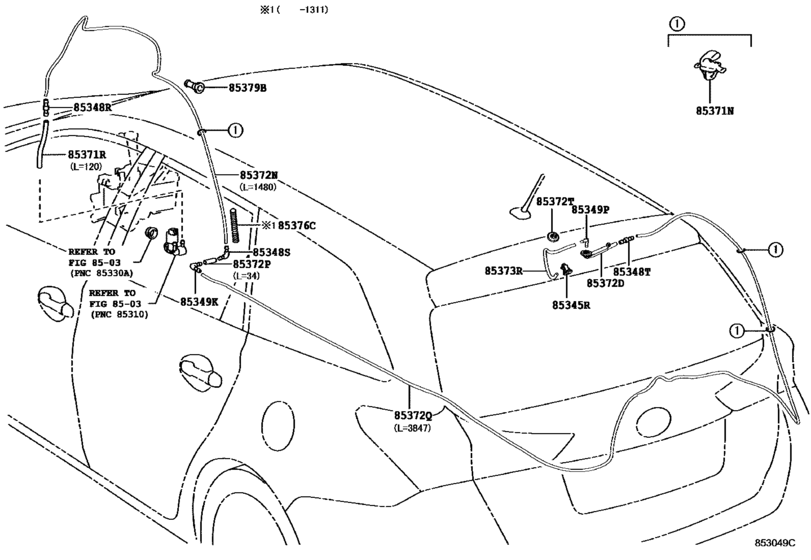

Rear Washer ([06.2013 - ] (1306- )WG) 12
| # | OEM | Part name |
|---|---|---|
| 85345 | 85391-12030 | Nozzle, Rear Washer |
| 85348 | 85375-05050 | Joint, Windshield Washer Hose, No.1 |
| 85348 | 85395-05020 | Joint, Rear Washer Elbow, No.1 |
| 85349 | 85355-20200 | Joint, Windshield Washer Hose, No.1 |
| 85371 | 85371-12040 | Clamp, Rear Washer Hose |
| 85371 | 90069-16009 | Hose, Windshield Washer (From Joint To Joint), No.2 |
| 85372 | 85373-0D022 | Grommet, Rear Washer Hose |
| 85372 | 90069-16010 | Hose, Windshield Washer (From Joint To Joint), No.1 |
| 85372 | 85373-0D010 | Grommet, Washer |
| 85373 | 90099-33299 | Joint, Windshield Washer Elbow, No.2 |
| 85376 | 85389-02400 | Spring, Washer Hose |
| 85379 | 85379-12850 | Grommet, Rear Washer Hose |
| OEM | Part name | Category |
|---|---|---|
| 85355-20200 | Joint, Windshield Washer Hose, No.1 | Rear Washer ([06.2013 - ] (1306- )WG) |
| 85371-12040 | Clamp, Rear Washer Hose | Rear Washer ([06.2013 - ] (1306- )WG) |
| 85373-0D010 | Grommet, Washer | Rear Washer ([06.2013 - ] (1306- )WG) |
| 85373-0D022 | Grommet, Rear Washer Hose | Rear Washer ([06.2013 - ] (1306- )WG) |
| 85375-05050 | Joint, Windshield Washer Hose, No.1 | Rear Washer ([06.2013 - ] (1306- )WG) |
| 85379-12850 | Grommet, Rear Washer Hose | Rear Washer ([06.2013 - ] (1306- )WG) |
| 85389-02400 | Spring, Washer Hose | Rear Washer ([06.2013 - ] (1306- )WG) |
| 85391-12030 | Nozzle, Rear Washer | Rear Washer ([06.2013 - ] (1306- )WG) |
| 85395-05020 | Joint, Rear Washer Elbow, No.1 | Rear Washer ([06.2013 - ] (1306- )WG) |
| 90069-16009 | Hose, Windshield Washer (From Joint To Joint), No.2 | Rear Washer ([06.2013 - ] (1306- )WG) |
| 90069-16010 | Hose, Windshield Washer (From Joint To Joint), No.1 | Rear Washer ([06.2013 - ] (1306- )WG) |
| 90099-33299 | Joint, Windshield Washer Elbow, No.2 | Rear Washer ([06.2013 - ] (1306- )WG) |
