ADE186

Toyota AURIS-COROLLA · 2012 · 3,724 parts · 214 categories

3,724 items

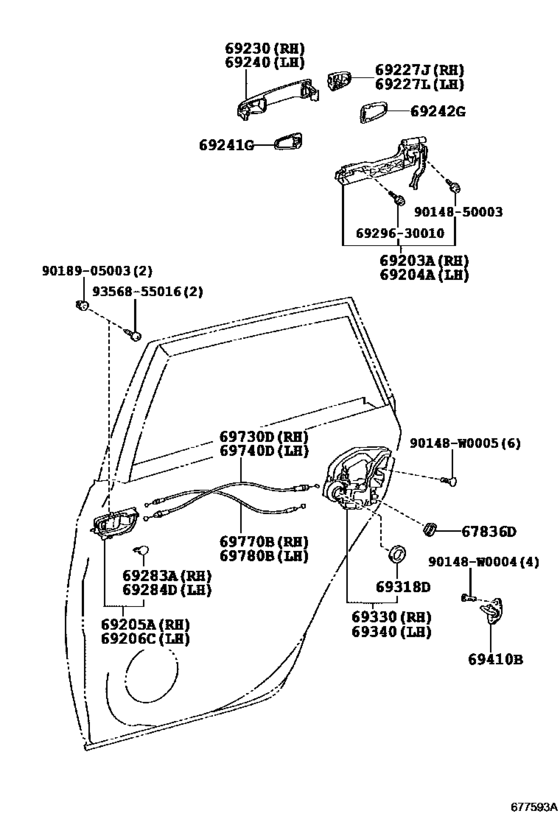

Rear Door Lock & Handle ([10.2012 - ] (1210- )) 24

#	OEM	Part name
67836	67836-02050	Cover, Rear Door Lock Child Protection
69203	69203-02210	Frame Sub-Assy, Rear Door Outside Handle, Rh
69204	69204-02210	Frame Sub-Assy, Rear Door Outside Handle, Lh
69205	69205-02330-C0	Handle Sub-Assy, Front Door Inside, Rh
69206	69206-02300-C0	Handle Sub-Assy, Front Door Inside, Lh
69227	69227-02921	Cover, Rear Door Outside Handle, Rh
69230	69211-02924	Handle Assy, Front Door, Outside Rh
69241	69241-02090	Pad, Rear Door Outside Handle, Front
69242	69242-02080	Pad, Front Door Outside Handle, Rear
69283	69283-0D010-C2	Plug, Front Door Inside Handle Bezel
69318	69318-51010	Seal, Front Door Lock Hole, Rh
69330	69050-05050	Lock Assy, Rear Door W/motor, Rh
69330	69050-05051	Lock Assy, Rear Door W/motor, Rh
69340	69060-05050	Lock Assy, Rear Door W/motor, Lh
69340	69060-05051	Lock Assy, Rear Door W/motor, Lh
69410	69410-20110	Plate Assy, Front Door Lock Striker
69730	69730-02190	Cable Assy, Rear Door Lock Remote Control, Rh
69770	69770-02160	Cable Assy, Rear Door Inside Locking, Rh
90148	90148-W0004	New Genuine Part
90148	90148-W0005	New Genuine Part
6929630010	69296-30010	Screw, Door Inside Handle
9014850003	90148-50003	Screw Hex Lobular
9018905003	90189-05003	CLIP
9356855016	93568-55016	Screw

OEM	Part name	Category
67836-02050	Cover, Rear Door Lock Child Protection	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69050-05050	Lock Assy, Rear Door W/motor, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69050-05051	Lock Assy, Rear Door W/motor, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69060-05050	Lock Assy, Rear Door W/motor, Lh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69060-05051	Lock Assy, Rear Door W/motor, Lh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69203-02210	Frame Sub-Assy, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69204-02210	Frame Sub-Assy, Rear Door Outside Handle, Lh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69205-02330-C0	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69206-02300-C0	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69211-02924	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69227-02921	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69241-02090	Pad, Rear Door Outside Handle, Front	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69242-02080	Pad, Front Door Outside Handle, Rear	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69283-0D010-C2	Plug, Front Door Inside Handle Bezel	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69296-30010	Screw, Door Inside Handle	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69318-51010	Seal, Front Door Lock Hole, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69410-20110	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69730-02190	Cable Assy, Rear Door Lock Remote Control, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
69770-02160	Cable Assy, Rear Door Inside Locking, Rh	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
90148-50003	Screw Hex Lobular	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
90148-W0004	New Genuine Part	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
90148-W0005	New Genuine Part	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
90189-05003	CLIP	Rear Door Lock & Handle ([10.2012 - ] (1210- ))
93568-55016	Screw	Rear Door Lock & Handle ([10.2012 - ] (1210- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 214
Collected: 2026-08-02
