Search › Model › ADE186

ADE186

Toyota AURIS-COROLLA · 2012 · 3,724 parts · 214 categories
ADE186 ×

← Back to categories

3,724 items

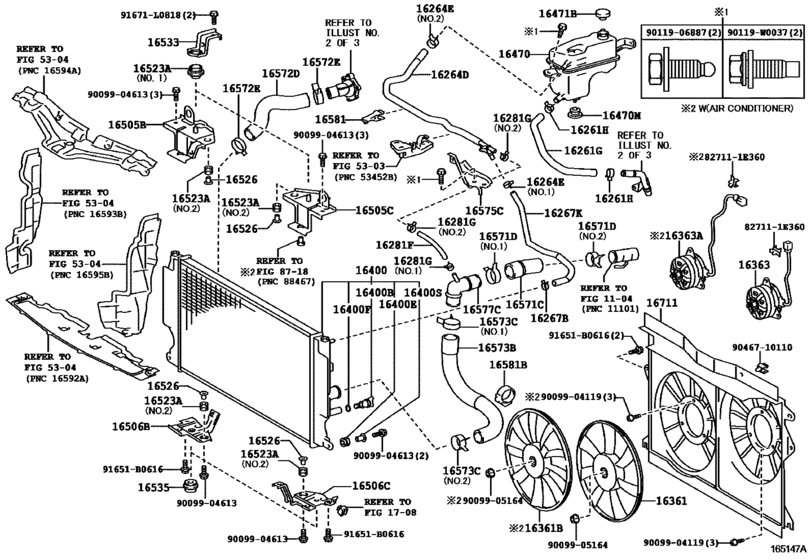

Radiator & Water Outlet ([10.2012 - ] (1210- )1ADFTV) 89
#OEMPart name
0 82711-1E360 Clamp, Wiring Harness
16258 16258-0R030 Gasket(For Water By-Pass Pipe)
16261 16261-0R070 Hose, Water By-Pass, No.1
16261 90466-W0007 Clip(For Water By-Pass Hose No.1)
16261 96136-42501 Clip(For Ventilation Hose)
16261 16261-0R081 Hose, Water By-Pass - WATER BY-PASS, NO.1
16261 90467-21006 Clip(For Ventilation Hose No.2)
16264 16264-0Y030 Hose, Water By-Pass, No.2
16264 90467-15022 Clip Or Clamp(For Ventilation Hose)
16264 96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)
16264 16264-0R030 Hose, Water By-Pass, No.2
16267 16267-0R040 Hose, Water By-Pass, No.3
16267 16267-0R070 Hose, Water By-Pass, No.3
16278 16278-0R020 Pipe, Water By-Pass, No.2
16278 16258-0R020 Gasket(For Water By-Pass Pipe)
16279 16279-0R060 Pipe, Water By-Pass, No.3
16279 16279-0R061 Pipe, Water By-Pass, No.3
16279 16296-0R020 Hose, Water By-Pass, No.8
16281 16281-0R040 Hose, Water By-Pass, No.5
16281 96136-41901 Clip Or Clamp(For Ventilation Hose)
16281 16281-0R010 Hose, Water By-Pass, No.4
16281 16281-0R030 Hose, Water By-Pass, No.4
16281 90467-21010 Clip(For Ventilation Hose No.2)
16281 96134-52100 Clip(For Ventilation Hose)
16281 96136-42201 Clip(For Ventilation Hose No.2)
16283 16283-0R010 Hose, Water By-Pass, No.6
16283 96136-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)
16288 16288-0R020 Pipe, Water By-Pass, No.4
16295 16295-0R010 Hose, Water By-Pass, No.7
16296 16296-26020 Hose, Water By-Pass, No.8
16321 16321-0R020 Inlet, Water
16321 16321-26030 Inlet, Water
16323 16323-0R011 Housing, Water Inlet
16323 16323-26010 Housing, Water Inlet
16325 16325-26011 Gasket, Water Inlet Housing, No.1
16325 16325-62010 Gasket, Water Inlet Housing, No.1
16326 16326-26011 Gasket, Water Inlet Housing, No.2
16326 16326-26020 Gasket, Water Inlet Housing, No.2
16331 90916-03125 Thermostat
16361 16361-0R020 Fan
16361 16361-0R030 Fan, No.2
16363 16363-0R020 Motor, Cooling Fan
16363 16363-0R030 Motor, Cooling Fan, No.2
16400 16400-0R030 Radiator Assy
16400 16417-0Q040 Plug, Radiator Drain Cock
16400 16523-0R020 Bush(For Radiator) - RADIATOR SUPPORT
16400 16492-21050 Ring, O(For Oil Cooler Drain Cock)
16400 16526-0R010 Collar(For Radiator) - RADIATOR SUPPORT
16470 16480-26030 Tank Assy, Radiator Reserve
16470 90480-18010 Grommet, Radiator Reserve Tank Hose
16471 16475-37010 Cap Sub-Assy, Radiator Reserve Tank
16471 16475-28140 Cap Sub-Assy, Radiator Reserve Tank
16471 16475-37011 Cap Sub-Assy, Radiator Reserve Tank
16505 16505-0R020 Support Sub-Assy, Radiator, Upper Rh
16505 16505-0R010 Support Sub-Assy, Radiator, Upper Lh
16506 16506-0R070 Support Sub-Assy, Radiator, Lower Rh
16506 16506-0R010 Support Sub-Assy, Radiator, Lower Lh
16523 16523-0R010 Cushion, Radiator Support
16533 16533-0R040 Support, Radiator, Upper
16535 16535-0R050 Support, Radiator, Lower
16571 16571-0R040 Hose, Radiator, No.1
16571 90467-41005 Clamp Or Clip, Sub Radiator Hose
16571 96136-44801 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90467-43002 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-0R080 Hose, Radiator, No.2
16573 16573-0R020 Hose, Radiator, No.3
16575 16575-0Y010 Bracket, Water Hose Clamp, No.1
16577 16577-0R010 Pipe, Radiator
16581 16581-36020 Clamp, Hose(For Radiator Hose)
16581 16581-28070 Clamp, Hose(For Water Hose)
16711 16711-0R060 Shroud, Fan
90105 90105-W0032 New Genuine Part
90105 90105-W0033 New Genuine Part
90105 90105-W0112 BOLT FLANGE
90105 90105-W0129 New Genuine Part
90119 90119-W0037 Bolt, W/washer
90178 90178-W0019 Nut, Cap(For Cylinder Head Cover)
91651 91651-B0616 BOLT WWASHER
91671 91671-L0818 New Genuine Part
9009904119 90099-04119 BOLT WASHER HEAD
9009904613 90099-04613 New Genuine Part
9009905164 90099-05164 Nut
9011906887 90119-06887 New Genuine Part
9012606026 90126-06026 Bolt, Stud(Manifold To Throttle Body)
9030116013 90301-16013 New Genuine Part
9046710110 90467-10110 New Genuine Part
9155180625 91551-80625 Bolt(For Camshaft Housing Set)
9155180630 91551-80630 Bolt(For Cylinder Head Cover)
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
