Search › Model › ADE186

ADE186

Toyota AURIS-COROLLA · 2012 · 3,724 parts · 214 categories

3,724 items

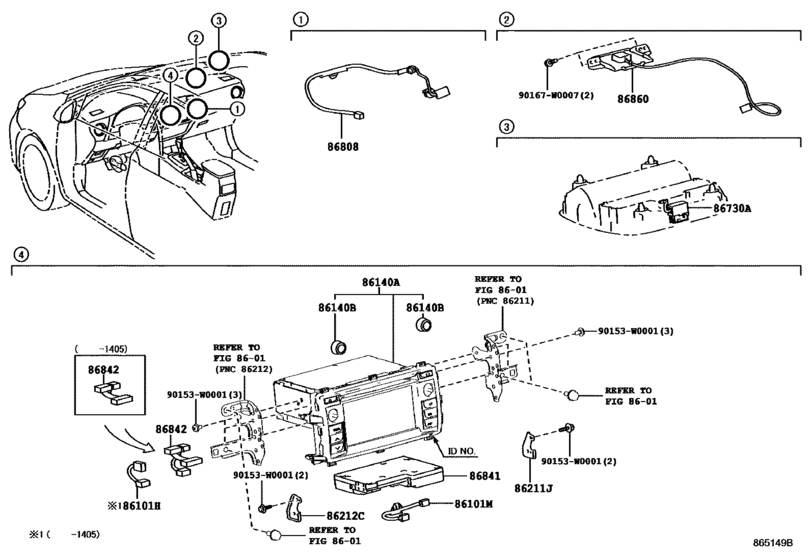

Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505)) 38

#	OEM	Part name
86101	86101-YY070	Cord Sub-Assy, Antenna
86101	86705-02070	Cord Sub-Assy, Antenna
86101	86705-YY030	Cord Sub-Assy, Antenna
86140	86140-02010	Receiver Assy, Radio & Display
86140	86140-02030	Receiver Assy, Radio & Display
86140	86140-02280	Receiver Assy, Radio & Display
86140	86140-02290	Receiver Assy, Radio & Display
86140	86140-02320	Receiver Assy, Radio & Display
86140	86140-02330	Receiver Assy, Radio & Display
86140	90011-25205	Knob, Radio & Display Receiver Switch
86211	86211-02270	Bracket, Radio Receiver, No.1
86212	86212-02240	Bracket, Radio Receiver, No.2
86730	86730-02010	Microphone Assy, Telephone
86808	86808-02060	Cord Sub-Assy, Navigation Antenna, No.1
86808	86808-02061	Cord Sub-Assy, Navigation Antenna, No.1
86841	86840-05010	Computer, Navigation
86841	86840-05011	Computer, Navigation
86841	86840-0W012	Computer, Navigation
86841	86840-0W013	Computer, Navigation
86841	86840-YY131	Computer, Navigation
86841	86840-YY132	Computer, Navigation
86841	86840-YY133	Computer, Navigation
86841	86840-YY141	Computer, Navigation
86841	86840-YY143	Computer, Navigation
86841	86840-YY142	Computer, Navigation
86841	86840-02013	Computer, Navigation
86841	86840-02014	Computer, Navigation
86841	86840-05020	Computer, Navigation
86841	86840-05021	Computer, Navigation
86841	86840-YY130	Computer, Navigation
86841	86840-YY140	Computer, Navigation
86841	86840-YY150	Computer, Navigation
86842	86842-12010	Wire, Navigation, No.1
86842	86842-YY010	Wire, Navigation, No.1
86860	86860-02010	Antenna Assy, Navigation
90153	90153-W0001	New Genuine Part
90153	90153-50010	BOLT
90167	90167-W0007	New Genuine Part

OEM	Part name	Category
86101-YY070	Cord Sub-Assy, Antenna	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86140-02010	Receiver Assy, Radio & Display	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86140-02030	Receiver Assy, Radio & Display	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86140-02280	Receiver Assy, Radio & Display	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86140-02290	Receiver Assy, Radio & Display	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86140-02320	Receiver Assy, Radio & Display	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86140-02330	Receiver Assy, Radio & Display	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86211-02270	Bracket, Radio Receiver, No.1	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86212-02240	Bracket, Radio Receiver, No.2	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86705-02070	Cord Sub-Assy, Antenna	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86705-YY030	Cord Sub-Assy, Antenna	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86730-02010	Microphone Assy, Telephone	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86808-02060	Cord Sub-Assy, Navigation Antenna, No.1	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86808-02061	Cord Sub-Assy, Navigation Antenna, No.1	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86840-02013	Computer, Navigation	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86840-02014	Computer, Navigation	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86840-05010	Computer, Navigation	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86840-05011	Computer, Navigation	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86840-05020	Computer, Navigation	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86840-05021	Computer, Navigation	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86840-0W012	Computer, Navigation	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86840-0W013	Computer, Navigation	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86840-YY130	Computer, Navigation	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86840-YY131	Computer, Navigation	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86840-YY132	Computer, Navigation	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86840-YY133	Computer, Navigation	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86840-YY140	Computer, Navigation	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86840-YY141	Computer, Navigation	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86840-YY142	Computer, Navigation	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86840-YY143	Computer, Navigation	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86840-YY150	Computer, Navigation	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86842-12010	Wire, Navigation, No.1	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86842-YY010	Wire, Navigation, No.1	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
86860-02010	Antenna Assy, Navigation	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
90011-25205	Knob, Radio & Display Receiver Switch	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
90153-50010	BOLT	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
90153-W0001	New Genuine Part	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
90167-W0007	New Genuine Part	Navigation & Front Monitor Display ([10.2012 - 05.2015] (1210-1505))
