ADE186

Toyota AURIS-COROLLA · 2012 · 3,724 parts · 214 categories

← Back to categories

3,724 items

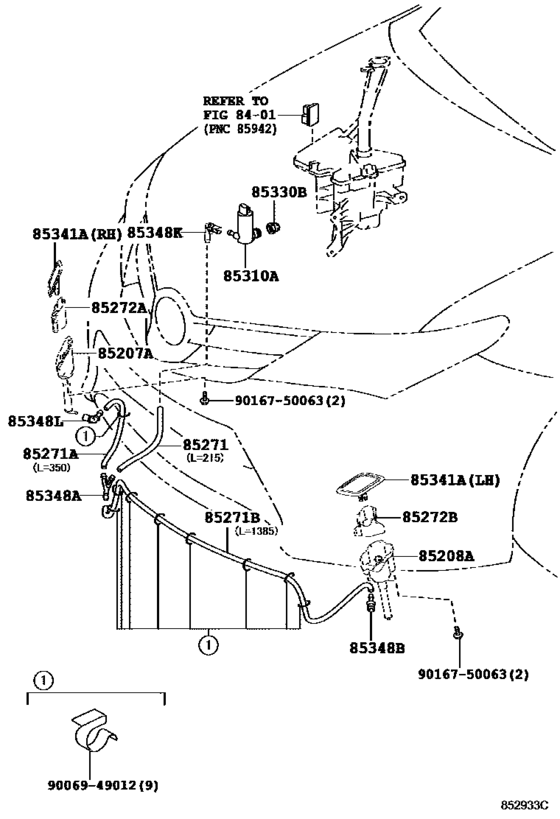

Headlamp Cleaner ([10.2012 - 05.2015] (1210-1505)) 17

#	OEM	Part name
85207	85207-02130	Actuator Sub-Assy, Headlamp Washer, Rh
85208	85208-02130	Actuator Sub-Assy, Headlamp Washer, Lh
85271	85271-0W050	Hose, Headlamp Cleaner, No.1
85271	85271-0W060	Hose, Headlamp Cleaner, No.3
85272	85272-02070	Clamp, Headlamp Cleaner, No.1
85272	85273-02070	Clamp, Headlamp Cleaner, No.2
85310	85280-05050	Motor And Pump Assy, Headlamp Cleaner
85330	90069-20005	Bush, Windshield Washer Jar
85341	85384-02081	Cover, Headlamp Cleaner Washer Nozzle
85341	85394-02081	Cover, Headlamp Cleaner Washer Nozzle
85341	85384-02080	Cover, Headlamp Cleaner Washer Nozzle
85341	85394-02080	Cover, Headlamp Cleaner Washer Nozzle
85348	85287-05110	Joint, Headlamp Cleaner Hose, No.1
85348	85279-05110	Joint, Headlamp Cleaner Hose, No.1
85348	85278-05110	Joint, Headlamp Cleaner Hose, No.2
9006949012	90069-49012	New Genuine Part
9016750063	90167-50063	SCREW PAN TAPPING

OEM	Part name	Category
85207-02130	Actuator Sub-Assy, Headlamp Washer, Rh	Headlamp Cleaner ([10.2012 - 05.2015] (1210-1505))
85208-02130	Actuator Sub-Assy, Headlamp Washer, Lh	Headlamp Cleaner ([10.2012 - 05.2015] (1210-1505))
85271-0W050	Hose, Headlamp Cleaner, No.1	Headlamp Cleaner ([10.2012 - 05.2015] (1210-1505))
85271-0W060	Hose, Headlamp Cleaner, No.3	Headlamp Cleaner ([10.2012 - 05.2015] (1210-1505))
85272-02070	Clamp, Headlamp Cleaner, No.1	Headlamp Cleaner ([10.2012 - 05.2015] (1210-1505))
85273-02070	Clamp, Headlamp Cleaner, No.2	Headlamp Cleaner ([10.2012 - 05.2015] (1210-1505))
85278-05110	Joint, Headlamp Cleaner Hose, No.2	Headlamp Cleaner ([10.2012 - 05.2015] (1210-1505))
85279-05110	Joint, Headlamp Cleaner Hose, No.1	Headlamp Cleaner ([10.2012 - 05.2015] (1210-1505))
85280-05050	Motor And Pump Assy, Headlamp Cleaner	Headlamp Cleaner ([10.2012 - 05.2015] (1210-1505))
85287-05110	Joint, Headlamp Cleaner Hose, No.1	Headlamp Cleaner ([10.2012 - 05.2015] (1210-1505))
85384-02080	Cover, Headlamp Cleaner Washer Nozzle	Headlamp Cleaner ([10.2012 - 05.2015] (1210-1505))
85384-02081	Cover, Headlamp Cleaner Washer Nozzle	Headlamp Cleaner ([10.2012 - 05.2015] (1210-1505))
85394-02080	Cover, Headlamp Cleaner Washer Nozzle	Headlamp Cleaner ([10.2012 - 05.2015] (1210-1505))
85394-02081	Cover, Headlamp Cleaner Washer Nozzle	Headlamp Cleaner ([10.2012 - 05.2015] (1210-1505))
90069-20005	Bush, Windshield Washer Jar	Headlamp Cleaner ([10.2012 - 05.2015] (1210-1505))
90069-49012	New Genuine Part	Headlamp Cleaner ([10.2012 - 05.2015] (1210-1505))
90167-50063	SCREW PAN TAPPING	Headlamp Cleaner ([10.2012 - 05.2015] (1210-1505))
