Search › Model › ADE186

ADE186

Toyota AURIS-COROLLA · 2012 · 3,724 parts · 214 categories

3,724 items

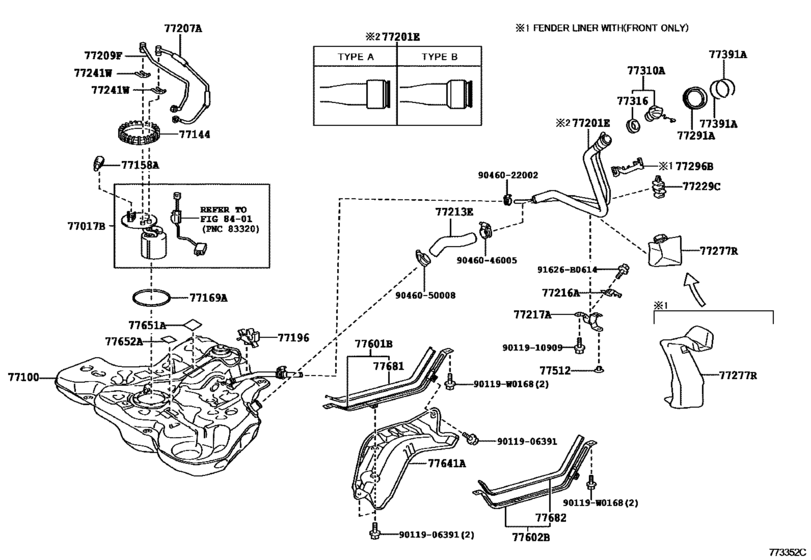

Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186) 43

#	OEM	Part name
77017	77010-02060	Tube Sub-Assy, Fuel Tank Vent
77017	77010-02061	Tube Sub-Assy, Fuel Tank Vent
77100	77001-02390	Tank Assy, Fuel
77144	77144-02110	Retainer, Fuel Pump Gauge
77158	77158-0D020	Support, Tank Suction Tube
77169	77169-0D030	Gasket, Fuel Suction Tube Set
77196	77196-02050	Clamp, Evaporation Vent Tube, No.1
77201	77201-02500	Pipe Sub-Assy, Fuel Tank Filler
77201	77201-12860	Pipe Sub-Assy, Fuel Tank Filler
77207	77204-02050	Tube Sub-Assy, Fuel Return
77209	77209-02090	Tube Sub-Assy, Fuel Tank Main
77213	77213-02220	Hose, Fuel Tank To Filler Pipe
77213	77213-20190	Hose, Fuel Tank To Filler Pipe
77216	77216-02170	Support, Fuel Tank Filler Pipe, No.1
77216	77216-12190	Support, Fuel Reservoir Filler Pipe, No.1
77217	77217-02140	Support, Fuel Tank Filler Pipe, No.2
77217	77217-47080	Support, Fuel Reservoir Filler Pipe, No.2
77229	77229-12070	Clamp, Breather Tube
77241	77241-32060	Clip, Tube Joint
77277	77277-02120	Protector, Fuel Tank Filler Pipe
77277	77277-12180	Protector, Fuel Tank Filler Pipe
77291	77291-02080	Shield, Fuel Tank Filler Pipe
77296	77296-52030	Support, Fuel Tube Protector, No.1
77310	77300-12030	Cap Assy, Fuel Tank (For Diesel)
77310	77300-20020	Cap Assy, Fuel Tank
77316	77316-52040	Gasket, Fuel Tank Cap
77391	77391-12020	Ring, Fuel Inlet Box
77512	77512-35140	Bracket, Fuel Tank
77601	77601-05050	Band Sub-Assy, Fuel Tank, No.1 Rh
77602	77602-02120	Band Sub-Assy, Fuel Tank, No.1 Lh
77641	77641-02070	Protector, Fuel Tank, No.1
77651	77651-12070	Cushion, Fuel Tank, No.1
77652	77652-45020	Cushion, Fuel Tank, No.2
77681	77681-05010	Seat, Fuel Tank Band, Rh
77682	77681-05020	Seat, Fuel Tank Band, Lh
90119	90119-W0168	New Genuine Part
91626	91626-B0614	BOLT, W/WASHER
9011906391	90119-06391	Bolt, W/Washer
9011910909	90119-10909	Bolt
9046022002	90460-22002	CLAMP
9046022002	90460-22001	CLAMP
9046046005	90460-46005	Clamp (For Fuel Filler Pipe)
9046050008	90460-50008	Clamp (For Fuel Filler Pipe)

OEM	Part name	Category
77001-02390	Tank Assy, Fuel	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77010-02060	Tube Sub-Assy, Fuel Tank Vent	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77010-02061	Tube Sub-Assy, Fuel Tank Vent	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77144-02110	Retainer, Fuel Pump Gauge	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77158-0D020	Support, Tank Suction Tube	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77169-0D030	Gasket, Fuel Suction Tube Set	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77196-02050	Clamp, Evaporation Vent Tube, No.1	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77201-02500	Pipe Sub-Assy, Fuel Tank Filler	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77201-12860	Pipe Sub-Assy, Fuel Tank Filler	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77204-02050	Tube Sub-Assy, Fuel Return	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77209-02090	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77213-02220	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77213-20190	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77216-02170	Support, Fuel Tank Filler Pipe, No.1	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77216-12190	Support, Fuel Reservoir Filler Pipe, No.1	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77217-02140	Support, Fuel Tank Filler Pipe, No.2	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77217-47080	Support, Fuel Reservoir Filler Pipe, No.2	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77229-12070	Clamp, Breather Tube	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77241-32060	Clip, Tube Joint	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77277-02120	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77277-12180	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77291-02080	Shield, Fuel Tank Filler Pipe	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77296-52030	Support, Fuel Tube Protector, No.1	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77300-12030	Cap Assy, Fuel Tank (For Diesel)	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77300-20020	Cap Assy, Fuel Tank	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77316-52040	Gasket, Fuel Tank Cap	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77391-12020	Ring, Fuel Inlet Box	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77512-35140	Bracket, Fuel Tank	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77601-05050	Band Sub-Assy, Fuel Tank, No.1 Rh	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77602-02120	Band Sub-Assy, Fuel Tank, No.1 Lh	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77641-02070	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77651-12070	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77652-45020	Cushion, Fuel Tank, No.2	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77681-05010	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
77681-05020	Seat, Fuel Tank Band, Lh	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
90119-06391	Bolt, W/Washer	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
90119-10909	Bolt	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
90119-W0168	New Genuine Part	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
90460-22001	CLAMP	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
90460-22002	CLAMP	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
90460-50008	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
91626-B0614	BOLT, W/WASHER	Fuel Tank & Tube ([10.2012 - ] FUEL TANK (1210- )ADE186)
