ADE186

Toyota AURIS-COROLLA · 2012 · 3,724 parts · 214 categories

← Back to categories

3,724 items

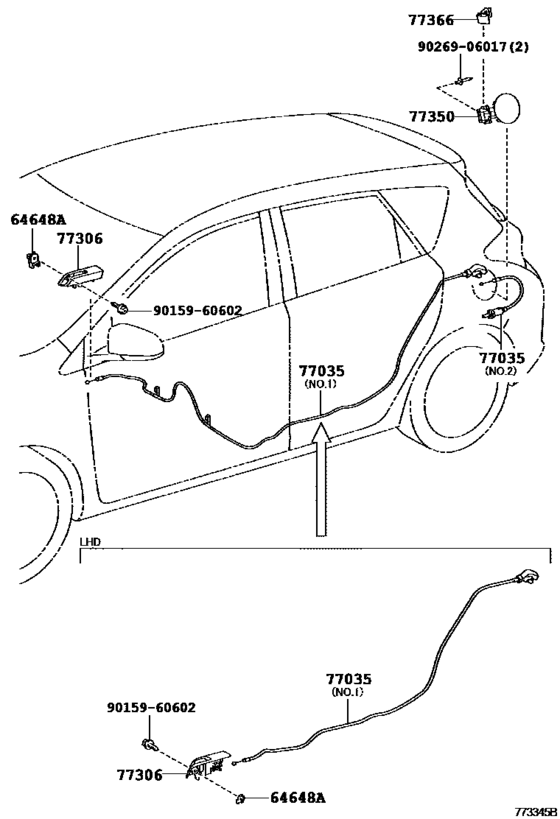

Fuel Tank & Tube ([10.2012 - ] FUEL LID OPENER (1210- )HB) 9

#	OEM	Part name
64648	64648-12020	Grommet, Luggage Door Lock Opener
77035	77035-02330	Cable Sub-Assy, Fuel Lid Lock Control
77035	77035-02340	Cable Sub-Assy, Fuel Lid Lock Control
77306	77306-0D120	Lever Sub-Assy, Fuel Lid Lock Open
77306	77306-52060	Lever Sub-Assy, Fuel Lid Lock Open
77350	77350-02100	Lid Assy, Fuel Filler Opening
77366	77366-52010	Spring, Fuel Filler Opening Lid Hinge
9015960602	90159-60602	SCREW
9026906017	90269-06017	RIVET

OEM	Part name	Category
64648-12020	Grommet, Luggage Door Lock Opener	Fuel Tank & Tube ([10.2012 - ] FUEL LID OPENER (1210- )HB)
77035-02330	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([10.2012 - ] FUEL LID OPENER (1210- )HB)
77035-02340	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([10.2012 - ] FUEL LID OPENER (1210- )HB)
77306-0D120	Lever Sub-Assy, Fuel Lid Lock Open	Fuel Tank & Tube ([10.2012 - ] FUEL LID OPENER (1210- )HB)
77306-52060	Lever Sub-Assy, Fuel Lid Lock Open	Fuel Tank & Tube ([10.2012 - ] FUEL LID OPENER (1210- )HB)
77350-02100	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([10.2012 - ] FUEL LID OPENER (1210- )HB)
77366-52010	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([10.2012 - ] FUEL LID OPENER (1210- )HB)
90159-60602	SCREW	Fuel Tank & Tube ([10.2012 - ] FUEL LID OPENER (1210- )HB)
90269-06017	RIVET	Fuel Tank & Tube ([10.2012 - ] FUEL LID OPENER (1210- )HB)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 214
Collected: 2026-08-02
