ADE186

Toyota AURIS-COROLLA · 2012 · 3,724 parts · 214 categories

← Back to categories

3,724 items

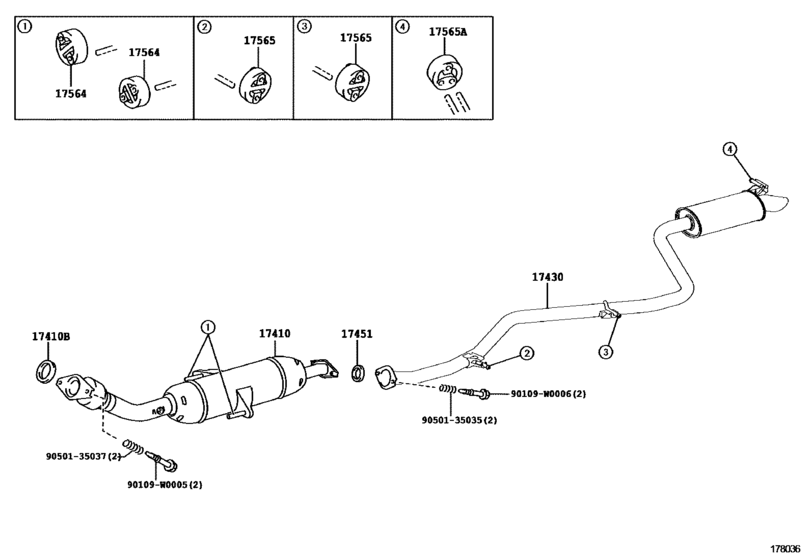

Exhaust Pipe ([06.2013 - ] (1306- )1ADFTV..WG) 11

#	OEM	Part name
17410	17410-0R220	Pipe Assy, Exhaust, Front
17410	17451-0R010	Gasket, Exhaust Pipe
17430	17430-0R140	Pipe Assy, Exhaust, Tail
17451	17451-0D112	Gasket, Exhaust Pipe
17564	17565-0J031	Support, Exhaust Pipe, No.3 - EXHAUST PIPE, NO.4
17565	17565-0D100	Support, Exhaust Pipe, No.2 - EXHAUST PIPE, NO.5
17565	17565-64180	Support, Exhaust Pipe, No.3
90109	90109-W0005	BOLT
90109	90109-W0006	BOLT
9050135035	90501-35035	Spring, Exhaust Pipe
9050135037	90501-35037	Spring, Exhaust Pipe

OEM	Part name	Category
17410-0R220	Pipe Assy, Exhaust, Front	Exhaust Pipe ([06.2013 - ] (1306- )1ADFTV..WG)
17430-0R140	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([06.2013 - ] (1306- )1ADFTV..WG)
17451-0D112	Gasket, Exhaust Pipe	Exhaust Pipe ([06.2013 - ] (1306- )1ADFTV..WG)
17451-0R010	Gasket, Exhaust Pipe	Exhaust Pipe ([06.2013 - ] (1306- )1ADFTV..WG)
17565-0D100	Support, Exhaust Pipe, No.2 - EXHAUST PIPE, NO.5	Exhaust Pipe ([06.2013 - ] (1306- )1ADFTV..WG)
17565-0J031	Support, Exhaust Pipe, No.3 - EXHAUST PIPE, NO.4	Exhaust Pipe ([06.2013 - ] (1306- )1ADFTV..WG)
17565-64180	Support, Exhaust Pipe, No.3	Exhaust Pipe ([06.2013 - ] (1306- )1ADFTV..WG)
90109-W0005	BOLT	Exhaust Pipe ([06.2013 - ] (1306- )1ADFTV..WG)
90109-W0006	BOLT	Exhaust Pipe ([06.2013 - ] (1306- )1ADFTV..WG)
90501-35035	Spring, Exhaust Pipe	Exhaust Pipe ([06.2013 - ] (1306- )1ADFTV..WG)
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([06.2013 - ] (1306- )1ADFTV..WG)
