ADE186

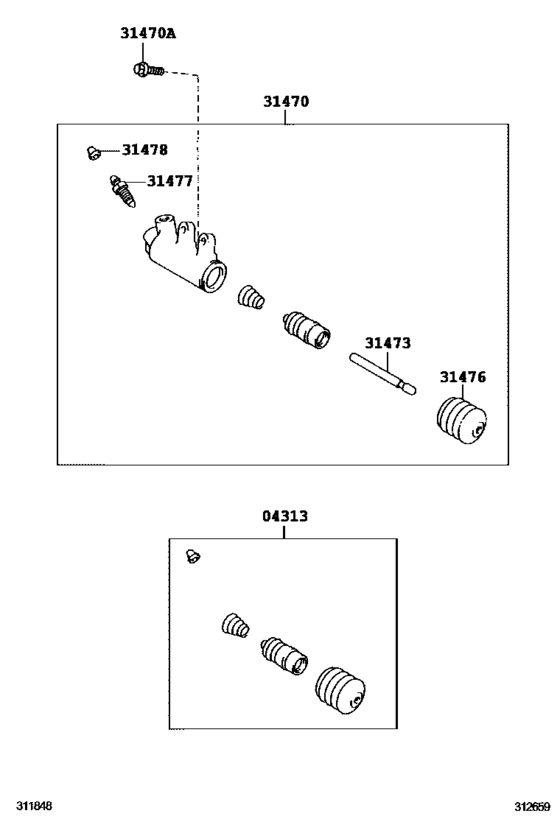

Clutch Release Cylinder ([10.2012 - 05.2015] (1210-1505)ADE186) 7
| # | OEM | Part name |
|---|---|---|
| 4313 | 04313-53010 | Cylinder Kit, Clutch Release |
| 31470 | 31470-12190 | Cylinder Assy, Clutch Release |
| 31470 | 91611-60822 | Bolt |
| 31473 | 31473-20031 | Rod, Clutch Release Cylinder Push, No.1 |
| 31476 | 31476-22010 | Boot, Clutch Release Cylinder |
| 31477 | 47547-20010 | Plug, Bleeder(For Release Cylinder) |
| 31478 | 31478-30010 | Bleeder Plug Cap |
| OEM | Part name | Category |
|---|---|---|
| 04313-53010 | Cylinder Kit, Clutch Release | Clutch Release Cylinder ([10.2012 - 05.2015] (1210-1505)ADE186) |
| 31470-12190 | Cylinder Assy, Clutch Release | Clutch Release Cylinder ([10.2012 - 05.2015] (1210-1505)ADE186) |
| 31473-20031 | Rod, Clutch Release Cylinder Push, No.1 | Clutch Release Cylinder ([10.2012 - 05.2015] (1210-1505)ADE186) |
| 31476-22010 | Boot, Clutch Release Cylinder | Clutch Release Cylinder ([10.2012 - 05.2015] (1210-1505)ADE186) |
| 31478-30010 | Bleeder Plug Cap | Clutch Release Cylinder ([10.2012 - 05.2015] (1210-1505)ADE186) |
| 47547-20010 | Plug, Bleeder(For Release Cylinder) | Clutch Release Cylinder ([10.2012 - 05.2015] (1210-1505)ADE186) |
| 91611-60822 | Bolt | Clutch Release Cylinder ([10.2012 - 05.2015] (1210-1505)ADE186) |
