Search › Model › ADE186
ADE186

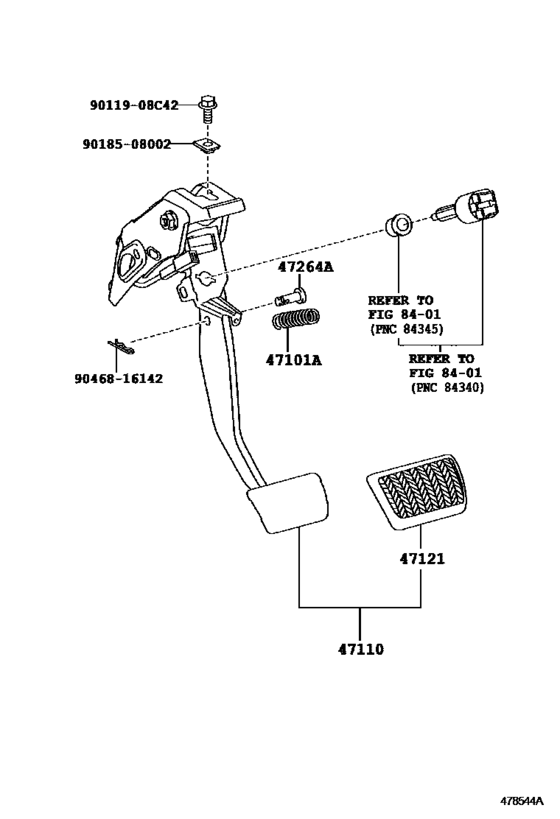

Brake Pedal & Bracket ([10.2012 - ] (1210- )ADE186) 7
| # | OEM | Part name |
|---|---|---|
| 47101 | 90507-15007 | Spring(For Brake Pedal Return) |
| 47110 | 47110-02580 | Support Assy, Brake Pedal |
| 47121 | 31321-42010 | Pad, Clutch Pedal |
| 47264 | 90249-06187 | Pin(For Push Rod) |
| 9011908 | 90119-08C42 | New Genuine Part |
| 9018508002 | 90185-08002 | New Genuine Part |
| 9046816142 | 90468-16142 | Clip(For Push Rod Clevis Pin) |
| OEM | Part name | Category |
|---|---|---|
| 31321-42010 | Pad, Clutch Pedal | Brake Pedal & Bracket ([10.2012 - ] (1210- )ADE186) |
| 47110-02580 | Support Assy, Brake Pedal | Brake Pedal & Bracket ([10.2012 - ] (1210- )ADE186) |
| 90119-08C42 | New Genuine Part | Brake Pedal & Bracket ([10.2012 - ] (1210- )ADE186) |
| 90185-08002 | New Genuine Part | Brake Pedal & Bracket ([10.2012 - ] (1210- )ADE186) |
| 90249-06187 | Pin(For Push Rod) | Brake Pedal & Bracket ([10.2012 - ] (1210- )ADE186) |
| 90468-16142 | Clip(For Push Rod Clevis Pin) | Brake Pedal & Bracket ([10.2012 - ] (1210- )ADE186) |
| 90507-15007 | Spring(For Brake Pedal Return) | Brake Pedal & Bracket ([10.2012 - ] (1210- )ADE186) |
