ADE186

Toyota AURIS-COROLLA · 2012 · 3,724 parts · 214 categories

← Back to categories

3,724 items

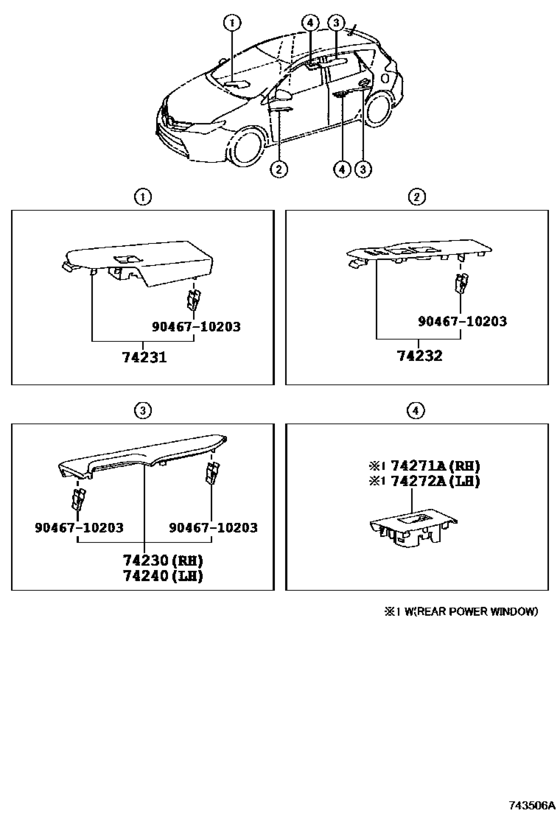

Armrest & Visor ([10.2012 - ] ARMREST (1210- )LHD) 16

#	OEM	Part name
74230	74250-02040-C3	Armrest Assy, Rear, Rh
74230	74250-02070-C4	Armrest Assy, Rear, Rh
74230	74250-02120-C3	Armrest Assy, Rear, Rh
74230	74250-02130-C2	Armrest Assy, Rear, Rh
74231	74231-02D50-C0	Panel, Front Armrest Base, Upper Rh
74231	74231-02D51	Panel, Front Armrest Base, Upper Rh
74232	74232-02E10-C0	Panel, Front Armrest Base, Upper Lh
74232	74232-02E20-C0	Panel, Front Armrest Base, Upper Lh
74232	74232-02E30-C0	Panel, Front Armrest Base, Upper Lh
74240	74260-02030-C3	Armrest Assy, Rear, Lh
74240	74260-02060-C4	Armrest Assy, Rear, Lh
74240	74260-02090-C3	Armrest Assy, Rear, Lh
74240	74260-02100-C2	Armrest Assy, Rear, Lh
74271	74271-02630-C0	Panel, Rear Door Armrest Base, Upper Rh
74272	74272-02630-C0	Panel, Rear Door Armrest Base, Upper Lh
9046710203	90467-10203	Direct

OEM	Part name	Category
74231-02D50-C0	Panel, Front Armrest Base, Upper Rh	Armrest & Visor ([10.2012 - ] ARMREST (1210- )LHD)
74231-02D51	Panel, Front Armrest Base, Upper Rh	Armrest & Visor ([10.2012 - ] ARMREST (1210- )LHD)
74232-02E10-C0	Panel, Front Armrest Base, Upper Lh	Armrest & Visor ([10.2012 - ] ARMREST (1210- )LHD)
74232-02E20-C0	Panel, Front Armrest Base, Upper Lh	Armrest & Visor ([10.2012 - ] ARMREST (1210- )LHD)
74232-02E30-C0	Panel, Front Armrest Base, Upper Lh	Armrest & Visor ([10.2012 - ] ARMREST (1210- )LHD)
74250-02040-C3	Armrest Assy, Rear, Rh	Armrest & Visor ([10.2012 - ] ARMREST (1210- )LHD)
74250-02070-C4	Armrest Assy, Rear, Rh	Armrest & Visor ([10.2012 - ] ARMREST (1210- )LHD)
74250-02120-C3	Armrest Assy, Rear, Rh	Armrest & Visor ([10.2012 - ] ARMREST (1210- )LHD)
74250-02130-C2	Armrest Assy, Rear, Rh	Armrest & Visor ([10.2012 - ] ARMREST (1210- )LHD)
74260-02030-C3	Armrest Assy, Rear, Lh	Armrest & Visor ([10.2012 - ] ARMREST (1210- )LHD)
74260-02060-C4	Armrest Assy, Rear, Lh	Armrest & Visor ([10.2012 - ] ARMREST (1210- )LHD)
74260-02090-C3	Armrest Assy, Rear, Lh	Armrest & Visor ([10.2012 - ] ARMREST (1210- )LHD)
74260-02100-C2	Armrest Assy, Rear, Lh	Armrest & Visor ([10.2012 - ] ARMREST (1210- )LHD)
74271-02630-C0	Panel, Rear Door Armrest Base, Upper Rh	Armrest & Visor ([10.2012 - ] ARMREST (1210- )LHD)
74272-02630-C0	Panel, Rear Door Armrest Base, Upper Lh	Armrest & Visor ([10.2012 - ] ARMREST (1210- )LHD)
90467-10203	Direct	Armrest & Visor ([10.2012 - ] ARMREST (1210- )LHD)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 214
Collected: 2026-08-02
