ADE186

Toyota AURIS-COROLLA · 2012 · 3,724 parts · 214 categories

← Back to categories

3,724 items

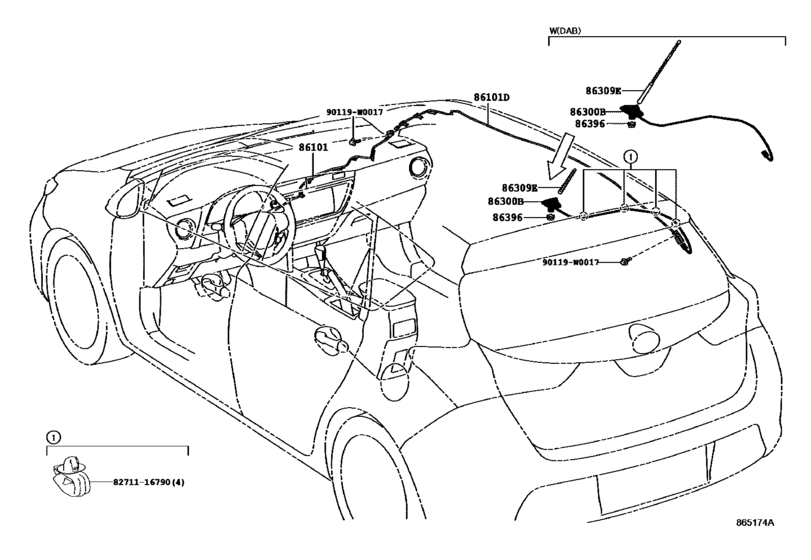

Antenna ([10.2012 - 05.2015] (1210-1505)HB) 14

#	OEM	Part name
86101	86101-02310	Cord Sub-Assy, Antenna
86101	86101-02311	Cord Sub-Assy, Antenna
86101	86101-02510	Cord Sub-Assy, Antenna
86101	86101-02511	Cord Sub-Assy, Antenna
86101	86101-02512	Cord Sub-Assy, Antenna
86101	86101-02280	Cord Sub-Assy, Antenna, No.3
86101	86101-02490	Cord Sub-Assy, Antenna, No.3
86300	86300-02270	Antenna Assy, Amplifier, No.1
86309	86309-02120	Pole Sub-Assy, Roof Antenna
86309	86309-0D110	Pole Sub-Assy, Roof Antenna
86396	86396-47010	Nut, Antenna
90119	90119-W0017	New Genuine Part
90119	90119-06390	BOLT WWASHER
8271116790	82711-16790	Clamp, Wiring Harness

OEM	Part name	Category
82711-16790	Clamp, Wiring Harness	Antenna ([10.2012 - 05.2015] (1210-1505)HB)
86101-02280	Cord Sub-Assy, Antenna, No.3	Antenna ([10.2012 - 05.2015] (1210-1505)HB)
86101-02310	Cord Sub-Assy, Antenna	Antenna ([10.2012 - 05.2015] (1210-1505)HB)
86101-02311	Cord Sub-Assy, Antenna	Antenna ([10.2012 - 05.2015] (1210-1505)HB)
86101-02490	Cord Sub-Assy, Antenna, No.3	Antenna ([10.2012 - 05.2015] (1210-1505)HB)
86101-02510	Cord Sub-Assy, Antenna	Antenna ([10.2012 - 05.2015] (1210-1505)HB)
86101-02511	Cord Sub-Assy, Antenna	Antenna ([10.2012 - 05.2015] (1210-1505)HB)
86101-02512	Cord Sub-Assy, Antenna	Antenna ([10.2012 - 05.2015] (1210-1505)HB)
86300-02270	Antenna Assy, Amplifier, No.1	Antenna ([10.2012 - 05.2015] (1210-1505)HB)
86309-02120	Pole Sub-Assy, Roof Antenna	Antenna ([10.2012 - 05.2015] (1210-1505)HB)
86309-0D110	Pole Sub-Assy, Roof Antenna	Antenna ([10.2012 - 05.2015] (1210-1505)HB)
86396-47010	Nut, Antenna	Antenna ([10.2012 - 05.2015] (1210-1505)HB)
90119-06390	BOLT WWASHER	Antenna ([10.2012 - 05.2015] (1210-1505)HB)
90119-W0017	New Genuine Part	Antenna ([10.2012 - 05.2015] (1210-1505)HB)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 214
