Search › Model › ADE157

ADE157

Toyota AURIS-COROLLA · 2007 · 4,834 parts · 268 categories

4,834 items

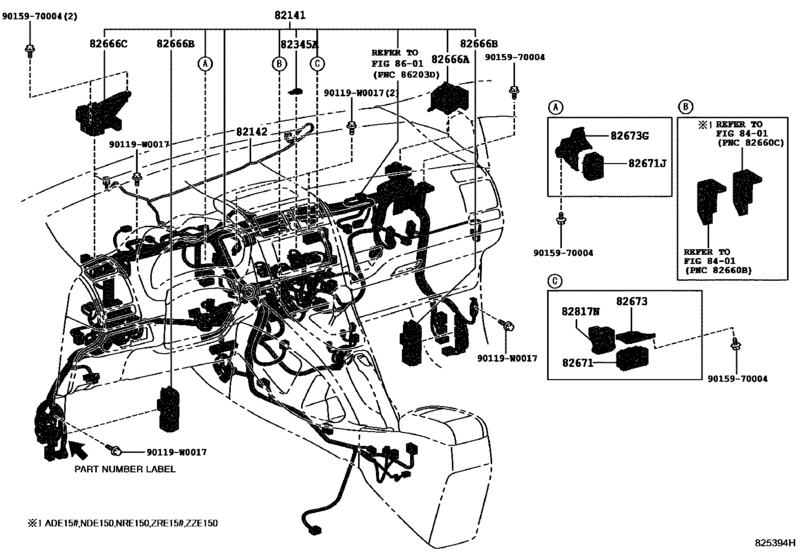

Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD) 56

#	OEM	Part name
82141	82118-0ZZ70	Wire, Instrument Panel
82141	82118-0ZZ71	Wire, Instrument Panel
82141	82138-02880	Wire, Instrument Panel
82141	82138-02890	Wire, Instrument Panel
82141	82138-02A00	Wire, Instrument Panel
82141	82138-02A10	Wire, Instrument Panel
82141	82138-02A20	Wire, Instrument Panel
82141	82138-02A30	Wire, Instrument Panel
82141	82138-02A40	Wire, Instrument Panel
82141	82138-02A50	Wire, Instrument Panel
82141	82138-02A60	Wire, Instrument Panel
82141	82141-0ZE80	Wire, Instrument Panel
82141	82141-0ZE90	Wire, Instrument Panel
82141	82141-0ZF00	Wire, Instrument Panel
82141	82141-0ZF10	Wire, Instrument Panel
82141	82141-0ZF20	Wire, Instrument Panel
82141	82141-0ZF30	Wire, Instrument Panel
82141	82141-0ZF40	Wire, Instrument Panel
82141	82141-0ZF50	Wire, Instrument Panel
82141	82141-0ZF60	Wire, Instrument Panel
82141	82141-0ZF70	Wire, Instrument Panel
82141	82141-0ZF80	Wire, Instrument Panel
82141	82141-0ZF90	Wire, Instrument Panel
82141	82141-0ZG00	Wire, Instrument Panel
82141	82141-0ZG10	Wire, Instrument Panel
82141	82141-0ZG20	Wire, Instrument Panel
82141	82141-0ZG30	Wire, Instrument Panel
82141	82141-0ZG40	Wire, Instrument Panel
82141	82141-0ZG50	Wire, Instrument Panel
82141	82145-0ZB30	Wire, Instrument Panel
82141	82145-0ZB31	Wire, Instrument Panel
82141	82145-0ZB40	Wire, Instrument Panel
82141	82145-0ZB41	Wire, Instrument Panel
82141	82145-0ZB50	Wire, Instrument Panel
82141	82145-0ZB51	Wire, Instrument Panel
82141	82145-0ZB60	Wire, Instrument Panel
82141	82145-0ZB61	Wire, Instrument Panel
82141	82145-0ZB70	Wire, Instrument Panel
82141	82145-0ZC70	Wire, Instrument Panel
82141	82145-0ZC71	Wire, Instrument Panel
82141	82145-0ZC72	Wire, Instrument Panel
82142	82142-02090	Wire, Instrument Panel, No.2
82142	82142-02130	Wire, Instrument Panel, No.2
82142	82142-02250	Wire, Instrument Panel, No.2
82142	82142-02270	Wire, Instrument Panel, No.2
82666	82666-02200	Holder, Connector No.2
82666	82666-02210	Holder, Connector No.2
82666	82666-12380	Holder, Connector No.5 - CONNECTOR NO.4
82671	82671-12260	Block, Junction
82671	82671-12250	Block, Junction, No.2
82673	82673-12140	Bracket, Junction Block
82673	82673-12130	Bracket, Junction Block
82817	82817-12D10	Protector, Wiring Harness, No.10 - WIRING HARNESS, NO.13
90119	90119-W0017	New Genuine Part
90119	90119-06390	BOLT WWASHER
9015970004	90159-70004	SCREW WWASHER

OEM	Part name	Category
82118-0ZZ70	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82118-0ZZ71	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82138-02880	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82138-02890	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82138-02A00	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82138-02A10	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82138-02A20	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82138-02A30	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82138-02A40	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82138-02A50	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82138-02A60	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82141-0ZE80	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82141-0ZE90	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82141-0ZF00	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82141-0ZF10	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82141-0ZF20	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82141-0ZF30	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82141-0ZF40	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82141-0ZF50	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82141-0ZF60	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82141-0ZF70	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82141-0ZF80	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82141-0ZF90	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82141-0ZG00	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82141-0ZG10	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82141-0ZG20	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82141-0ZG30	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82141-0ZG40	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82141-0ZG50	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82142-02090	Wire, Instrument Panel, No.2	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82142-02130	Wire, Instrument Panel, No.2	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82142-02250	Wire, Instrument Panel, No.2	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82142-02270	Wire, Instrument Panel, No.2	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82145-0ZB30	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82145-0ZB31	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82145-0ZB40	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82145-0ZB41	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82145-0ZB50	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82145-0ZB51	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82145-0ZB60	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82145-0ZB61	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82145-0ZB70	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82145-0ZC70	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82145-0ZC71	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82145-0ZC72	Wire, Instrument Panel	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82666-02200	Holder, Connector No.2	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82666-02210	Holder, Connector No.2	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82666-12380	Holder, Connector No.5 - CONNECTOR NO.4	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82671-12250	Block, Junction, No.2	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82671-12260	Block, Junction	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82673-12130	Bracket, Junction Block	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82673-12140	Bracket, Junction Block	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
82817-12D10	Protector, Wiring Harness, No.10 - WIRING HARNESS, NO.13	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
90119-06390	BOLT WWASHER	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
90119-W0017	New Genuine Part	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
90159-70004	SCREW WWASHER	Wiring & Clamp ([02.2007 - ] INSTRUMENT PANEL (0702- )LHD)
