Search › Model › ADE157

ADE157

Toyota AURIS-COROLLA · 2007 · 4,834 parts · 268 categories

4,834 items

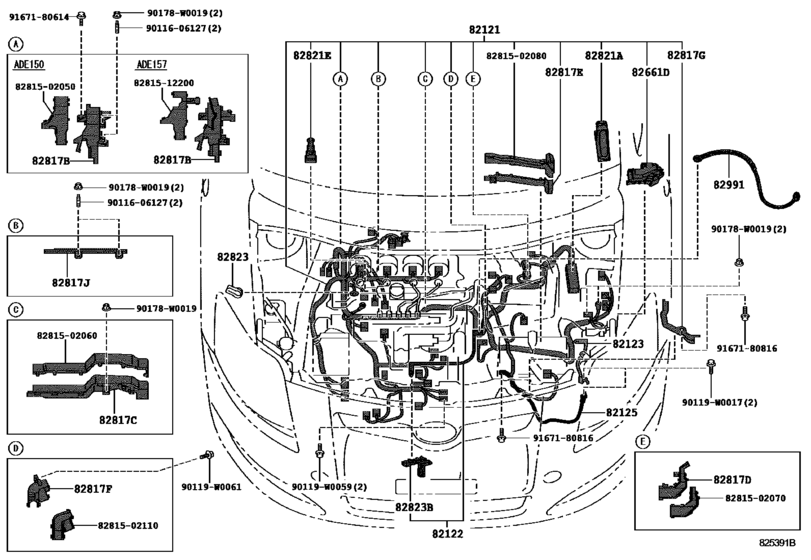

Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#) 37

#	OEM	Part name
82121	82121-02J20	Wire, Engine
82121	82121-02J22	Wire, Engine
82121	82121-02J21	Wire, Engine
82121	82121-02R20	Wire, Engine
82122	82122-02030	Wire, Engine, No.2
82122	82122-02090	Wire, Engine, No.2
82123	82123-02280	Wire, Engine, No.3
82123	82123-02410	Wire, Engine, No.3
82125	82125-02020	Wire, Transmission
82661	82661-12280	Cover, Relay Block, No.2
82817	82817-05490	Protector, Wiring Harness, No.3
82817	82817-12B80	Protector, Wiring Harness, No.3
82817	82817-02370	Protector, Wiring Harness, No.4
82817	82817-02380	Protector, Wiring Harness, No.3
82817	82817-02390	Protector, Wiring Harness, No.4 - WIRING HARNESS, NO.6
82817	82817-02420	Protector, Wiring Harness, No.5 - WIRING HARNESS, NO.7
82817	82817-02440	Protector, Wiring Harness, No.3 - WIRING HARNESS, NO.8
82821	82821-12560	Cover, Connector
82821	82821-20370	Cover, Connector
82823	82823-22050	Cap, Terminal, No.1
82823	82823-20090	Cap, Terminal, No.1 - TERMINAL, NO.3
82823	82823-20100	Cap, Terminal, No.2 - TERMINAL, NO.3
82991	82991-12120	Wire, Fusible Link Repair
90119	90119-W0017	New Genuine Part
90119	90119-06390	BOLT WWASHER
90119	90119-W0059	New Genuine Part
90119	90119-W0061	New Genuine Part
90178	90178-W0019	Nut, Cap(For Cylinder Head Cover)
8281502050	82815-02050	Cover, Wiring Harness Protector
8281502060	82815-02060	Cover, Wiring Harness Protector
8281502070	82815-02070	Cover, Wiring Harness Protector, No.7
8281502080	82815-02080	Cover, Wiring Harness Protector No.5 - WIRING HARNESS PROTECTOR, NO.8
8281502110	82815-02110	Cover, Wiring Harness Protector, No.8 - WIRING HARNESS PROTECTOR, NO.9
8281512200	82815-12200	Cover, Wiring Harness Protector
9011606127	90116-06127	Bolt, Stud(For Oil Pan)
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9167180816	91671-80816	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
82121-02J20	Wire, Engine	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82121-02J21	Wire, Engine	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82121-02J22	Wire, Engine	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82121-02R20	Wire, Engine	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82122-02030	Wire, Engine, No.2	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82122-02090	Wire, Engine, No.2	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82123-02280	Wire, Engine, No.3	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82123-02410	Wire, Engine, No.3	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82125-02020	Wire, Transmission	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82661-12280	Cover, Relay Block, No.2	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82815-02050	Cover, Wiring Harness Protector	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82815-02060	Cover, Wiring Harness Protector	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82815-02070	Cover, Wiring Harness Protector, No.7	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82815-02080	Cover, Wiring Harness Protector No.5 - WIRING HARNESS PROTECTOR, NO.8	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82815-02110	Cover, Wiring Harness Protector, No.8 - WIRING HARNESS PROTECTOR, NO.9	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82815-12200	Cover, Wiring Harness Protector	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82817-02370	Protector, Wiring Harness, No.4	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82817-02380	Protector, Wiring Harness, No.3	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82817-02390	Protector, Wiring Harness, No.4 - WIRING HARNESS, NO.6	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82817-02420	Protector, Wiring Harness, No.5 - WIRING HARNESS, NO.7	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82817-02440	Protector, Wiring Harness, No.3 - WIRING HARNESS, NO.8	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82817-05490	Protector, Wiring Harness, No.3	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82817-12B80	Protector, Wiring Harness, No.3	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82821-12560	Cover, Connector	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82821-20370	Cover, Connector	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82823-20090	Cap, Terminal, No.1 - TERMINAL, NO.3	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82823-20100	Cap, Terminal, No.2 - TERMINAL, NO.3	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82823-22050	Cap, Terminal, No.1	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
82991-12120	Wire, Fusible Link Repair	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
90116-06127	Bolt, Stud(For Oil Pan)	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
90119-06390	BOLT WWASHER	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
90119-W0017	New Genuine Part	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
90119-W0059	New Genuine Part	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
90119-W0061	New Genuine Part	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
90178-W0019	Nut, Cap(For Cylinder Head Cover)	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
91671-80816	Bolt (For Transmission Control Cable Bracket)	Wiring & Clamp ([02.2007 - 03.2009] ENGINE (0702-0903)ADE15#)
