ADE157

Toyota AURIS-COROLLA · 2007 · 4,834 parts · 268 categories

4,834 items

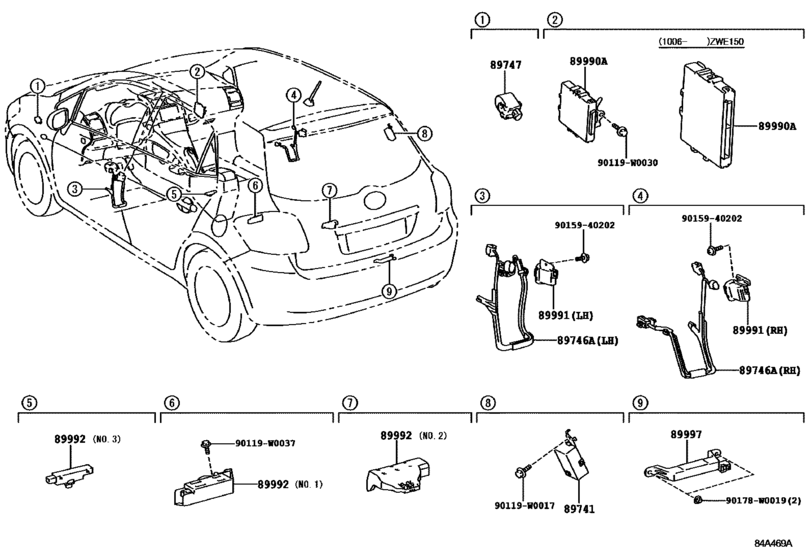

Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD) 26

#	OEM	Part name
89741	89740-02010	Receiver, Door Control
89741	89740-02011	Receiver, Door Control
89741	89741-02100	Receiver, Door Control
89746	89746-02010	Harness, Electrical Key Wire
89746	89746-02020	Harness, Electrical Key Wire
89746	89746-02030	Harness, Electrical Key Wire
89746	89746-02040	Harness, Electrical Key Wire
89747	89747-52010	Buzzer, Wireless Door Lock
89990	89990-02010	Computer Assy, Smart Key
89990	89990-02011	Computer Assy, Smart Key
89990	89990-02040	Computer Assy, Smart Key
89990	89990-02070	Computer Assy, Smart Key
89991	89991-30040	Oscillator, Door Electrical Key
89991	89991-30050	Oscillator, Door Electrical Key
89992	89992-02020	Oscillator, Indoor Electrical Key
89992	89992-02030	Oscillator, Indoor Electrical Key
89992	89992-0D010	Oscillator, Indoor Electrical Key
89992	89992-0D020	Oscillator, Indoor Electrical Key
89997	89997-30070	Antenna, Electrical Key
89997	89997-41010	Antenna, Electrical Key
90119	90119-W0017	New Genuine Part
90119	90119-06390	BOLT WWASHER
90119	90119-W0030	New Genuine Part
90119	90119-W0037	Bolt, W/washer
90178	90178-W0019	Nut, Cap(For Cylinder Head Cover)
9015940202	90159-40202	SCREW WWASHER

OEM	Part name	Category
89740-02010	Receiver, Door Control	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
89740-02011	Receiver, Door Control	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
89741-02100	Receiver, Door Control	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
89746-02010	Harness, Electrical Key Wire	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
89746-02020	Harness, Electrical Key Wire	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
89746-02030	Harness, Electrical Key Wire	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
89746-02040	Harness, Electrical Key Wire	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
89747-52010	Buzzer, Wireless Door Lock	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
89990-02010	Computer Assy, Smart Key	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
89990-02011	Computer Assy, Smart Key	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
89990-02040	Computer Assy, Smart Key	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
89990-02070	Computer Assy, Smart Key	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
89991-30040	Oscillator, Door Electrical Key	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
89991-30050	Oscillator, Door Electrical Key	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
89992-02020	Oscillator, Indoor Electrical Key	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
89992-02030	Oscillator, Indoor Electrical Key	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
89992-0D010	Oscillator, Indoor Electrical Key	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
89992-0D020	Oscillator, Indoor Electrical Key	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
89997-30070	Antenna, Electrical Key	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
89997-41010	Antenna, Electrical Key	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
90119-06390	BOLT WWASHER	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
90119-W0017	New Genuine Part	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
90119-W0030	New Genuine Part	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
90119-W0037	Bolt, W/washer	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
90159-40202	SCREW WWASHER	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
90178-W0019	Nut, Cap(For Cylinder Head Cover)	Wireless Door Lock ([03.2009 - ] STARTING SYSTEM-PUSH BUTTON (0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#. .LHD..SOL ; (1006- )ZWE150..LHD)
