ADE157

Toyota AURIS-COROLLA · 2007 · 4,834 parts · 268 categories
ADE157 ×

← Back to categories

4,834 items

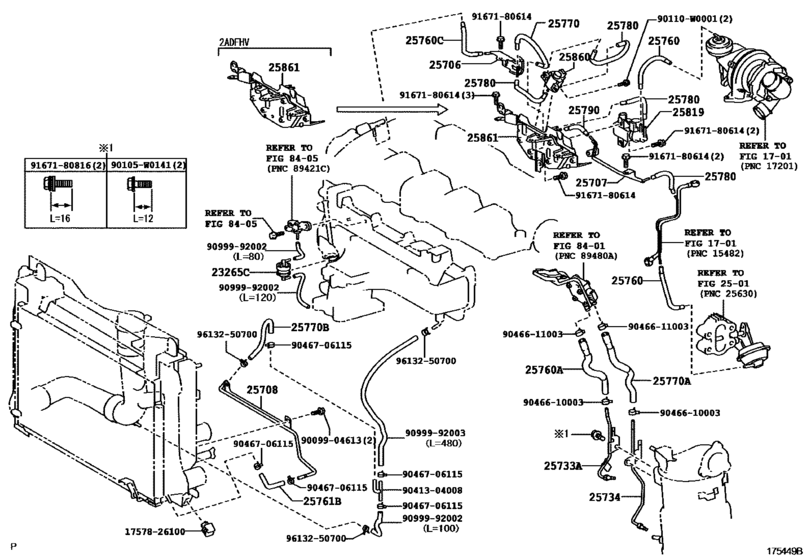

Vacuum Piping ([02.2007 - 03.2009] (0702-0903)1ADFTV,2ADFHV..DCRL) 46
#OEMPart name
23265 90917-11036 Filter, Gas, No.1
25706 25706-26010 Pipe Sub-Assy, Vacuum Transmitting, No.1
25707 25707-26010 Pipe Sub-Assy, Vacuum Transmitting, No.2
25708 25736-0R010 Pipe Sub-Assy, Vacuum Transmitting, No.3
25708 25736-0R020 Pipe Sub-Assy, Vacuum Transmitting, No.3
25708 25736-26030 Pipe Sub-Assy, Vacuum Transmitting, No.3
25733 25733-26010 Pipe, Vacuum, No.1
25733 25733-26011 Pipe, Vacuum, No.1
25733 25733-26040 Pipe, Vacuum, No.1
25734 25734-26010 Pipe, Vacuum, No.2
25734 25734-26040 Pipe, Vacuum, No.2
25760 25760-26021 Hose Assy, Vacuum Transmitting
25760 25760-26080 Hose Assy, Vacuum Transmitting
25760 25760-26160 Hose Assy, Vacuum Transmitting
25760 25760-26120 Hose Assy, Vacuum Transmitting, No.3
25760 25760-26200 Hose Assy, Vacuum Transmitting, No.3
25760 25760-26201 Hose Assy, Vacuum Transmitting, No.3
25761 25761-26030 Hose, Vaccum Transmitting, No.1
25770 25770-26020 Hose Assy, Vacuum Transmitting, No.2
25770 25770-26171 Hose Assy, Vacuum Transmitting, No.2
25770 25770-26172 Hose Assy, Vacuum Transmitting, No.2
25770 25770-26050 Hose Assy, Vacuum Transmitting, No.2
25770 25770-26110 Hose Assy, Vacuum Transmitting, No.2
25770 25770-26071 Hose Assy, Vacuum Transmitting, No.3
25780 25780-26011 Hose Assy, Vacuum Transmitting, No.3
25790 25790-26011 Hose Assy, Vacuum Transmitting, No.4
25819 25819-0R011 Valve Assy, Vacuum Regulating
25819 25819-0R012 Valve Assy, Vacuum Regulating
25860 25860-0R010 Valve Assy, Vacuum Switching, No.1
25860 25860-0R011 Valve Assy, Vacuum Switching, No.1
25861 25861-26050 Bracket, Vacuum Switching Valve
25861 25861-26070 Bracket, Vacuum Switching Valve
90105 90105-W0141 New Genuine Part
90110 90110-W0001 New Genuine Part
1757826100 17578-26100 Clamp, Pipe
9009904613 90099-04613 New Genuine Part
9041304008 90413-04008 Way, 3(For Transfer Breather Hose)
9046610003 90466-10003 New Genuine Part
9046611003 90466-11003 Clamp Or Clip(For Radiator Reserve Tank Hose)
9046611003 90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1)
9046706115 90467-06115 Clip(For Vacuum Hose)
9099992002 90999-92002 Air Hose (300 mm)
9099992003 90999-92003 Hose, Breather (For Transfer Case)
9167180614 91671-80614 Bolt (For Transmission Control Cable Bracket)
9167180816 91671-80816 Bolt (For Transmission Control Cable Bracket)
9613250700 96132-50700 Clip(Vaccum Transmitting Hose No.1)
