Search › Model › ADE157

ADE157

Toyota AURIS-COROLLA · 2007 · 4,834 parts · 268 categories

4,834 items

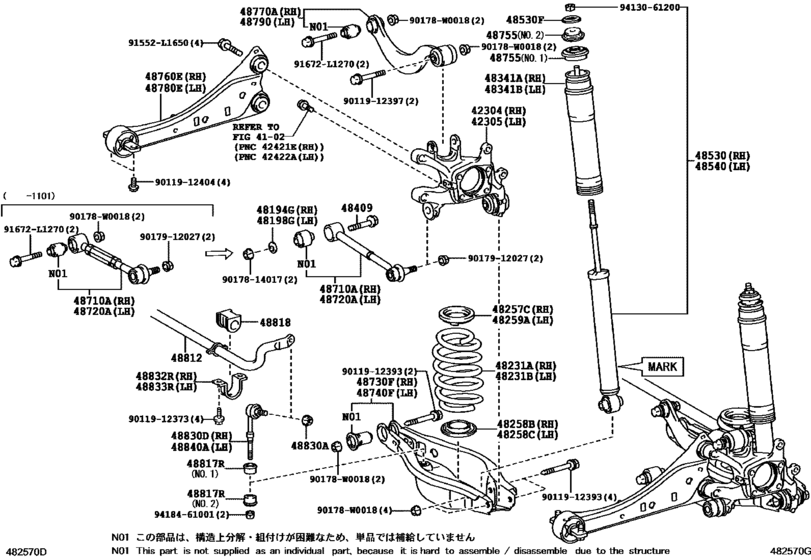

Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157) 51

#	OEM	Part name
42304	42304-12240	Carrier Sub-Assy, Rear Axle, Rh
42305	42305-12240	Carrier Sub-Assy, Rear Axle, Lh
48194	48198-42010	Cam, Rear Suspension Camber Adjust, No.1 Rh
48231	48231-02590	Spring, Coil, Rear Rh
48257	48257-0D010	Insulator, Rear Coil Spring, Upper Rh
48258	48258-05020	Insulator, Rear Coil Spring, Lower Rh
48258	48258-12050	Insulator, Rear Coil Spring, Lower Rh
48341	48341-02080	Bumper, Rear Spring, No.1 Rh
48409	48409-42030	Cam Sub-Assy, Rear Suspension Toe Adjust
48530	48530-09N90	Absorber Assy, Shock, Rear Rh
48530	48530-09R20	Absorber Assy, Shock, Rear Rh
48530	48530-09R21	Absorber Assy, Shock, Rear Rh
48530	90948-02159	Retainer, Cushion, No.1(For Front Shock Absorber)
48710	48710-05080	Arm Assy, Rear Suspension, No.1 Rh
48710	48710-05090	Arm Assy, Rear Suspension, No.1 Rh
48710	48710-12270	Arm Assy, Rear Suspension, No.1 Rh
48710	48710-72010	Arm Assy, Rear Suspension, No.1 Rh
48730	48730-05070	Arm Assy, Rear Suspension, No.2 Rh
48730	48730-12240	Arm Assy, Rear Suspension, No.2 Rh
48740	48740-05060	Arm Assy, Rear Suspension, No.2 Lh
48755	48755-02080	Support, Rear Suspension
48755	48755-02090	Support, Rear Suspension
48760	48760-05010	Arm Assy, Trailing, Rear
48760	48760-12010	Arm Assy, Trailing, Rear - Right side
48770	48770-12010	Arm Assy, Upper Control, Rear Rh
48780	48780-05030	Arm Assy, Trailing, Rear
48780	48780-12140	Arm Assy, Trailing, Rear - Left side
48812	48812-05160	Bar, Stabilizer, Rear
48812	48812-12380	Bar, Stabilizer, Rear
48817	48817-05010	Cushion, Stabilizer(For Rear)
48817	48817-05020	Cushion, Stabilizer(For Rear)
48817	48817-12020	Cushion, Stabilizer(For Rear)
48817	48817-12030	Cushion, Stabilizer(For Rear)
48818	48818-05120	Bush, Stabilizer, Rear
48818	48818-12280	Bush, Stabilizer, Rear
48830	94151-21241	Nut(For Front Stabilizer Link)
48830	48830-05030	Link Assy, Rear Stabilizer, Rh
48830	48830-12070	Link Assy, Rear Stabilizer, Rh
48832	48832-05030	Bracket, Rear Stabilizer Bar, No.1 Rh
48832	48832-12050	Bracket, Rear Stabilizer Bar, No.1 Rh
90178	90178-W0018	New Genuine Part
91552	91552-L1650	Bolt
91672	91672-L1270	New Genuine Part
9011912373	90119-12373	New Genuine Part
9011912393	90119-12393	BOLT WWASHER
9011912397	90119-12397	New Genuine Part
9011912404	90119-12404	New Genuine Part
9017814017	90178-14017	NUT FLANGE
9017912027	90179-12027	Nut, Castle (For Front Lower Ball Joint Setting)
9413061200	94130-61200	Nut
9418461001	94184-61001	Nut(For Front Stabilizer Bar)

OEM	Part name	Category
42304-12240	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
42305-12240	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48198-42010	Cam, Rear Suspension Camber Adjust, No.1 Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48231-02590	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48257-0D010	Insulator, Rear Coil Spring, Upper Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48258-05020	Insulator, Rear Coil Spring, Lower Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48258-12050	Insulator, Rear Coil Spring, Lower Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48341-02080	Bumper, Rear Spring, No.1 Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48409-42030	Cam Sub-Assy, Rear Suspension Toe Adjust	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48530-09N90	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48530-09R20	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48530-09R21	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48710-05080	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48710-05090	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48710-12270	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48710-72010	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48730-05070	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48730-12240	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48740-05060	Arm Assy, Rear Suspension, No.2 Lh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48755-02080	Support, Rear Suspension	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48755-02090	Support, Rear Suspension	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48760-05010	Arm Assy, Trailing, Rear	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48760-12010	Arm Assy, Trailing, Rear - Right side	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48770-12010	Arm Assy, Upper Control, Rear Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48780-05030	Arm Assy, Trailing, Rear	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48780-12140	Arm Assy, Trailing, Rear - Left side	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48812-05160	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48812-12380	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48817-05010	Cushion, Stabilizer(For Rear)	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48817-05020	Cushion, Stabilizer(For Rear)	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48817-12020	Cushion, Stabilizer(For Rear)	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48817-12030	Cushion, Stabilizer(For Rear)	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48818-05120	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48818-12280	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48830-05030	Link Assy, Rear Stabilizer, Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48830-12070	Link Assy, Rear Stabilizer, Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48832-05030	Bracket, Rear Stabilizer Bar, No.1 Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
48832-12050	Bracket, Rear Stabilizer Bar, No.1 Rh	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
90119-12373	New Genuine Part	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
90119-12393	BOLT WWASHER	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
90119-12397	New Genuine Part	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
90119-12404	New Genuine Part	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
90178-14017	NUT FLANGE	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
90178-W0018	New Genuine Part	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
90179-12027	Nut, Castle (For Front Lower Ball Joint Setting)	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
90948-02159	Retainer, Cushion, No.1(For Front Shock Absorber)	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
91552-L1650	Bolt	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
91672-L1270	New Genuine Part	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
94130-61200	Nut	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
94151-21241	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
94184-61001	Nut(For Front Stabilizer Bar)	Rear Spring & Shock Absorber ([02.2007 - ] (0702- )ADE157)
